Yl Cast Iron Body Single Phase Two Capacitors AC Motors

Name: Yl Cast Iron Body Single Phase Two Capacitors AC Motors
Brand: all-electronics-online.com
SKU: 629382955
Availability: InStock
Rating: 4.4 (108 reviews)

Price:	US $ 49/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

YL series single phase capacitor start and capcitor running electric motor suitable for air compressor, water pump and other equipment requiring high torque.
This series electric motor features by its high starting performance, overload capability, power factor and efficiency, low noise, light weight, little shape and easy maintance

Power: 0.25KW-5.5KW
IP44, IP54, IP55
IN. C: B, F
Material: Cast Iron or Aluminium body

Type	Power		Current (A)	Power Factor (cosφ )	Eff (%)	Speed (r/min)	Starting Torque / Rated Torque	Starting Current	Max Toque / Rated Torque
Type	Hp	kW	Current (A)	Power Factor (cosφ )	Eff (%)	Speed (r/min)	Starting Torque / Rated Torque	Starting Current	Max Toque / Rated Torque
YL7112	1/4	0.18	1.23	0.93	66	2800	1.7	8.1	1.6
YL7122	1/3	0.25	1.53	0.93	67	2800	1.8	9.9	1.6
YL7132	1/2	0.37	2.73	0.92	67	2800	1.8	16	1.8
YL8012	1/2	0.37	2.73	0.92	67	2800	1.8	16	1.8
YL8022	3/4	0.55	3.88	0.92	70	2800	1.8	21	1.8
YL8032	1	0.75	4.92	0.95	73	2800	1.8	29	1.8
YL8042	1.5	1.1	7.01	0.95	75	2800	1.8	40	1.8
YL90S-2	1	0.75	4.92	0.95	73	2800	1.8	29	1.8
YL90S-2	1.5	1.1	7.01	0.95	75	2800	1.8	40	1.8
YL90S-2	2	1.5	9.44	0.95	76	2800	1.8	55	1.8
YL 90L-2	3	2.2	13.7	0.95	77	2800	1.8	80	1.8
YL 100L-2	4	3	18.4	0.95	79	2800	1.8	110	1.8
YL 112M-2	5	3.7	22.2	0.95	80	2800	1.7	160	1.8
YL7114	1/4	0.18	1.29	0.92	63	1400	1.7	7.4	1.6
YL7124	1/3	0.25	2	0.92	62	1400	1.8	12	1.8
YL7134	1/2	0.37	2.8	0.92	65	1400	1.8	16	1.8
YL8014	1/2	0.37	2.8	0.92	65	1400	1.8	12	1.6
YL8024	3/4	0.55	3.94	0.92	69	1400	1.8	21	1.8
YL8034	1	0.75	5.22	0.92	71	1400	1.8	29	1.6
YL90S-4	1	0.75	5.22	0.92	71	1400	1.8	29	1.6
YL90S-4	1.5	1.1	7.31	0.95	72	1400	1.8	40	1.6
YL 90L-4	2	1.5	9.69	0.95	74	1400	1.8	55	1.6
YL 100L2-4	4	3	18.4	0.95	78	1400	1.8	110	1.8

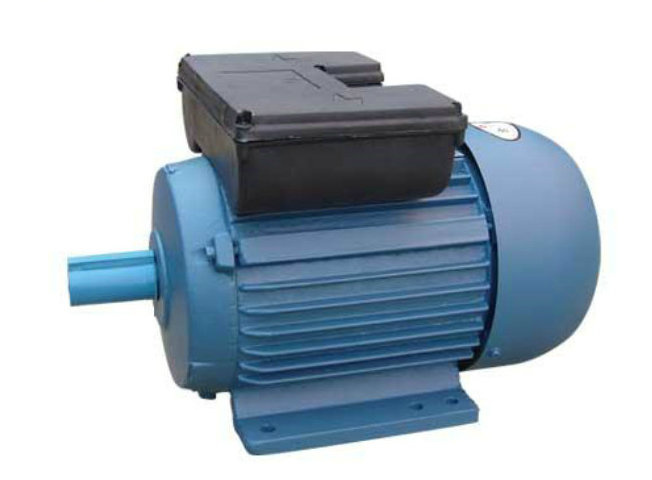

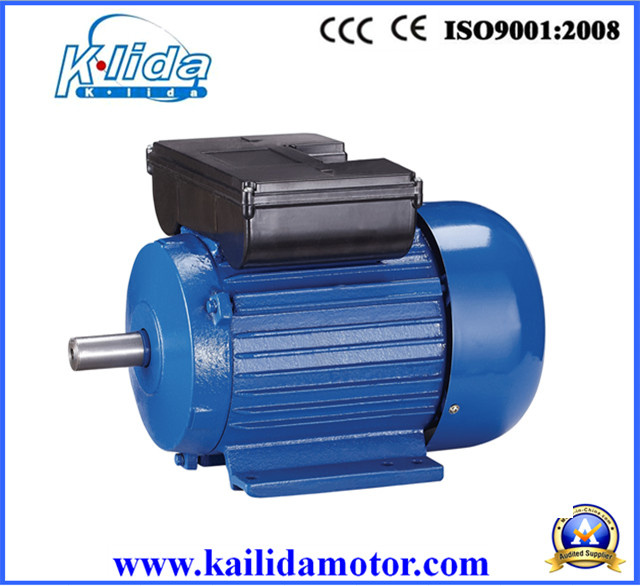

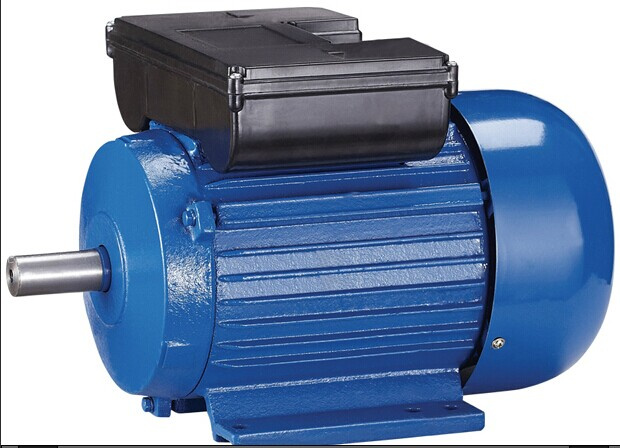

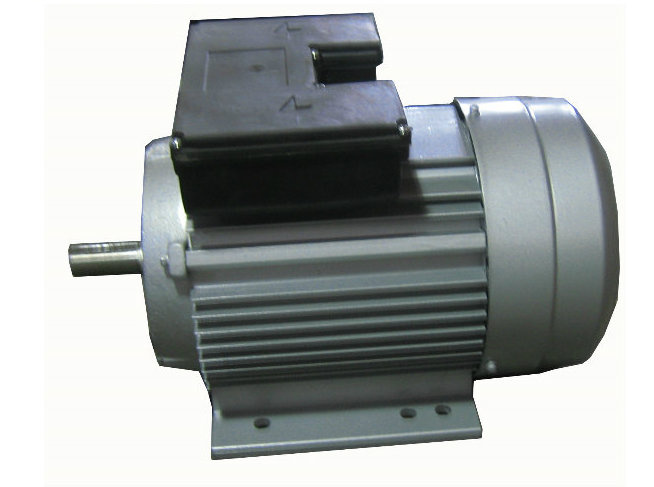

MOTOR PICTURES

Prod Model:	YL90L-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Voltage:	220V
Frequency:	50Hz
Protection Class:	IP44
Im:	B3
House Material:	Cast Iron & Aluminium
Application:	Power Tools
Operating Speed:	Constant Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Starting Mode:	Direct on-line Starting
Species:	Single Phase
Certification:	CE
Brand:	K.Lida
