General Decription:

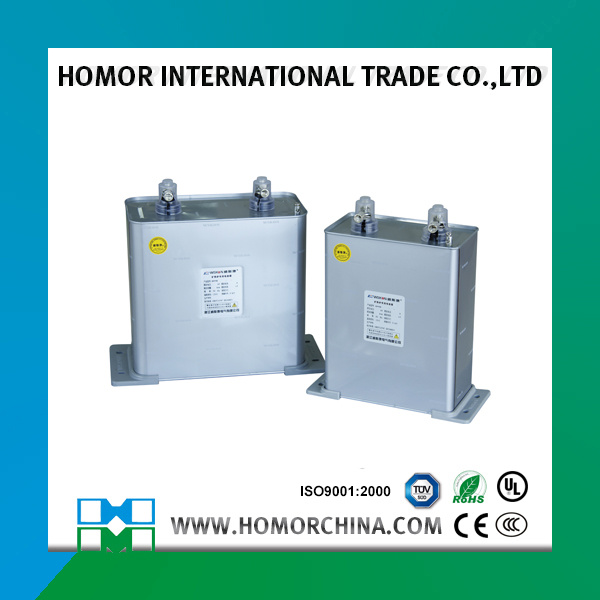

Our self-healing type low voltage shunt capacitor, applied the advanced Zn-Al complexes metallized film, adopted foreign advanced production technology techniques and international IEC60831-1(1996) standards. The products is mainly suitable for low voltage electric network to improve power factor, reduce reactive loss and improve the voltage quality.
Featurns:
1- Small volume, light weight: it is only 1/4 and 1-5 of the weight and volume of the outdated products respectively
2- Low loss: with the actual lossless than 0.1, little radiation, low temperature rise and good energy conservation effect
3- Excellent self-healing performance: when a part of the isolation is fed through due to the over voltage, it is capable of self-healing so as to continue the operation, the reliability is improved greatly
4- Safety: Equipped with self-discharging resistant and safety devices inside, the inner discharging resistant can make the attached electric discharged; when there is wrong with the capacitor, the fuse equipment can cut out the electric power so that no more trouble with the capacitor, safety and reliable.
5- Without oil leakage: this product adopted advanced half-solid soak material drop melting point higher than 70 degree, avoid leakage during operation and protect the envirament the capacitor will not no use since the leakage.
Technical Parameter:
Rated voltage | 250-690VAC |
Rated capacitance | 1-100KVAR |
capacitance tolerance | -5 - +10% |
Tangent of the los angle | ≤0.15% |
With stand voltage of case between phase | 2.15Un.2s |
With stand voltage of case between phase | 3KV(AC)10s&3.6KV(AC)2s |
Insulation | 500VDC among the phases 1 min more than 100mΩ |
Max allowable voltage | Rated voltage 110% |
Max allowable current | Rated voltage 130% |
Self-dischargeing characteristic | switch off the power supply for 3 min, the residual voltage less than 50V |

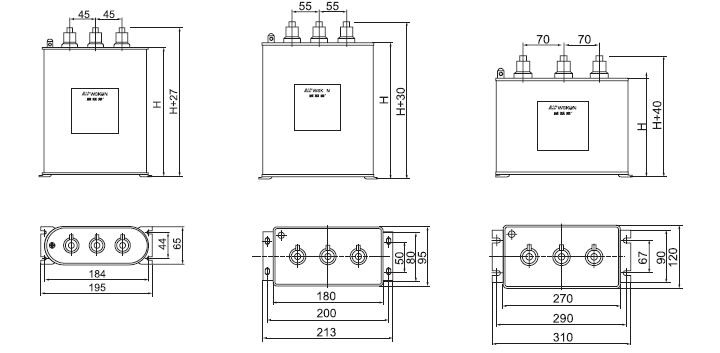

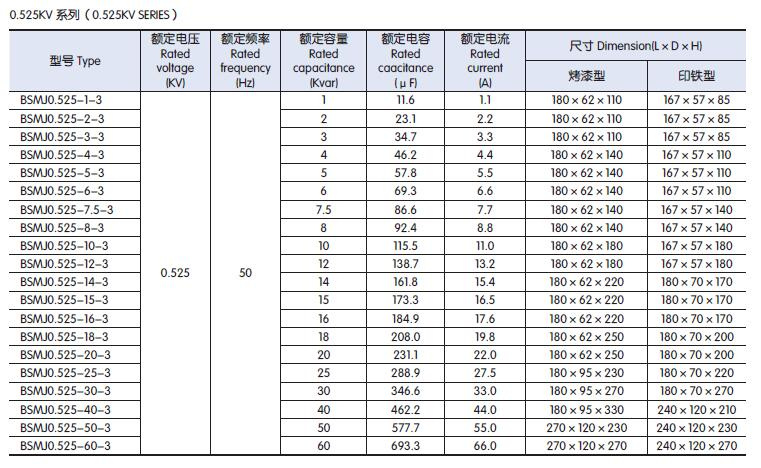

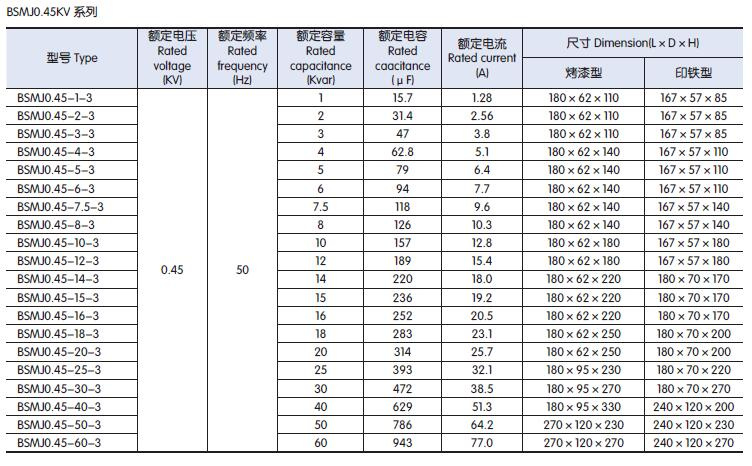

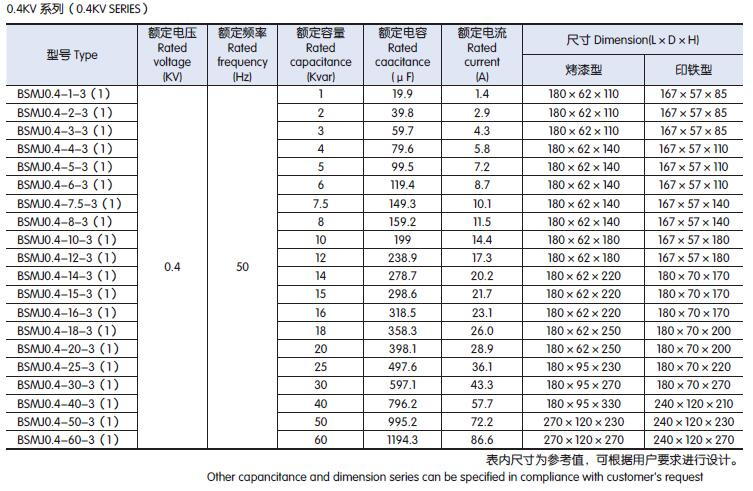

Model and dimension:
HOMOR(hemao) in Chinese means Gracious & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and have gained good reputation in the market.
HOMOR specialize in manufacturing high quality power capacitor like BSMJ/BKMJ power capacitor, CBB60 motor running capacitor, CBB65 motor running capacitor, . To improve our research and high technology ability, we cooperated with China Electronics Technology Group which was Located in Beijing in 2011, now we have established PCB & electronic research center and advanced testing lab.
HOMOR is growing fast through year's great effort, . We are working with reliable distributors with online & offline network throughout China. We look forward to expanding our business with new agent and customer for our mutual benefit with each other.
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with good quality at the reasonable price.
In strict accordance with GB/T12747-2004, IEC60831-1: 1996 Standard, its main products have gained the CE, CQC, CCC, UL certificate. Our capacitor has sales branches and distributors throughout China, and exports to more than ten countries including the United States, Canada, Brazil, Argentina, Russia, Bangladesh, South Korea, Malaysia and Singapore. Our capacitors are well-received by overseas users and has gained both economic and social benefits.
