Time Delay Swivel Photo Cell Wire-in Photo Electric Switch Photocontrol

Name: Time Delay Swivel Photo Cell Wire-in Photo Electric Switch Photocontrol
Brand: all-electronics-online.com
SKU: 831473185
Availability: InStock
Rating: 5 (99 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	106av
Type:	Automatic Sensor Switch

Product Description

Basic Specification:

Rated Loading	1000W Tungsten 1800VA ballast
Ambient Temperature	-40ºC ~ +70ºC
Power consumption	1.5VA
Rated Voltage	100-120VAC, 200-240VAC 50/60Hz
Voltage	90-260V

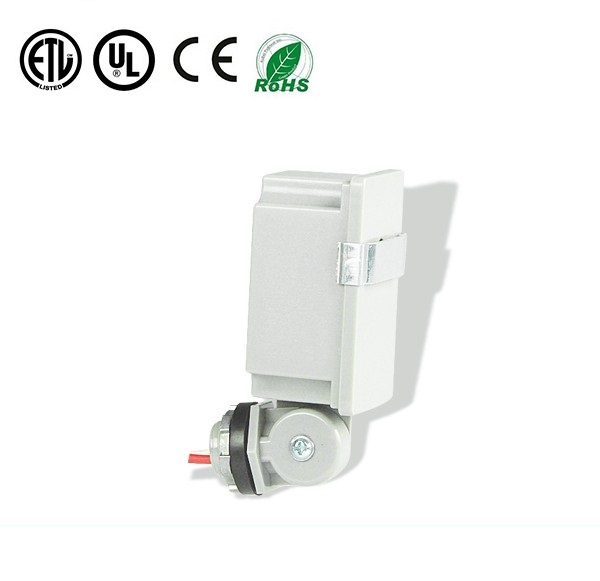

Product Pictures:

Specifications:

Item No.	JL-106A, 106B
Rated Voltage	120VAC (A), 220VAC (B)
Applicable Voltage	110-130VAC (A), 200-240VAC (B)
Rated Frequency	50/60HZ
Rated Loadings	2000WTungsten (A) , 2000VA Ballast (B)
On-Off Levels	10-20Lx On(Dusk); 30-60Lx Off(Dawn)
Ambient Temp	-40ºC~ +70ºC
Related Humidity	96%
Power Consumption	1.5VA MAX.
Leads Length	150mm or Customer request
Electrical Life	6500 cycles

Installation:

Disconnect power,
place screw thread of the SWITCH in knockout hole and fasten with rubber gasket and Zinc alloy lock-nut.

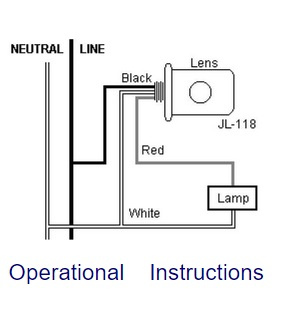

Wire according to the diagram in right hand.
Slide the mounted adjusting metal strip to have preferred On/Off levels, if necessary.
Do not install the switch with the Photocell facing artificial or reflected light.

This will cause the unit to cycle on and off at night.
