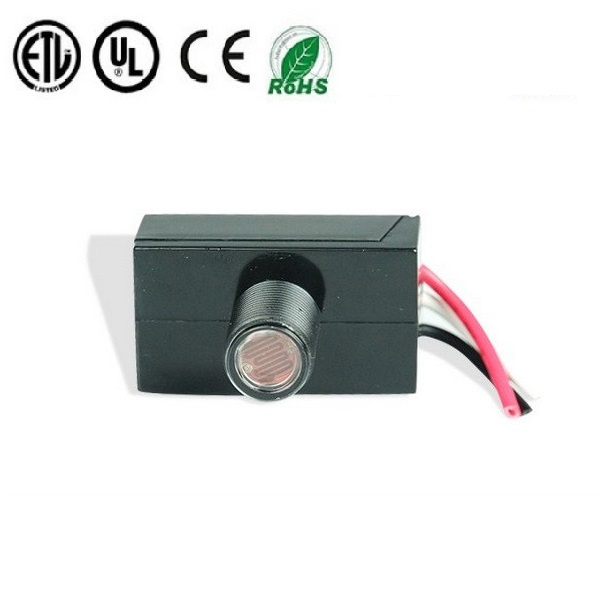

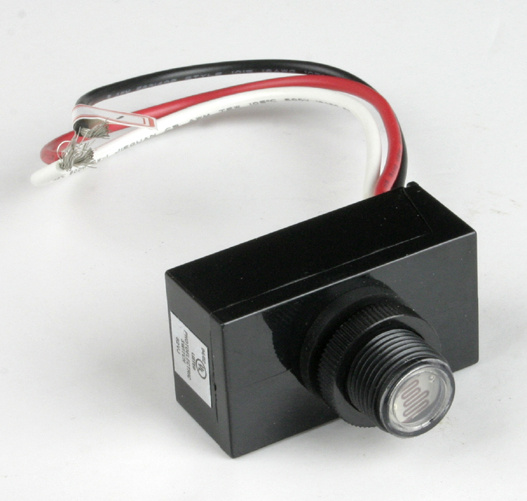

Dusk to Dawn Photocell Photoeye Sensor Switch

Name: Dusk to Dawn Photocell Photoeye Sensor Switch
Brand: all-electronics-online.com
SKU: 815848765
Availability: InStock
Rating: 4.9 (57 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Basic Specification:

Rated Voltage	100-120VAC,200-240 50/60Hz
Rated Loading	500W TUNGSTEN 850VA BALLAST
Ambient Temperature	-40ºC ~ +70ºC
Power consumption	1.2W max.
Voltage	Customized

Product Pictures:

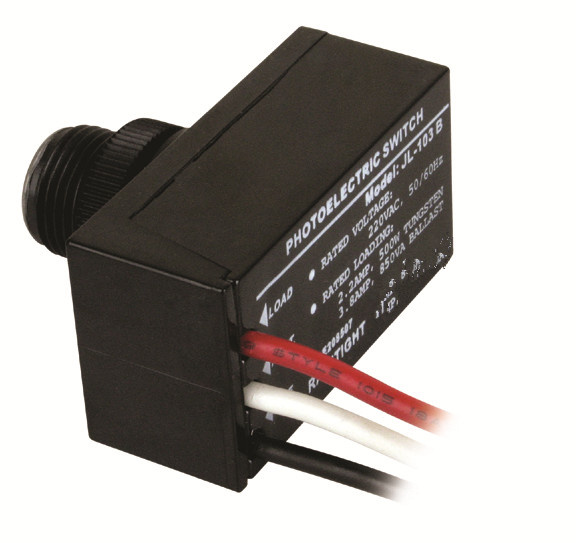

The photoelectric switch JL-103 is applicable to control the street lighting, passage lighting and doorway
lighting automatically in accordance with the ambient lighting level.
This product has been listed by UL Inc and is comply with the Standard for Non-industrial Photoelectric
Switches for Lighting Control UL773A.

Item No.	JL- 103A/JL- 103B/JL- 103C/JL- 103D
Rated Voltage	120VAC/240VAC/208VAC/277VAC
Rated Frequency	50/60HZ
Rated Loadings	500W TUNGSTEN 850VA BALLAST
Power consumption	1.2W max.
On-Off Levels	10~20Lx On 30~60Lx Off
Ambient Temp	-40ºC ~ +70ºC
Related Humidity	99%RH
Overall Dimensions	52.5(L) x 29(W) x 42(H)mm
Leads Length	180mm or Customer request (AWG#18)
Approx. Weight	32grs

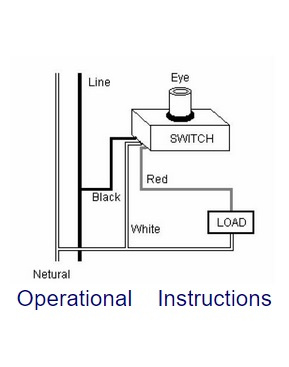

Installation:

Prod Model:	103
