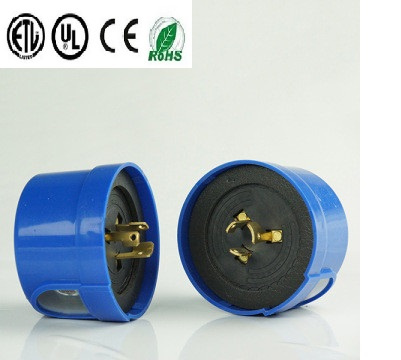

UL773 Fail-on Mode Electromagnetic DC Relay Switch Light Sensor Switch Automatic Control for LED Lighting

Name: UL773 Fail-on Mode Electromagnetic DC Relay Switch Light Sensor Switch Automatic Control for LED Lighting
Brand: all-electronics-online.com
SKU: 815789125
Availability: InStock
Rating: 4.4 (85 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Basic Specification:

Nominal Rated Voltage	105-305VAC
Applicable Volt Range	105-305VAC
Ambient Temperature	-40ºC ~ +70ºC
Rated Loading	50/60Hz
Rated Current	1000W Tungsten, 1800VA Ballast
Type	Photoelectric Switch
Rated Voltage	105-305VAC

Product Pictures:

Model	JL-205A	JL-205B	JL-205C
Rated Voltage	110-120VAC	220~240VAC	110-277VAC
Applicable Voltage Range	100-140VAC	200~260VAC	105-305VAC
Rated Frequency	50/60Hz
Rated Loading	1000W Tungsten, 1800VA Ballast
Power Consumption	1.5VA
On/Off Level	6Lx On 50Lx Off
Ambient Temp.	-40ºC ~ +70ºC
Related Humidity	99%
Overall Size	84(Dia.) x 66mm
Weight Approx.	85 grs

Installation:

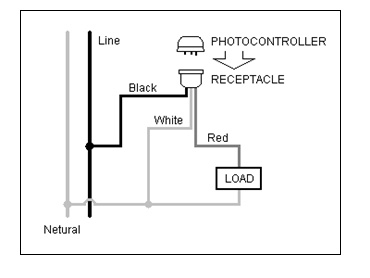

Disconnect power; wire the receptacle according to the diagram in right hand. Push the photocontroller on and twist it clockwise to lock it into the receptacle.
Install the photocontroller with the Photocell facing the NORTH direction as indicated on the top of the photocontroller. Adjust the receptacle position if necessary.

Prod Model:	205
