Top Selling Power Cable Current Terminal Block 4mm2
| Price: |
US $ 0.1-1/Piece |
| Min Order: |
100/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
JUT2-4 |
| Application: |
Transmission of Electrical Signals |
| Type: |
DIN Rail Screw Terminal Blocks |
| Material: |
Red Copper |
| Certification: |
Ce ; cUL |
| Brand: |
Utl |
Product Description

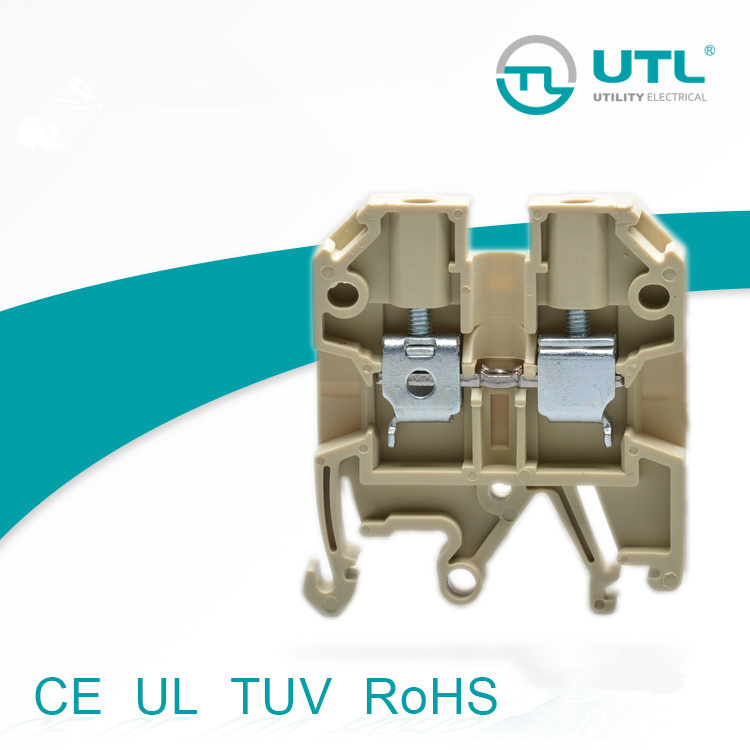

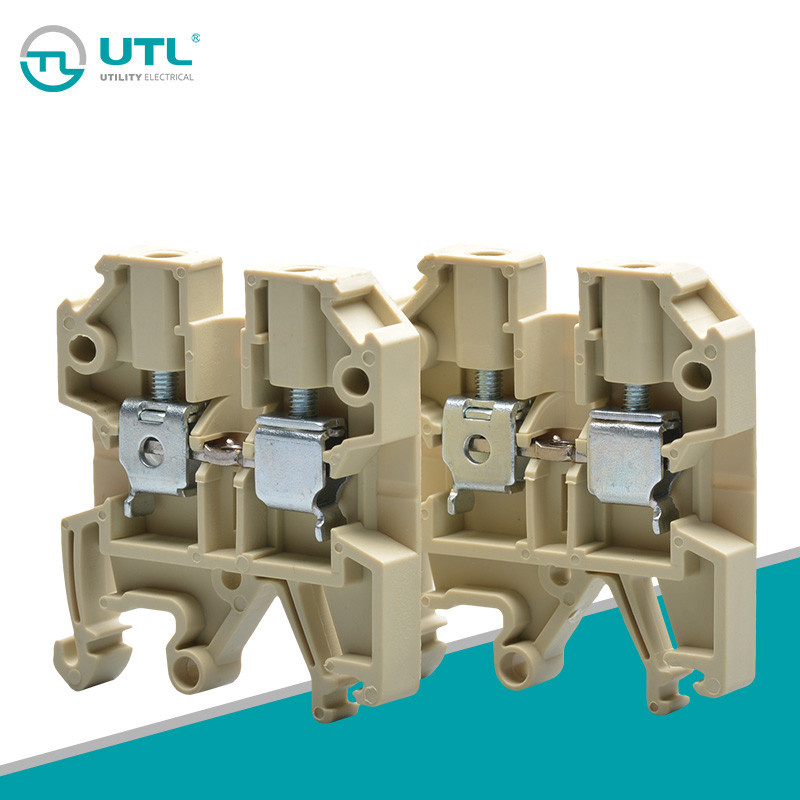

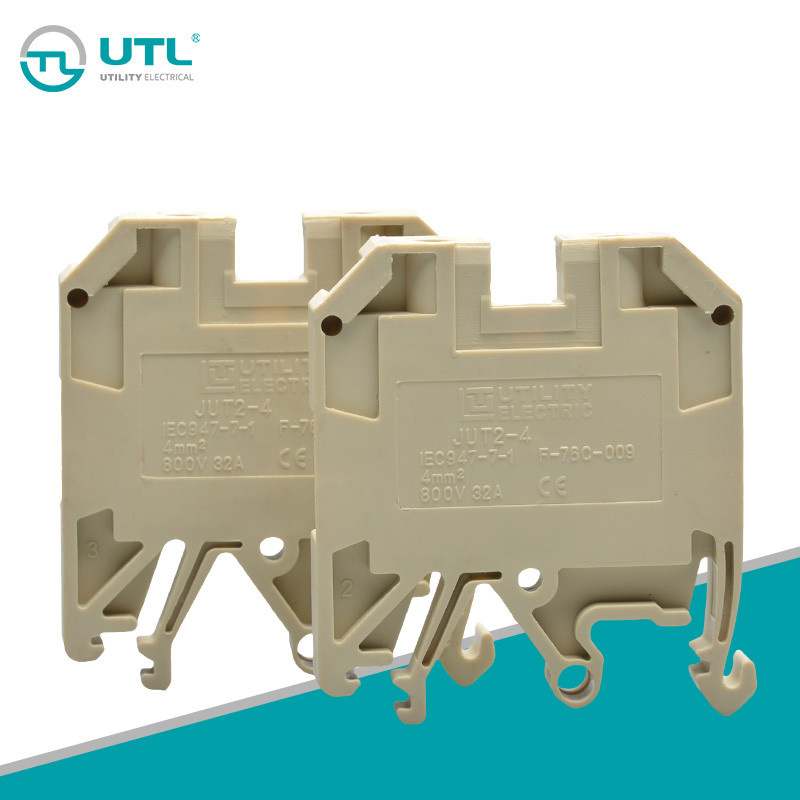

Top Selling Power Cable Current Terminal Block 4mm2
| Model No | JUT2-4 |
| Item name | JUT2 Screw Terminal Block Combination Type |
| Rated section | 4mm2 |
| Size | TH:6.5 W:42.0 H:47.5 H:52 |
| Voltage rating/Current rating | 800V/32A |
| Conductor Size | 24-14 AWG |
| Terminal | With general-purpose mounting feet,installed on tracks NS32-G or NS35-U |
| Central adaptor | Used at the center of terminal for transverse bridge connection,and screw head with insulation ring,which is divied into:2-digit,3-digit,5-digit and 10-digit |
| Insulating spacer | For electric separation of two neighboring adaptors,they may be inserted, afterwards,and not accupy any space of track |
| Cross connection adaptor | In 10 digit,detachable,with 10 screws,for cross connection by overleaping some terminals |
| Mark bar | Two chatacter styles,with horzontal and vertical arrangements,ten spaced |
| Payment term | A.Below US$300,western,paypal accepted B.Above US$3000,bank account |
| Certificate | TUV/CE/UL/VDE/RoHS/SGS/CCC/CQC approved standard |
| Logo | Customized logo are available as request |
Design ability | We can supply sample,OEM&ODM is welcome |
Features:
Terminal: With general-purpose mounting feet, can be installed on tracks NS32 or NS35.
Two ends on the top with white marking system to realize uniformed sign.
The insulating shell is made if imported engineering plastic-polyamide Nylon 66(PA66). It is of high
mechanical intensity, good electic property, and super flexibility.
General auxiliaries, such as the end plate, segment spacer, and spacer, are attached for terminal
with multiple sections.
Electric potential distribution is realized by eitherconnecting central adaptor to the center of terminal
or inserting a side adaptor to the cone jack.
Closed bolt leading hole will not only facilitate operation of screwd-rivers, also prevent the bolt from dropping out.

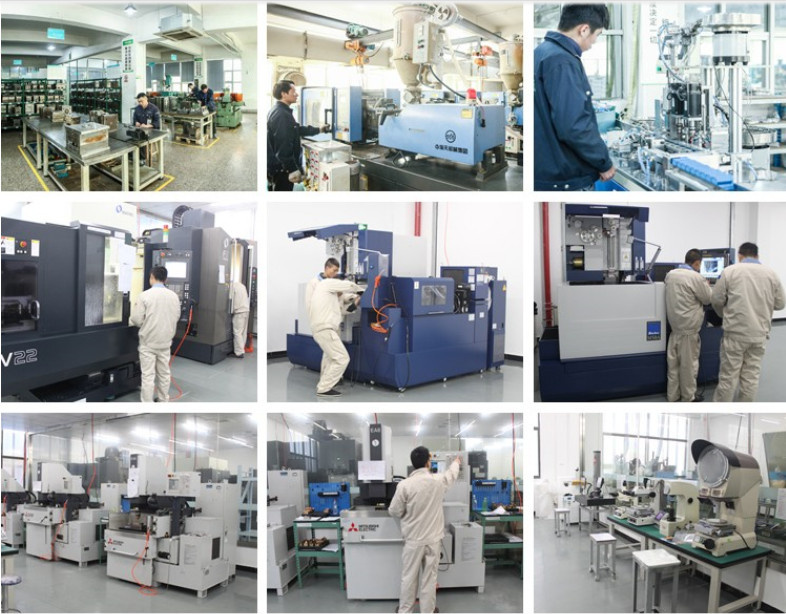

UTILITY electrical Co., Ltd. Was established in 1990, which is specialized in
The production of the terminal industry, distributors, is that the industry is
Strong in technology, growing rapidly, very large-scale enterprises. Since its
Establishment, the community's concern and support, through the joint
Efforts of all my colleagues, more than a decade UTILITY made remarkable
Achievements, from sales to the corporate image have been recognized by
Customers and industry peers and achieved gratifying brand.
The company has consistently adhered to the "people-oriented, market-
Oriented" business philosophy, product standards, UTILITY painstaking
Research of the IEC, UL, CSA, GB, CE, CCC and other international and
Domestic standards for terminals, and in accordance with these
Standards preparing their own more stringent corporate standards, from
The development, mold design, raw material procurement, production,
Plastic parts molding products, metal parts, to finished product assembly
And quality testing, packaging, shipping, etc.
The company produced dozens of series, thousands of specifications of
Products for our customers to provide a rich selection of product protection.
The company passed the ISO9001 quality management system certification,
The vast majority of products through the UL, CSA, CCC, CCS, CE
Certification, some products through the VDE certification, all products
Comply with RO environmental requirements.
