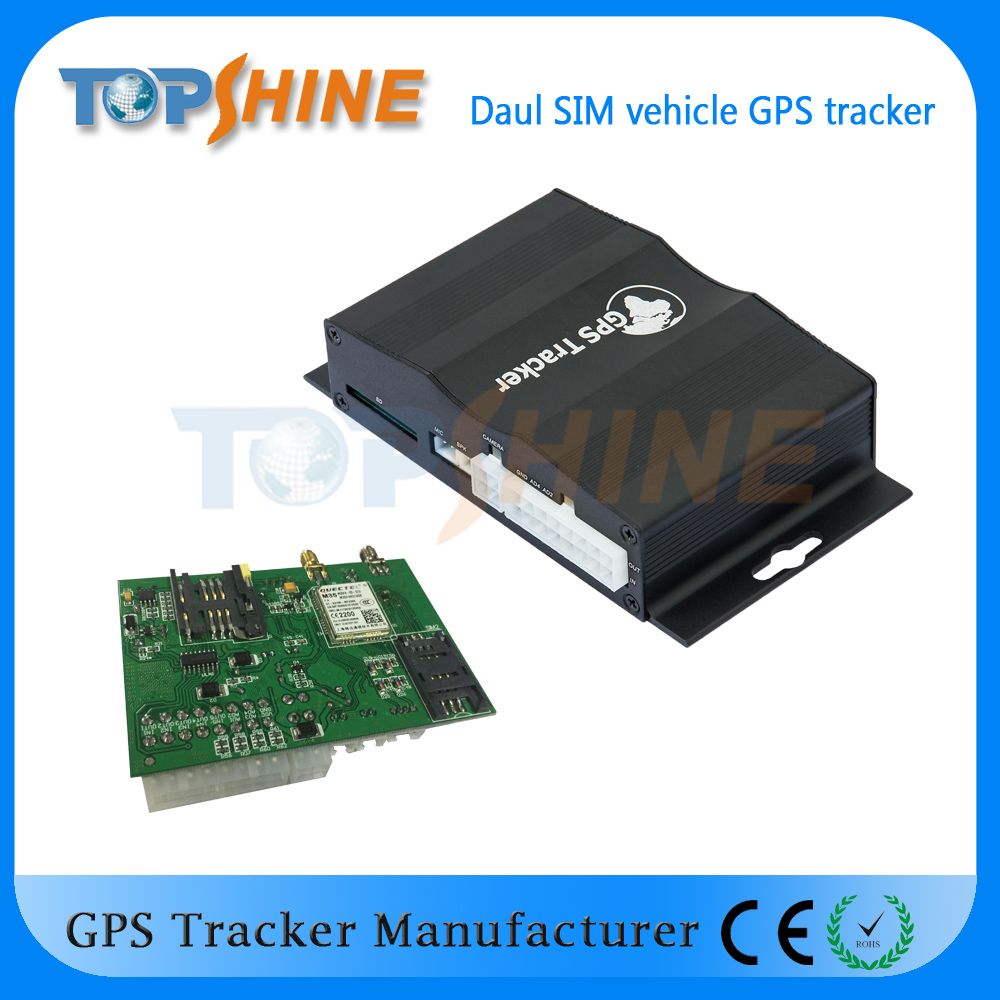

Topshine Multi 5 SIM Card GSM GPS Tracker with Camera RFID
Price: |
US $ 73-80/Set |
Min Order: |
1/Set |
Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Prod Model: |
Tracker VT1000 |
Two Way Locate: |
GPS + Lbs Mode |
Variety RFID: |
Passive RFID + Phone Reader |
GPRS Tracking System: |
Web-Based and Mobile APP |
Two Way Communication: |
Speaker + Microphone |
Memory: |
4MB Data Logger |
Car Door Status: |
Support |
Irregualar Geo-Fence: |
Support |
Over Speed Alarm: |
Support |
Movement Alarm: |
Support |
Harsh Breaking Alarm: |
Support |
Product Description
Topshine Multi 5 SIM card GSM GPS tracker with camera RFID(Industrail grade module, 2 years warranty, Free Tracking Platfrom (PC base & Android), CE & RoHS & SGS certificationTopshine tracker VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting dual camera (location&driving information log on picture); Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique passive RFID/phone reader for automatic anti-theft and driver identification; And many useful functions and extensibility for fleet management and vehicle security purposes.
Application:
1. Vehicle Tracking
2. Car Security/ Anti-Hijack
3. Fleet management
4. Asset trackingFeatures & Functions:
* RFID kit/ phone reader for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc)
* Analog input for Fuel sensor detecting/monitoring, support max 4 fuel sensor manage
* Support Dual SIM card tracker, up to 5 SIM card tracker ( Optional )
* Support irregular GEO fence (Optional )
* Support 3G network tracker ( customize 4G network )
* Sopport Dual camera
* Anti GSM signal jamming
* Two way location ( GPS + GSM mode)* Tracking by SMS/GPRS (TCP/UDP)
* OTA Function
* Engine on/off detection
* Remote Engine cut off
* Built-in backup battery
* Support max 64G SD card store
* Wiretapping/remote listening
* ARM9 high speed microcontroller
* Two way communication (Listen & Speak)
* Real time tracking via the web-platform
* Get position location via call/SMS
* Photo with location & driving information log function
* Get location physical name via SMS & from the web-platform
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Built-in 4MB memory & position logging capacity up to 26, 000+ waypoints even no GPRS signalMore Alarm Functions:* Accident alarm
* Oil leaking/Refuel Alarm
* Over speed alert
* Geo-fence alert
* Moverment alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Suddenly acceleration/brake alert

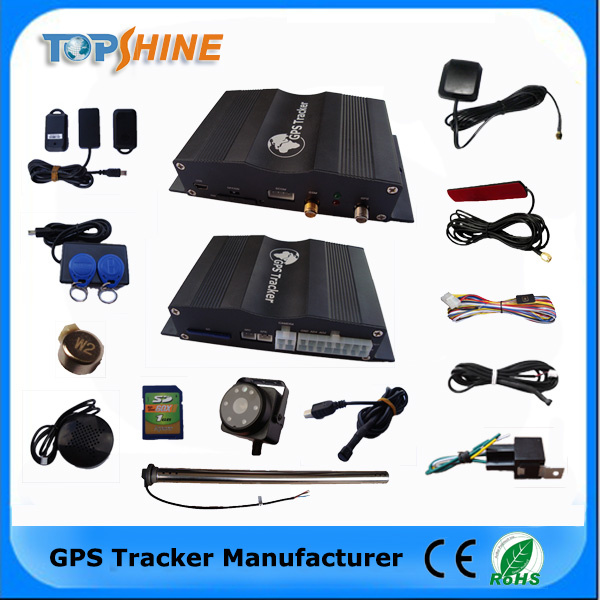

* Harsh braking and harsh acceleration alertAccessories of dual SIM tracker:Standard Accessories |
Main unit | SOS button |
GSM antenna | Microphone |
GPS antenna | Relay |
Wiring | |
Optional Accessories |
Fuel sensor | Crash sensor |
Temperature sensor | Smart phone reader |
Active RFID | Active RFID Tag |
Passive RFID | Passive RFID Tag |
OBDII | Camera |
Speaker | USB configuration cable |
Specifications: Items | Specifications |
Dimension | 110*80*30mm |
Weight | 180g |
Input voltage | DC 9V~35V/1.5A |
Back-up Battery | 850mAh |
Velocity | 515 meters/second (1000 knots) max |
Operating Temperature | -20°C~75°C |
Humidity | 5%~95% Non-condensing |
Altitude Limit | 18,000 meters (60,000 feet) max |
LED | 2 LED lights to show GPS, GSM status |
Cold start | 42sec., average |
Hot Start | 1 sec., average |
GSM Frequency | GSM 850/900/1800/1900MHz or GSM 900/1800/1900 MHz |
GPS Frequency | L1, 1575.42 MHz |
GPS Chip | Latest GPS SIRF-Star III Chipset |
GPS Sensitivity | -158dB |
Positioning Accuracy | 10meters, 2D RMS |
C/A Code | 1.023 MHz chip rate |
Channels | 20 channel all-in-view tracking |
Velocity Accuracy | 0.1m/s |
Time Accuracy | 1 us synchronized to GPS time |
Default datum | WGS-84 |
Reacquisition | 0.1 sec., average |
I/O | 5 Input 5 Output 1 Camera Port 4 Analog Input 1 RS232 Port 1 USB Port 1 MIC& Speaker Port 1 SD Card Slot |

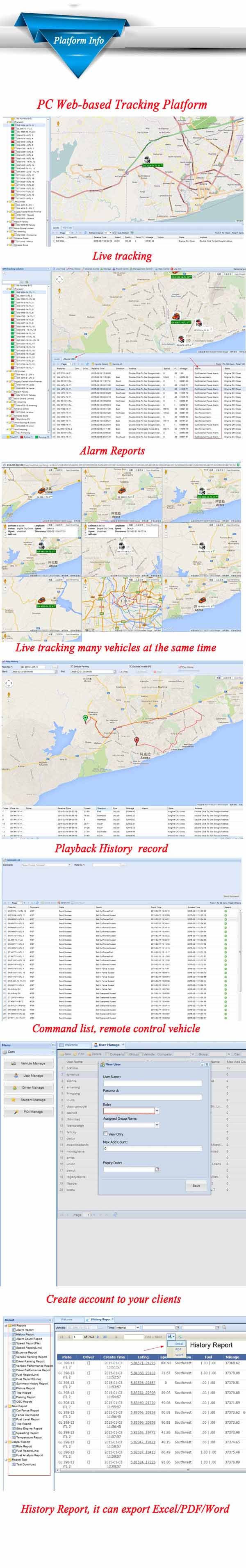

Topshine company provide 2 free tracking platform (web based and mobile APP)Web-based link: www.track-car.com
App link: www.track-car.com/m
Username: test1
Password: 123Our service:- Any inquiries will be replied within 12 hours on work day.
- Professional manuafacurer and wholesaler for 10 years.
- OEM available:
- Customized logo or color box
- We can help you to design and put it into production about your idea.
- High quality, fashion design, reasonable&competitive price, fast lead time
- After-sale service:
- All products will have been strictly Quality checked in workshop before packing
- All products will be well packed before shipping.
- All our products have 24 mouths warranty, and we are sure our products will be free from maintenance
- Fast delivery:
- Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
- Payment:
- payment for the order via: T/T , Western Union and Paypal
Guangzhou Topshine Electronic Technology Co., Ltd. is a China leader manufacturer of superior Global Positioning System (GPS) tracking solutions and innovative integrated wireless communication equipments.
Since 1999, Topshine designs, develops, and manufactures high quality GPS tracking products, including location based and personal tracking systems for the vehicle, insurance, logistics and marine markets etc.
With experienced R&D team, excellent sales team and user-friendly software platform, we can promptly provide customized products, solutions and technical support and services, which helps us build a high reputation in the industry and among our customers all over the world. 90% of our products are for export. Our duty is to deliver the right product at the best price to meet your requirements. We try to exceed the expectations of every client by offering outstanding products backed up with effective and professional customer services and support.
