Toughened Glass Insulator for Transmission Lines /U160b Lxp2-160

Name: Toughened Glass Insulator for Transmission Lines /U160b Lxp2-160
Brand: all-electronics-online.com
SKU: 835653505
Availability: InStock
Rating: 4.4 (146 reviews)

Price:	US $ 8.5/Piece
Min Order:	200/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LXP2-160/U160B
Puncture Voltage:	130kv
IEC Standard:	U160b
Creepage:	450mm
Application:	High-temperature
Structure:	Suspension Insulator
Type:	A Type Insulator
Material:	Toughened Glass
Color:	Light Green

Product Description

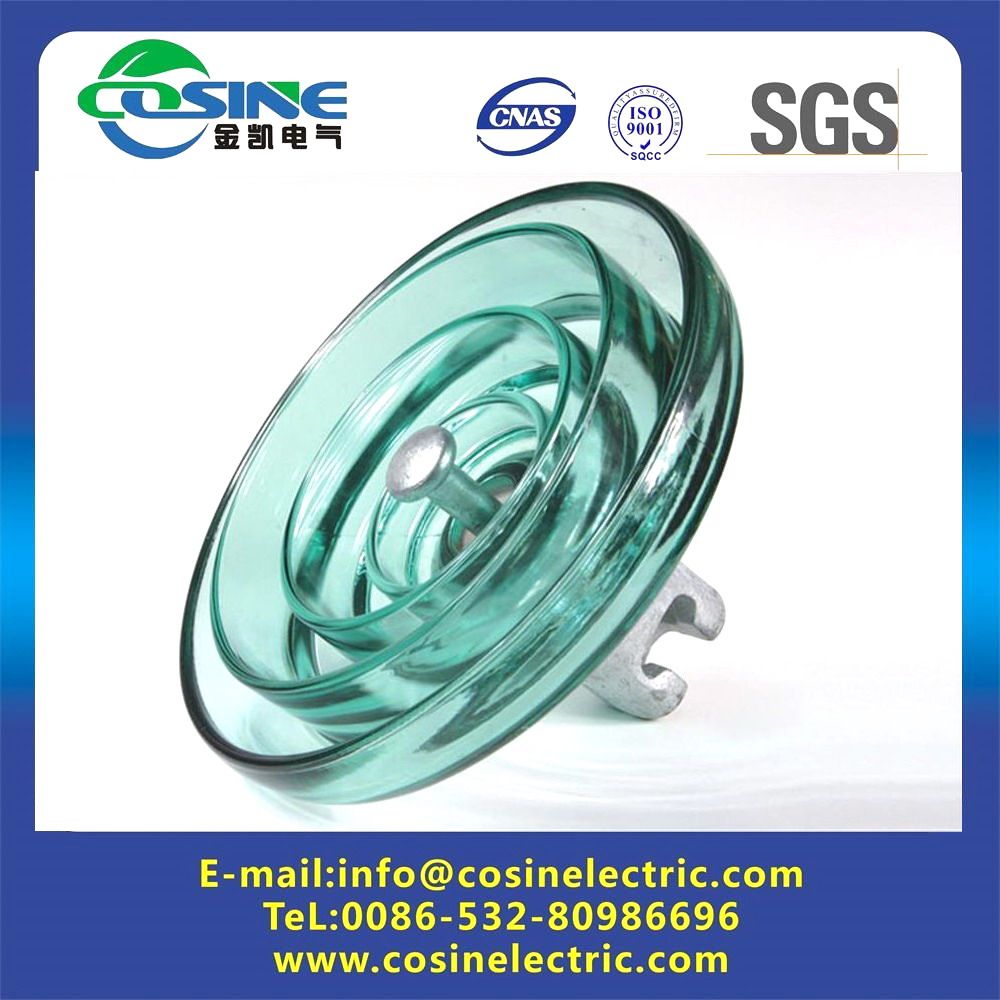

High Quality Toughened Glass Insulator with IEC standard

High voltage and low voltage glass insulators is available in our company,range from 10KV to 500KV

Our products were exported to Chile,Colombia,Myanmer, Nigeria, Italy, Peru, etc.

Toughened Glass Insulators of Cap and Pin Type is normal and Hot Sale glass insulator, have many moulds, such as U70BS, U70BL, U120B, U160B, U160BL etc are all viable in our company, accordance with IEC, ANSI Standard.

Technology Data:

IEC Standard insulators	U160B/170
Designation	LXP2-160
( mm ) Diameter D	280
( mm ) Spacing H	170
( mm ) Creepage L	450
( mm ) Ball and Socket soupling	20
( kN ) Mechanical failing load	160
( kN ) Mechanical routine test	80
( kV ) Wet power frequency withstand voltage	50
( kV ) Dry lightning impulse withstand voltage	110
( P.U ) Impulse puncture voltage	2.8
( kV ) Power frequency puncture voltage	130
( µV ) Rodio influence voltage	50
( kV ) Corona visual test	18/22
Power frequency electric arc voltage	0.12s/20kA
( kg ) Net weight per unit	7.1

For more about toughened glass insulator of Cap and Pin Type, pls contact us freely,we will reply you in 24hours and offer the most competitive price with good quality to you.

Company Profile:
QINGDAO COSINE electrical equipment specializes in supplying insulator and pole line hardware. With high speed of power construction in China and oversea country, QINGDAO COSINE has grown into a leader of exporting of insulator in China.

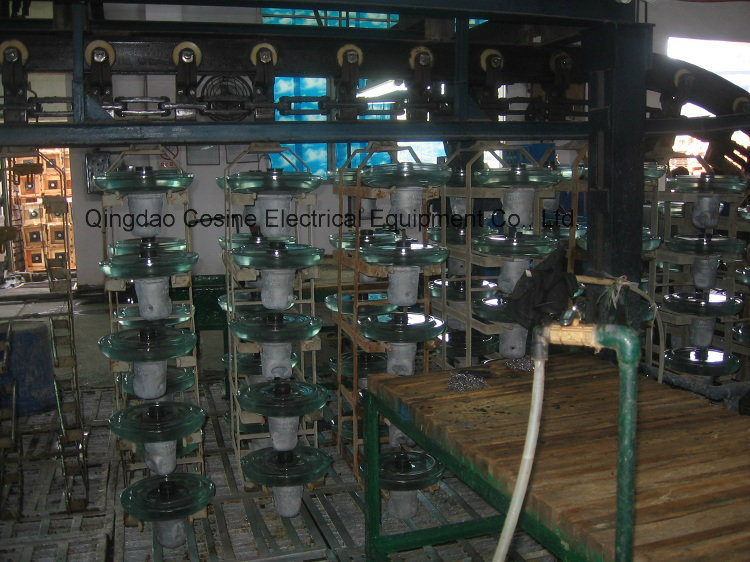

Producing Line:

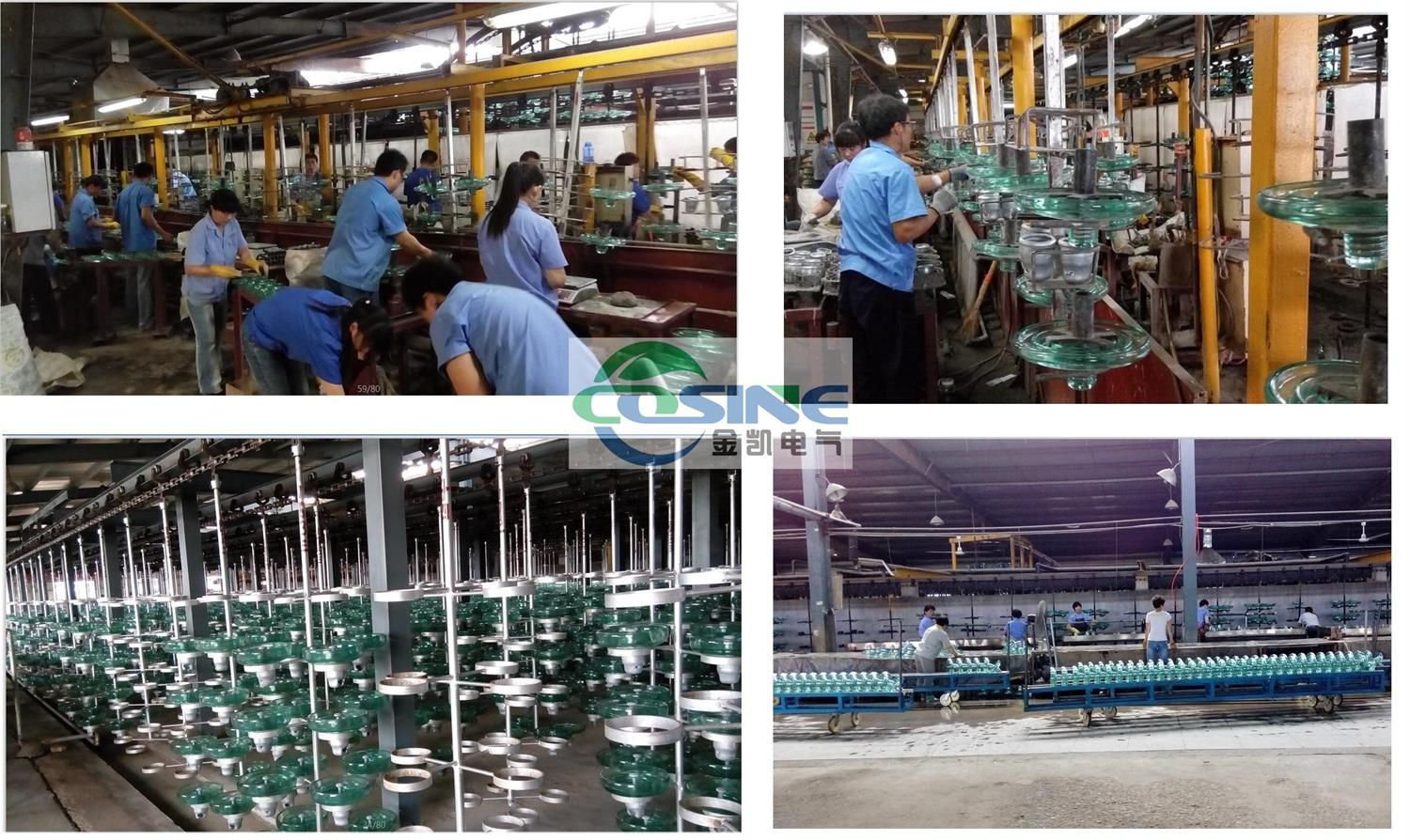

Assembling Line:

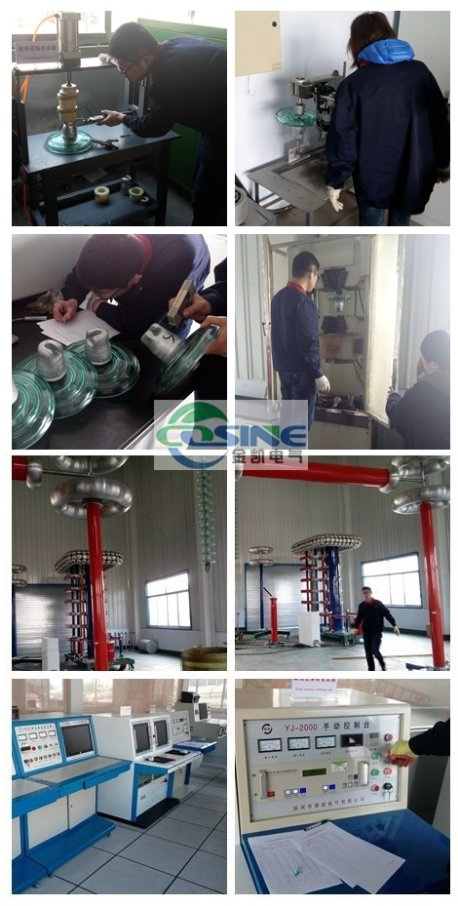

Quality Test:

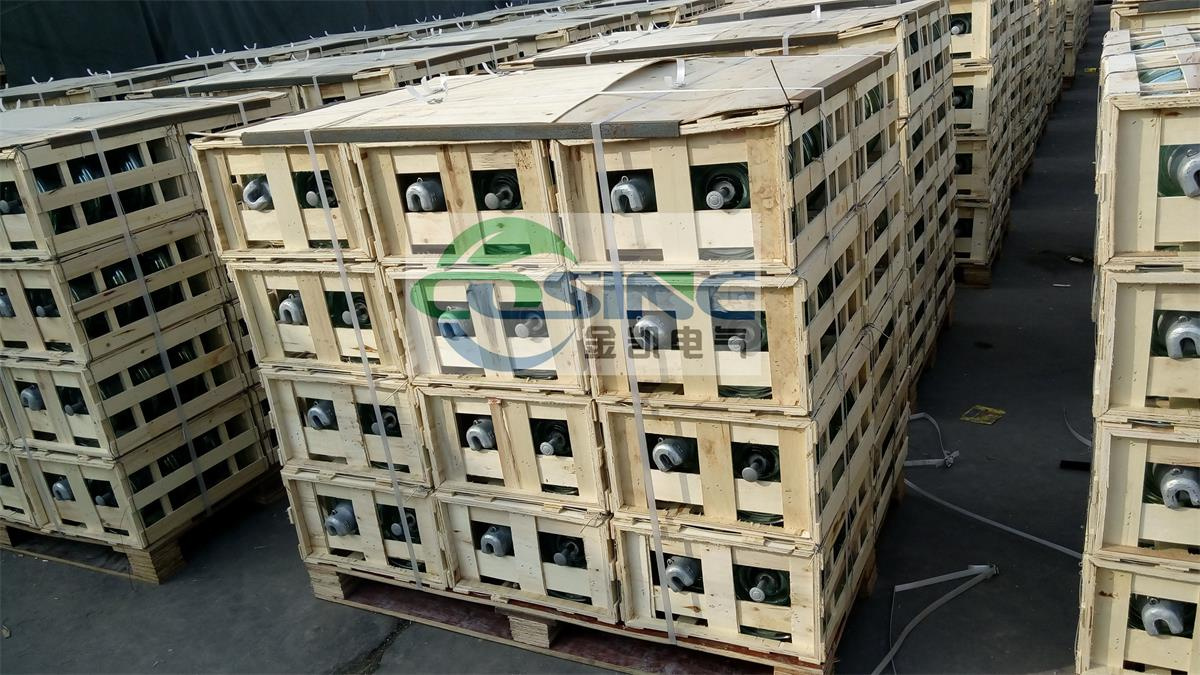

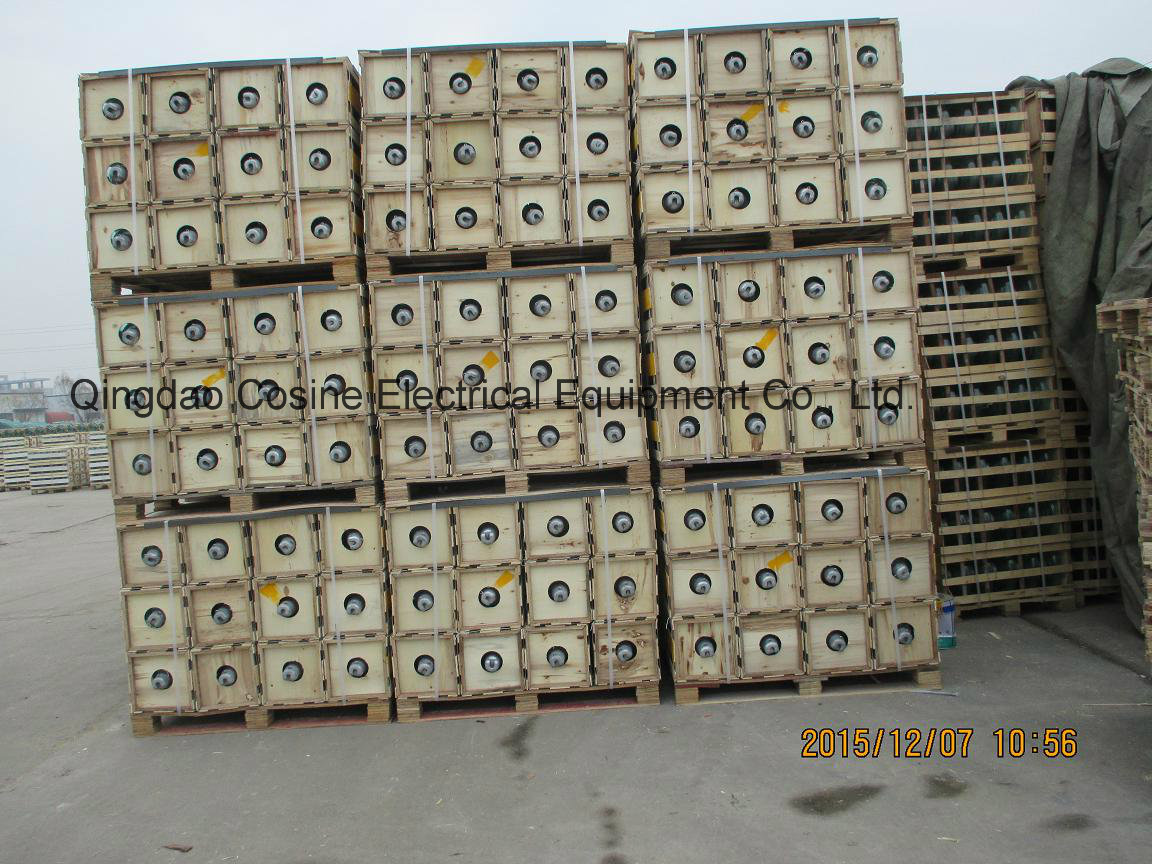

Package:

Hope you can interest in our products,looking forward to your inquiry and developing business with you.

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
