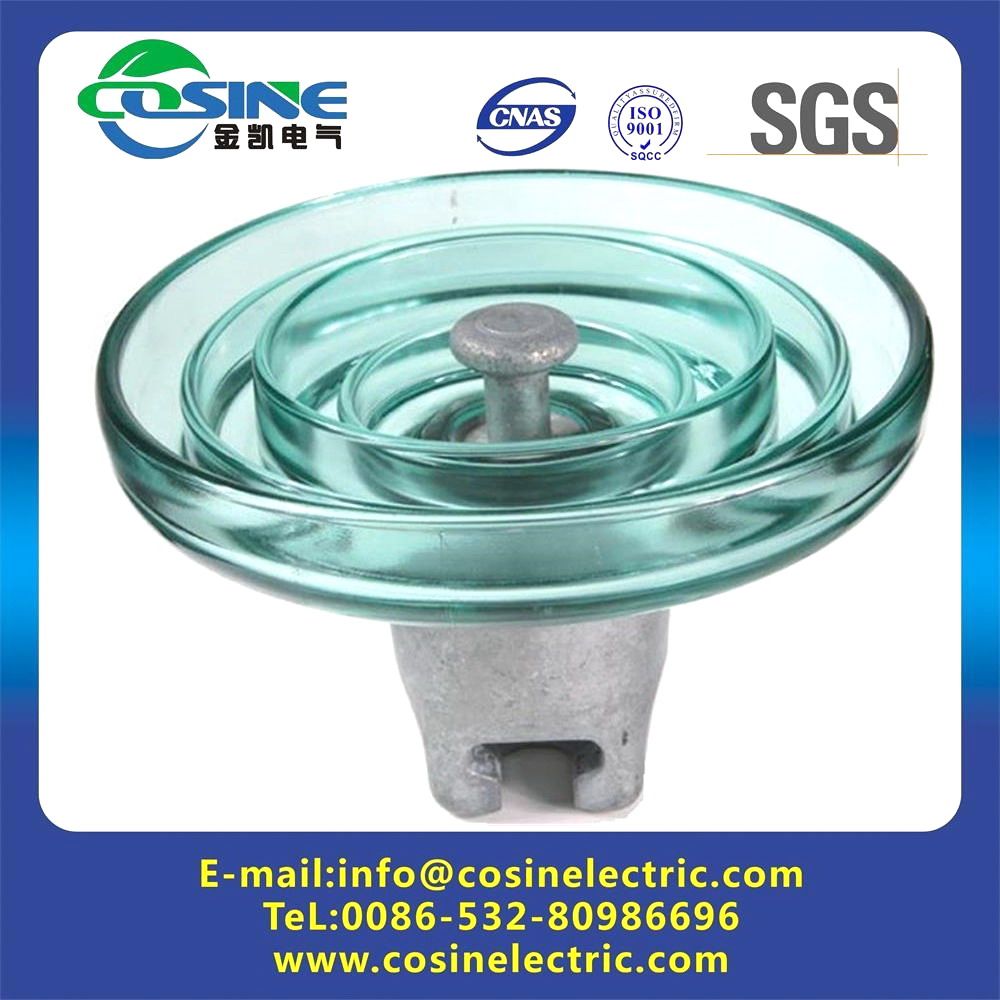

Glass Insulator IEC Standard Approved

Name: Glass Insulator IEC Standard Approved
Brand: all-electronics-online.com
SKU: 676527642
Availability: InStock
Rating: 5 (70 reviews)

Price:	US $ 5.2-5.25/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

High Voltage Glass Insulators U70BS, U70BL, U120B, U160B, U160BL,U210B ,U300B are our MOST normal products.
The quality is very good, price is very competitive,
we have exported the Glass insulator to Vietnam , Ukrain, Poland, Lithuania ,Russian, India, Iraq about 10years and have enjoyed very good reputations.

(1) Glass insulator Standard: IEC60383

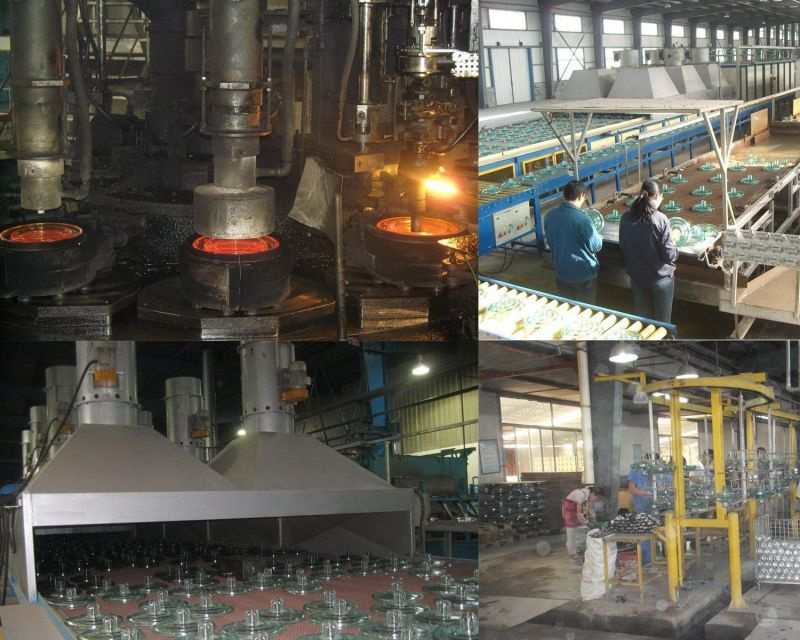

(2) Production Process

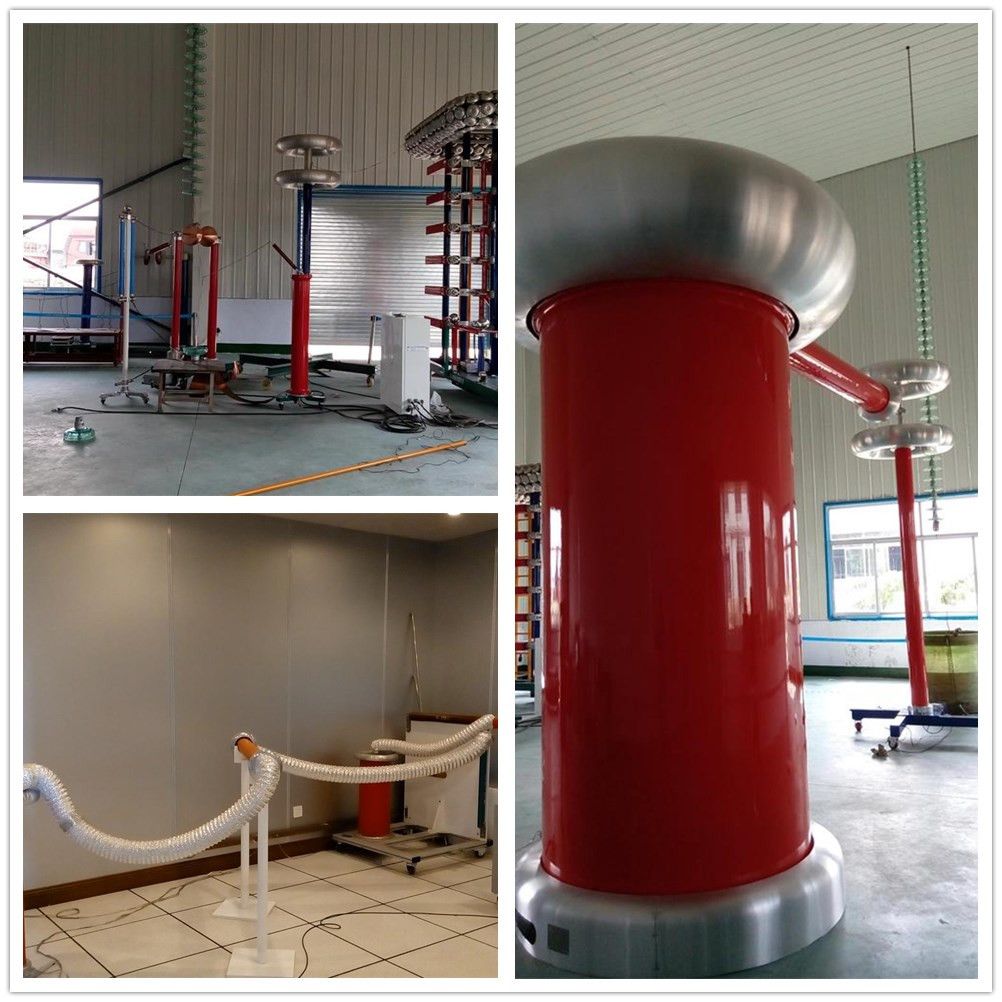

(3) Our Quality control:

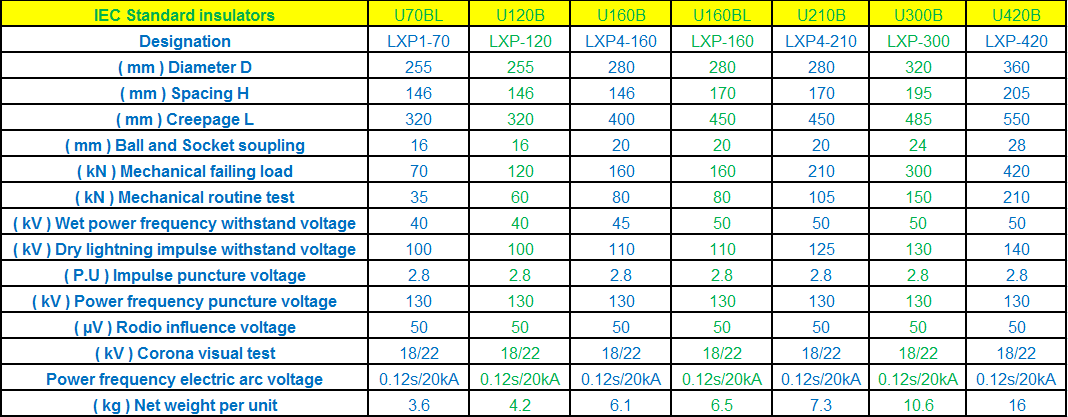

(4) Full Technical Data of the Glass Insulator

IEC Standard insulators	U70BL	U120B	U160B	U160BL	U210B	U300B	U420B
Designation	LXP1-70	LXP-120	LXP4-160	LXP-160	LXP4-210	LXP-300	LXP-420
( mm ) Diameter D	255	255	280	280	280	320	360
( mm ) Spacing H	146	146	146	170	170	195	205
( mm ) Creepage L	320	320	400	450	450	485	550
( mm ) Ball and Socket soupling	16	16	20	20	20	24	28
( kN ) Mechanical failing load	70	120	160	160	210	300	420
( kN ) Mechanical routine test	35	60	80	80	105	150	210
( kV ) Wet power frequency withstand voltage	40	40	45	50	50	50	50
( kV ) Dry lightning impulse withstand voltage	100	100	110	110	125	130	140
( P.U ) Impulse puncture voltage	2.8	2.8	2.8	2.8	2.8	2.8	2.8
( kV ) Power frequency puncture voltage	130	130	130	130	130	130	130
( µV ) Rodio influence voltage	50	50	50	50	50	50	50
( kV ) Corona visual test	18/22	18/22	18/22	18/22	18/22	18/22	18/22
Power frequency electric arc voltage	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA	0.12s/20kA
( kg ) Net weight per unit	3.6	4.2	6.1	6.5	7.3	10.6	16

Prod Model:	U70BS, U70BL, U120B, U160B, U160BL, U210BL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Glass Insulator: From U70bl To U550b:	Approved Standard: IEC383 Standard
Application:	High-voltage
Structure:	Suspension Insulator
Type:	A Type Insulator
Material:	Toughened Glass
Color:	Light Green
Brand:	Cie or OEM

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
