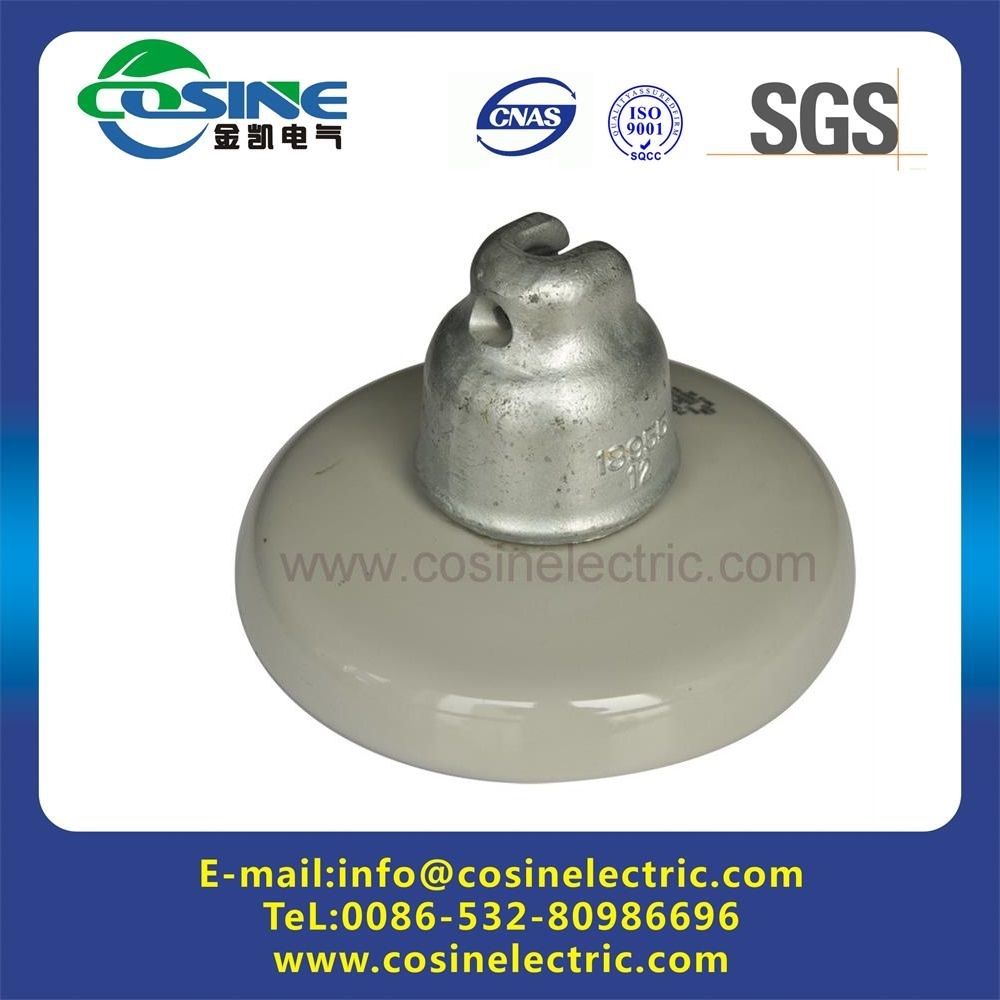

Ceramic Insulator ANSI52-3

Name: Ceramic Insulator ANSI52-3
Brand: all-electronics-online.com
SKU: 683477832
Availability: InStock
Rating: 4.6 (88 reviews)

Price:	US $ 5/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Name:Ceramic insulator ANSI 52-3
The ceramic insulator type: ANSI socket type
Insulator specification: ANSI
SML: 70KN

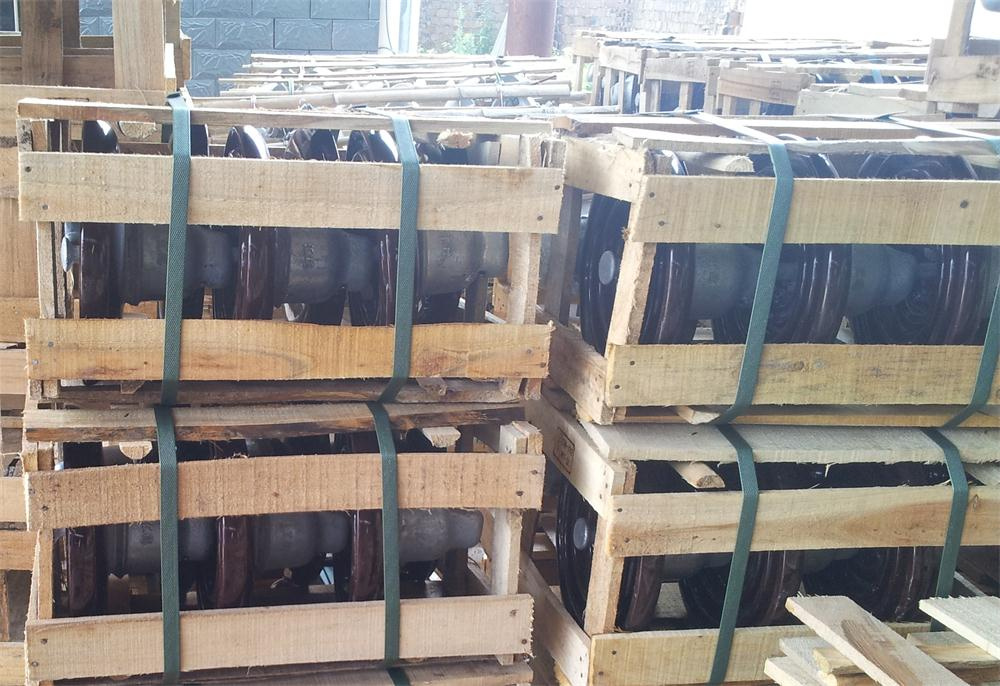

Package: Fumigated wooden-case

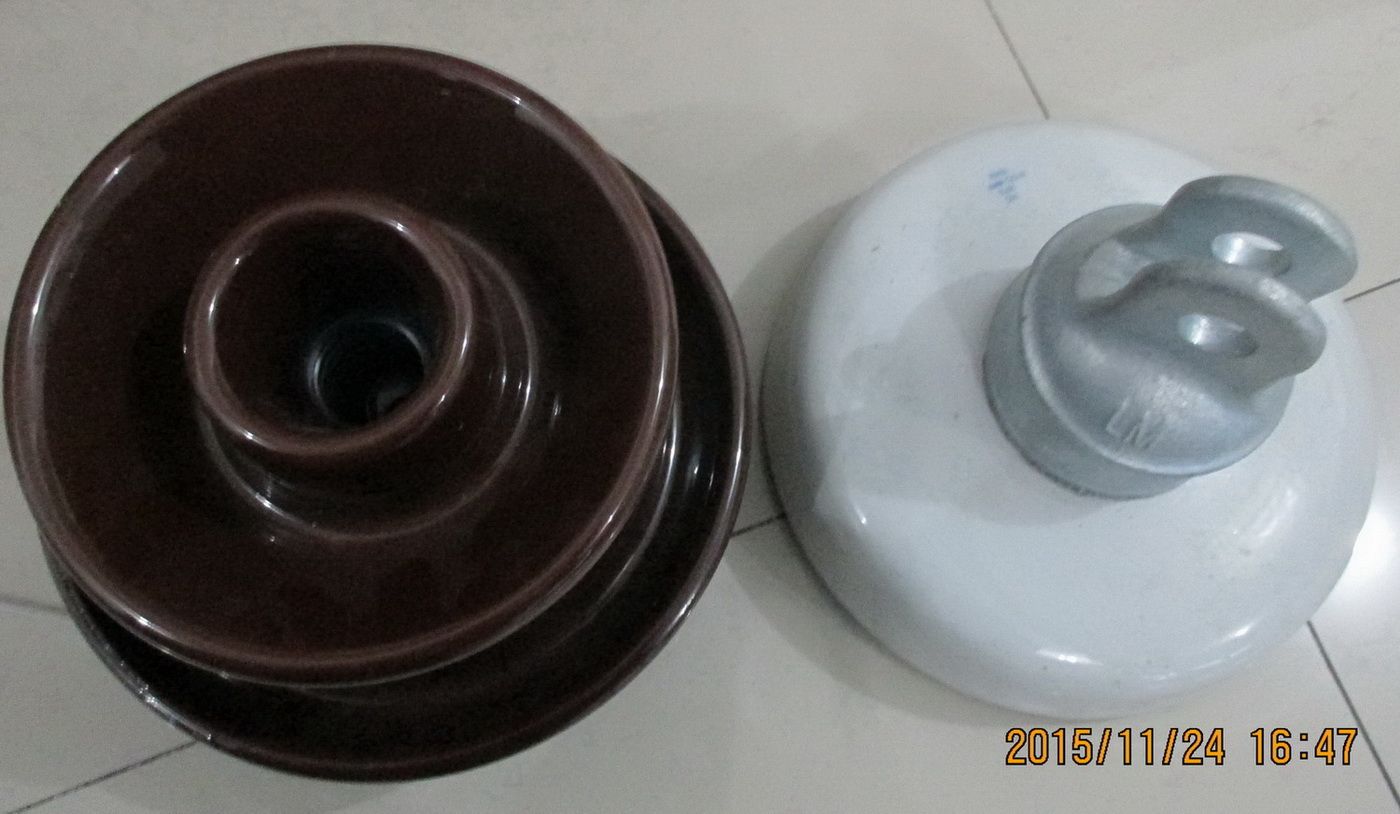

The glaze colors: Brown or light gray.
We offer best quality ceramic insulator with complete test report with IEC60383.

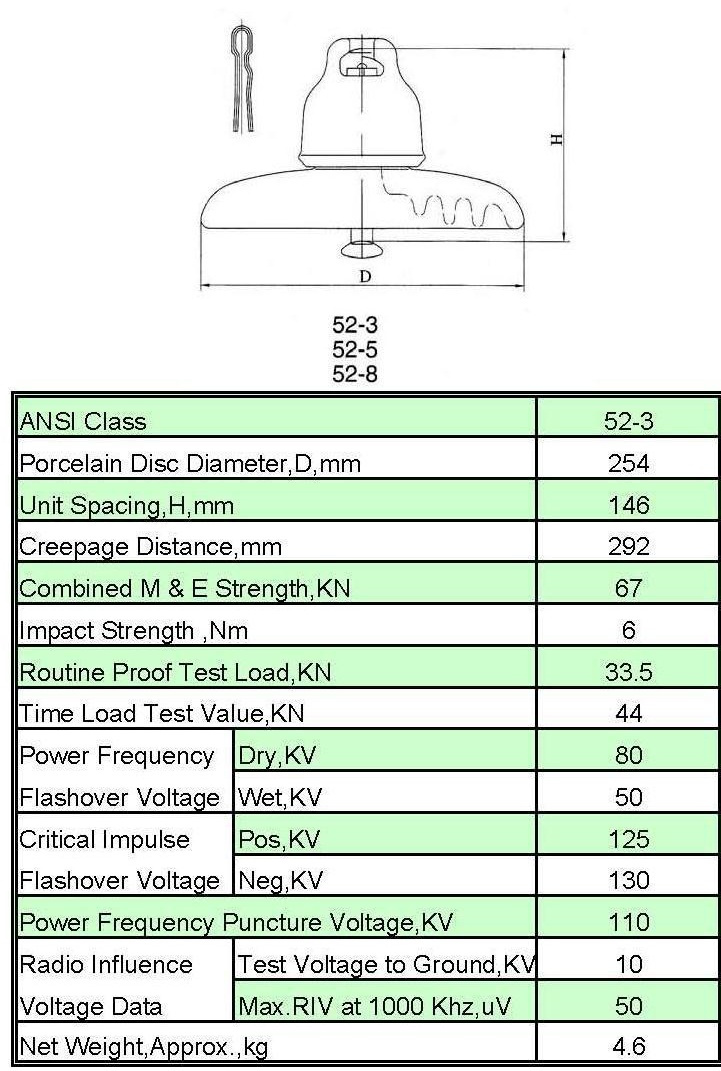

ANSI Class		52-3
Porcelain Disc Diameter,D,mm		254
Unit Spacing,H,mm		146
Creepage Distance,mm		292
Combined M & E Strength,KN		67
Impact Strength ,Nm		6
Routine Proof Test Load,KN		33.5
Time Load Test Value,KN		44
Power Frequency	Dry,KV	80
Flashover Voltage	Wet,KV	50
Critical Impulse	Pos,KV	125
Flashover Voltage	Neg,KV	130
Power Frequency Puncture Voltage,KV		110
Radio Influence	Test Voltage to Ground,KV	10
Voltage Data	Max.RIV at 1000 Khz,uV	50
Net Weight,Approx.,kg		4.6

Prod Model:	ANSI 52-3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Ceramic Insulator:	ANSI 52-3
Application:	High-voltage
Material:	Porcelain
Structure:	Suspension Insulator
Type:	ANSI 52-3 Suspension Insulator
Color:	Silver Grey
Brand:	OEM

Experience: 16 years producing experience from 1999-2015 for insulator and line hardware

Product: Composite insulator, glass insulator and ceramic insulator

SML: From 40KN to 550KN From AC insulator to DC insulator.

Package: Exported free-fumigation

Quality control: Can do all the test according to IEC

Quality control System: Exactly according to ISO9001: 2000

Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.

Engineer term: Have 12 engineers to reply all your questions and offer professional service.

Sale term: All the sale man have been trained every month. And offer best service.
