Tr Series Solid-Core Station Post Insulators/Substation Insulator/Tr216
| Price: |
US $ 8/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

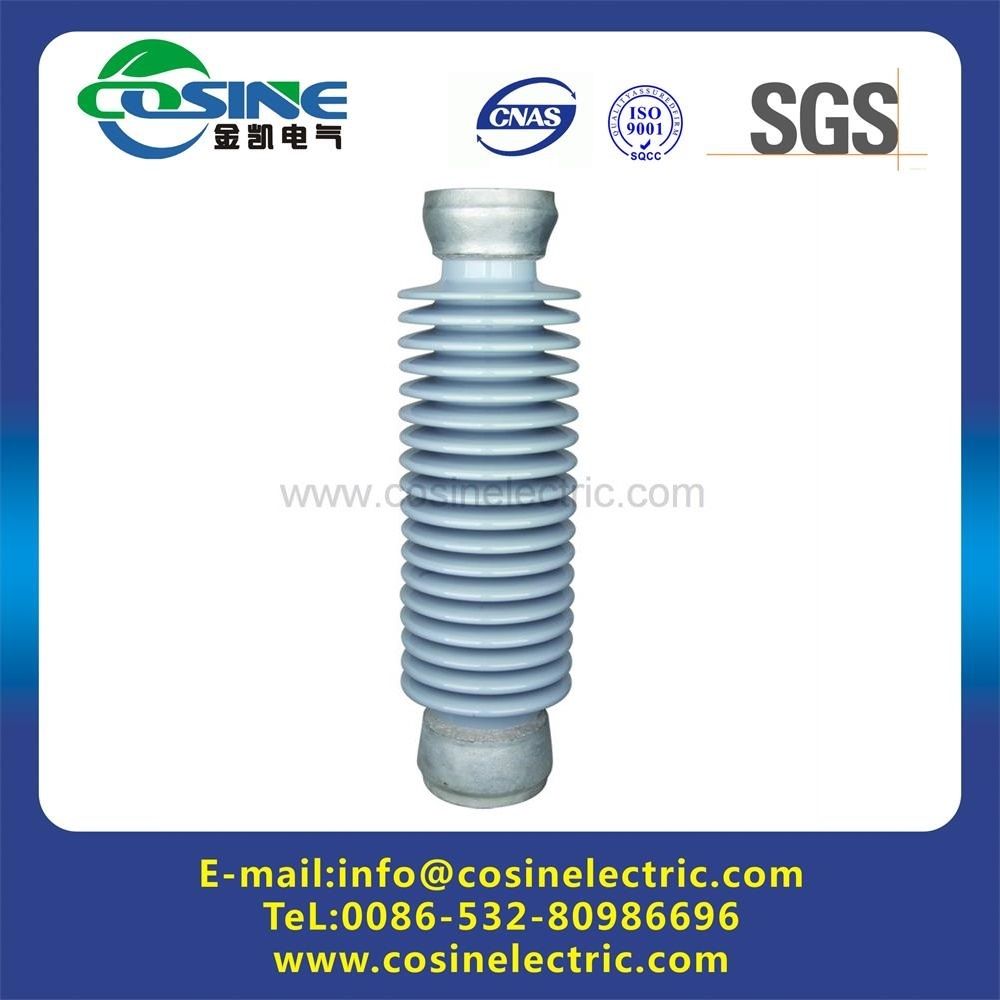

1. Name: TR Series Solid-Core Station Post Insulators/Substation Insulator
2. Type: Solid-Core Station Post Insulators TR216
3. Standard: Comply with the ANSI standard
4. Colour: Brown or light gray
5. Usage:High voltage insulator
6. Package: Fumigated wooden-case7. Export country:USA,Mexico,Korea..etc| ANSI Class | TR-216 |
| Creepage Distance.mm | 1829 |
| Cantilever Strength,KN | 6.7 |
| Tension Strength,kN | 71 |
| Torsion Strength,N-m | 1695 |
| Compression Strength,kN | 111 |
| Power Frequency | Dry,kV | 235 |
| Flashover Voltage | Wet,kV | 180 |
| Critical Impulse | Pos.,kV | 390 |
| Flashover Voltage | Neg.,kV | 475 |
| Power Frequency | Dry,kV | 175 |
| Withstand Voltage | Wet,kV | 145 |
| Impulse Withstand Voltate,kV | 350 |
| Net Weight,Approx.,kg | 29 |
| Standard Specification:ANSI C29.9 |
For more details about TR series post insulator,Pls feel free to contact Qingdao Cosine Electrical Equipment Co.,Ltd,will offer the competitive price and reply you in 24hours.Company Profile:
QINGDAO COSINE Electrical Equipment specializes in supplying various kinds of insulator and pole line hardware. With high speed of power construction in China and oversea country, QINGDAO COSINE has grown into a leader of exporting of insulator in China.
Our products range from10KV-500KV polymer insulator, 40KN-420KN porcelain insulator and various kinds of pole line hardware. All the insulators have been produced by modern equipment, For example,500KV polymer insulator has been produced by high volume injection machine, which can finish two pieces 500KV at one time. Mention to the porcelain insulator, the vacuum pug mill has been imported from Germany in order to control the quality from blank.

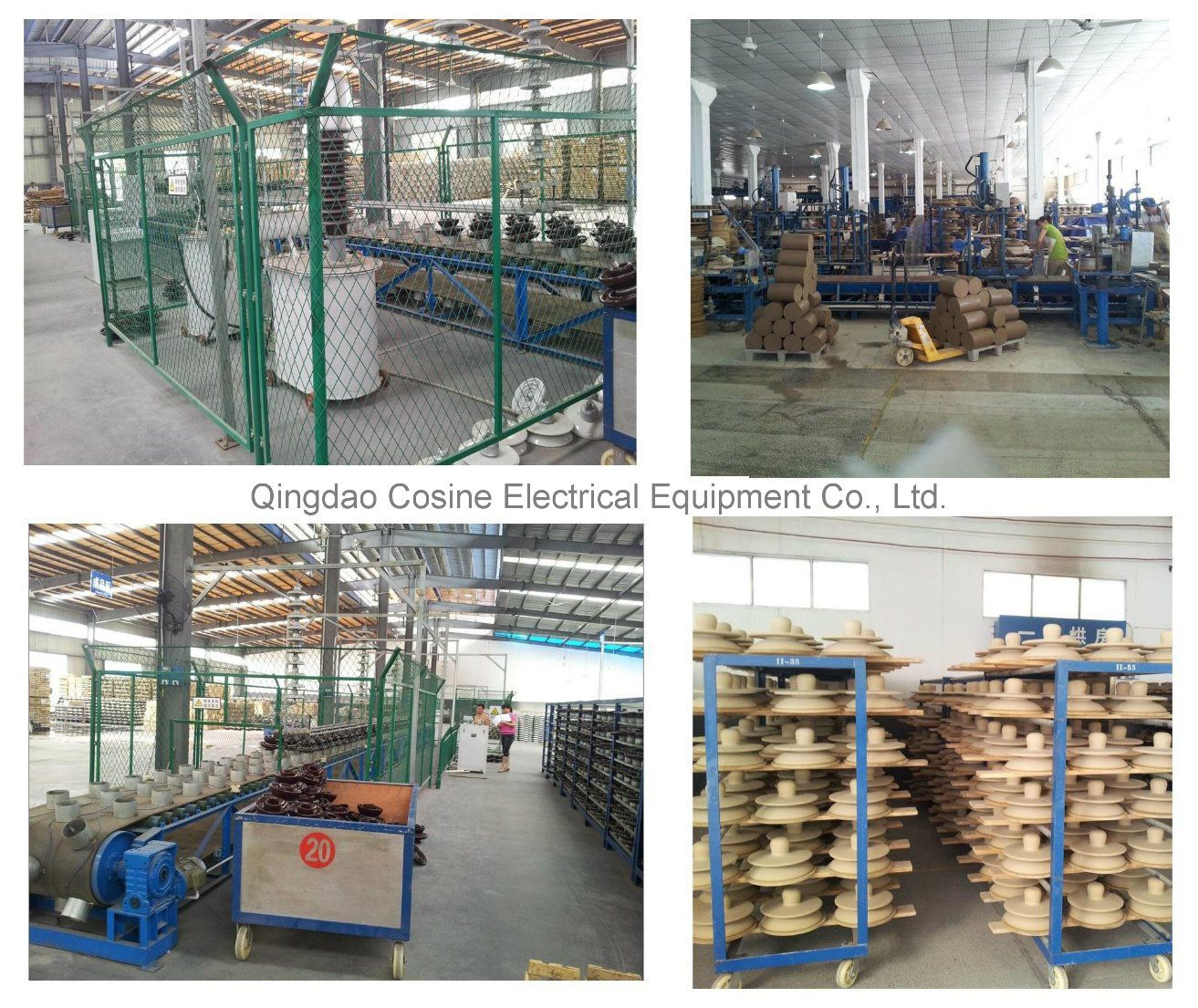

Producing Line:
We pay more attention to the product quality all the time.All the insulators have been tested 100% strictly by IEC Standard or ANSI Standard. We ensure the rate of qualified Production up to 100% before delivery. Based on good quality and service, our products are popular in USA, UK, Vietnam, Italy, Russia, Greece, Argentina and Chile. In order to keep good quality, we have got ISO9001:2008 certificate and won a good reputation among clients at home and aborad.
Quality Control:
Package:
Excellent service attitude, fast reaction speed, on-time delivery, consciousness of responsibility and flexibility are what we are practicing from the very beginning.The competitive price,the good quality,the punctual delivery, All of these are offered by us.Hope you will interest in our products and Warmly welcome to cooperate with you to make mutual benefits.
Looking forward to your inquiry!
| Prod Model: |
TR216 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Porcelain Insulator: |
35kv for Post Insulator |
| Application: |
High-voltage |
| Material: |
Porcelain |
| Structure: |
Post Insulator |
| Type: |
ANSI Tr216 Post Insulator |
| Color: |
Brown or Light Gray |
| Brand: |
OEM |
Experience: 16 years producing experience from 1999-2015 for insulator and line hardware
Product: Composite insulator, glass insulator and ceramic insulator
SML: From 40KN to 550KN From AC insulator to DC insulator.
Package: Exported free-fumigation
Quality control: Can do all the test according to IEC
Quality control System: Exactly according to ISO9001: 2000
Exporting Market: USA, Argentina, Mexico, Italy, South Africa, Turkey, Vietnam, France, Chile, etc.
Engineer term: Have 12 engineers to reply all your questions and offer professional service.
Sale term: All the sale man have been trained every month. And offer best service.
