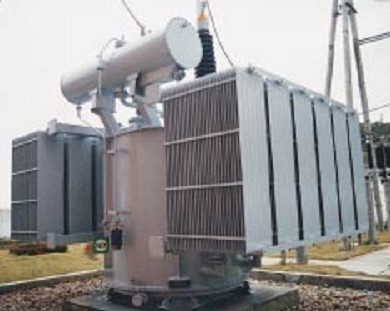

Traction Transformer
| Price: |
US $ 2000-80000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,D/P,Paypal,Money Gram |
Specifications
ZHS Series Oil immersed Rectifier Transformer:Toroidal coil stucture, loss, Low noise, Low partial discharge, no leakage
Rectifier transformers are combined with a diode or thyristor rectifier.The applications range from very large aluminum electrolysis to various small and medium size operations.The transformers may have a built-in or separate voltage regulation unit for direct output regulation of diode rectifiers, and correspondingly a power factor improvement with a thyristor rectifiers.
Features:
1) Low loss
2) Low noise
3) High efficiency
4) Low partial discharge
5) Strong mechanical strength and short-circuit withstand ability.
6) Operation reliability
7) Easy maintenance
8) Pretty outline and compact structure
9) 100% guaranteed no leakage
Brief specification
1) Voltage class:6~110 KV
2) Capacity:630 kVA to 120, 000 kVA
3) Short-circuit impedance:4.5~21%
Losses:No-load losses is fully comply with IEC standard requirements
Application:
1) Aluminum smelting
2) Magnesium smelting
3) Copper smelting
4) Zinc smelting
5) The largest installations are those for aluminum electrolysis with several transformer/rectifier units in parallel operation to achieve the required DC current, in all cases the rectifier can be with diodes or thyristors.
| Type | Rated Power (kVA) | Rated Voltage (Line Side) V | Rated Voltage (Valve Side) V | Connection Symbol | Active Part Weight (kg) | Oil Weight (kg) | Total Weight (kg) | Overall Dimension (L*W*H) (mm) |
| ZSSP-800/10 | 800 | 10000 | 400 | Dyn11 | 1580 | 660 | 3240 | 2160*1625*1855 |
| ZSSP-2000/35 | 2000 | 35000 | 400 | Yyn0 | 3320 | 1280 | 5735 | 2600*1260*2740 |
| ZSSP-4000/35 | 4000 | 35000 | 950 | Dd0y11 | 5410 | 2040 | 9540 | 2570*1745*2720 |
| ZSSP-6300/35 | 6300 | 35000 | 1000 | D( ±7.5 °)dyn | 8600 | 4860 | 18260 | 3340*1875*3370 |
| ZSSP-7000/35 | 7000 | 35000 | 950 | Dd0y11 | 8570 | 3390 | 14700 | 3185*985*3475 |
| ZSSP-8000/22 | 8000 | 22000 | 950 | Dd0y11 | 8640 | 3340 | 14710 | 3210*1905*3375 |
| ZSSP-8000/35 | 8000 | 35000 | 950 | Dd0y11 | 9170 | 3590 | 15520 | 3340*1870*3490 |
| ZSSP-9000/35 | 9000 | 35000 | 950 | Dd0y11 | 9920 | 4070 | 15740 | 3240*1915*3720 |
| ZSSP-10000/35 | 10000 | 35000 | 1000 | D( ±7.5 °)dyn | 11090 | 4400 | 18850 | 3410*1915*3845 |
Railway balance traction transformer is the main transformer in the traction substation of railway electrification. It is suitable for traction electrification performance characters, such as short-time serious over-load, 3-phase unbalanced load, frequent close to earth short-circuit, etc. It has the distinguishing features of low loss, high mechanical strength, simple structure, convenient manufacture. Because of traction transformer's long working in no-load condition, the proportion of no-load loss to load loss is selected reasonable in order to be in transformer economic performance during designing.
| Technical Parameters of 110kv class YN.A Connection Balance Traction Transformer |
| Rated Capacity(kVA) | Voltage Combination | No-load loss(KW) | Load los s(KW) | No-load current(%) | Short circuit impedance(%) | Vector Group | Total weight(kg) | Overall Dimension(mm) |
| H.V.(kv) | Tapping range | L.V.(KV) | Active part | Oil weight | Total weight | L W H |
| 10000 | 110 | ±2×2.5% | 27.5×2 | 12.5 | 59 | 0.9 | 10.5 or 8.4 | YNA | 13300 | 8900 | 31800 | 5430×2905×4030 |
| 12500 | 14.5 | 70 | 0.9 | 15670 | 9800 | 32000 | 6060×3100×4380 |
| 16000 | 16.5 | 86 | 0.6 | 18860 | 10100 | 36160 | 6170×3450×4450 |
| 20000 | 20.0 | 104 | 0.6 | 22290 | 10600 | 39900 | 6260×3620×4670 |
| 25000 | 25.0 | 123 | 0.55 | 26350 | 11200 | 47200 | 6320×3920×4835 |
| 31500 | 29.0 | 148 | 0.50 | 38500 | 12200 | 53000 | 6450×4130×5040 |
| 40000 | 35.0 | 174 | 0.45 | 46060 | 13600 | 66000 | 6600×4320×5200 |
| 50000 | 41.0 | 216 | 0.40 | 54450 | 17200 | 73000 | 6830×4500×5400 |
| 63000 | 50.0 | 260 | 0.35 | 64750 | 19800 | 86000 | 6990×4880×5600 |
| Note: |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| 1.The above product can be produced according to the highland type, and the products with other power can be supplied |
| 2.the above data is for reference only, our company reserves the right of product renewing, amendment and design. If you have specific matters, please contact with our company |
| Model NO. | Network
Voltage(KV) | DC power supply parameters and characteristics | Connection group symbol | Weight of product(kg) | Overall size(mm)
L*W*H/lifting height |
| Rectifier mode | No-load voltage (V) | Work
Current (A) | Equivalent phase | body | oil | Total |
| ZQS-400/10 | 10 | 3phase bridge type | 150-400 | 1000 | 6 | D/d0 | 1000 | 350 | 1700 | 1800*1250*1600/3500 |
| ZQS-630/10 | 10 | 300-630 | 700 | 6 | D/d0 | 1100 | 600 | 2100 | 1900*1300*1650/3500 |
| ZQS-800/10 | 10 | 300-660 | 900 | 6 | D/d0 | 1800 | 900 | 3300 | 1920*1830*2000/4000 |
| ZQS-1000/10 | 10 | 330-660 | 1450 | 6 | D/d0 | 2100 | 1000 | 4000 | 2141*1850*2500/4000 |
| ZSS-1250/10 | 10 | Double three-phase bridge | 780 | 1500 | 12 | D/d0-y11 | 2200 | 1650 | 4800 | 2150*2000*3000/4500 |
| ZSS-1800/10 | 10 | 780 | 2200 | 12 | D/d0-y11 | 2600 | 2100 | 5600 | 2250*2300*3100/4500 |
| ZSS-2500/10 | 10 | 780 | 2950 | 12 | D/d0-y11 | 3700 | 2200 | 7250 | 2500*2200*2970/4000 |
| ZSS-3150/10 | 10 | 710 | 4250 | 12 | D/d0-y11 | 4300 | 2500 | 9000 | 2500*2300*2900/4000 |
| ZSS-3600/10 | 10 | 710 | 4860 | 12 | Y/d11-y0 | 5000 | 2650 | 10500 | 2500*2300*2900/4500 |
| ZSS-4500/10 | 10 | 780 | 5500 | 12 | D/d0-y11 | 5800 | 3000 | 11800 | 2800*2400*3300/4500 |
| ZSS-5000/35 | 35 | 780 | 6100 | 12 | D/d0-y11 | 7000 | 3300 | 12500 | 2900*2500*3300/4500 |
| ZSS-12500/35 | 35 | 1050 | 10885 | 12 | Y/d11-y0 | 13000 | 5500 | 21800 | 3500*2600*3500/5500
|
| Prod Model: |
VLTR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
35kv |
| Connection: |
Yd11 |
| Application: |
Audio |
| Phase: |
Three |
| Coil: |
Core-type Transformer |
| Cooling Method: |
Oil-immersed Type Transformer |
| Winding Type: |
Separated Winding Transformer |
| Brand: |
Ville |
