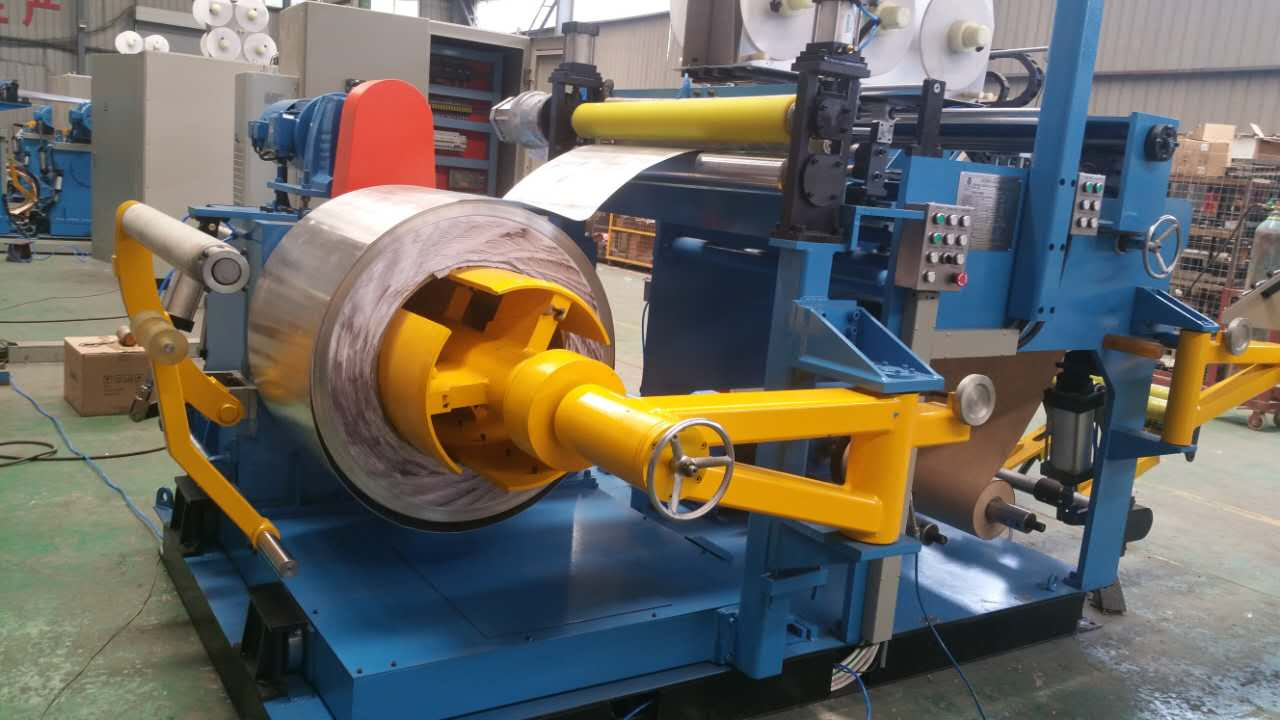

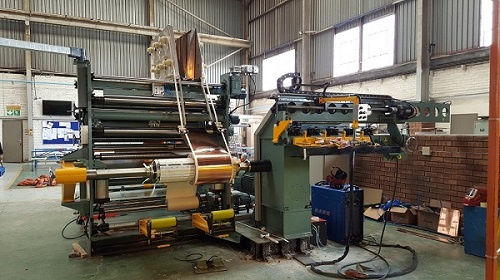

Transformer Foil Winding Machine (FWM), Cold-press/Tig Welding
1. General
FWM-type foil winding machine is used for low voltage transformer coil winding.
According to transformer coil-height is divided into three types: FWM-1400 type, FWM-1000 type, FWM-800 type.
According to winding layer are divided into double foil and single foil winding machine. (The FWM-800 type have single foil).Besides, it can also be manufactured according to the user requirements.
2. Technical characteristics
Bus-bar and conductor-foil is connected by TIG Welding or Cold Press welding device.
1.The equipment actuating mechanism adopts the pneumatic component control other than the motor, avoiding the phenomenon of hydraulic oil leakage;
2.The welding system adopts the imported linear guide rail and ball screw;
3.It adopts the photoelectric servo motor to control the planes of the coil face with fast response;
4.The decoiler is equipped with five alloy coating friction plates with the maximum tension of 20000 N;
5.The equipment is high-tech product on the base of actual condition, the appliance applies the PLC automatic controlling and thus it has the features of high automation and easy operation.

6.Tension adjustment can be made on the control panel on demand and the operation is divided into manual mode and linkage mode.

7.So, one machine can finish all the requirements for foil coils.

3. Main Structure of Foil winding machine

2.1	Conductor-foil-decoiler	2 sests
2.2	Foil feeding device,	2 sets
2.3	Foil edge alignment device	2 sets
2.4	Foil shearing device	2 sets
2.5	Edge-filling-strip-decoiler	1 set(8pcs)
2.6	Interlayer-insulation-decoiler	2sets
2.7	Welding unit (Including a TIG welder, and a Cold Press welder)	2 sets
2.8	Foil winder	1 set
2.9	Coil-pressing device	1 set
2.10	Discharge trolley	1 set
2.11	Deburring unit	2sets
2.12	Foil cleaning unit	2sets
2.13	Electrical control system	1set
2.14	Cooling water tank and water pump	1set

YANG MING MACHINERY IMPORT&EXPORT CO., LIMITED
Frank YANG (marketing director)
Add: No.5, exhibition east road, Torch development zone, Zhongshan, Guangdong, CHINA; Post code:528437
Mob:+86-13923325364
Website: http://www.ymmie.com/

Prod Model:	Foil wind machine
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Transformer Foil Winding Machine:	LV Foil Winding Machine
Application:	Power
Phase:	Three
Coil:	Core-type Transformer
Cooling Method:	Dry-type Transformer
Winding Type:	Multi-winding Transformer
