Triac Dimmable 12V LED Driver Transformer

Name: Triac Dimmable 12V LED Driver Transformer
Brand: all-electronics-online.com
SKU: 766380175
Availability: InStock
Rating: 4.5 (93 reviews)

Price:	US $ 3.9-4.85/Piece
Trade Terms:	FOB
Min Order:	50/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Triac dimmable 12v led driver transformer

Features:

Model No.	DR-CV-12
Input Voltage Range	220-240V/AC
AC Frequency	48-62Hz
Input current	0.2Amax
Output Mode	Constant voltage
On Load Voltage	12V 24V
Output Current	1000mA 600mA
No Load Voltage	12V 24V
Output Power	12W Max.
Power Factor	>0.95
Efficiency	>80%
Dimensions	*914119(mm)*
Weight	69g

Environmental Specifications :

Operating Temperature:-30~45°C

Storage Temperature : -40~+70°C

Thermal Dissipation : Nature

Relative Humidity:5~95%

Isolation Voltage:In/Out 3000VAC

Vibration:5-55Hz/2g,30 Mimutes

Life Time:50000Hours,at TC max

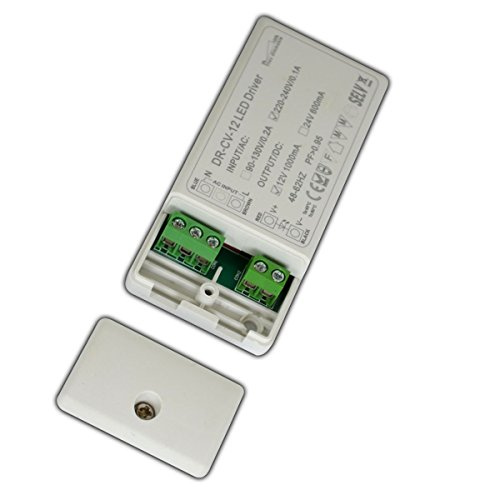

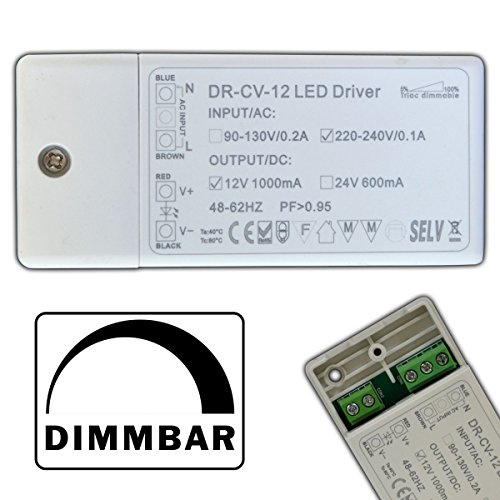

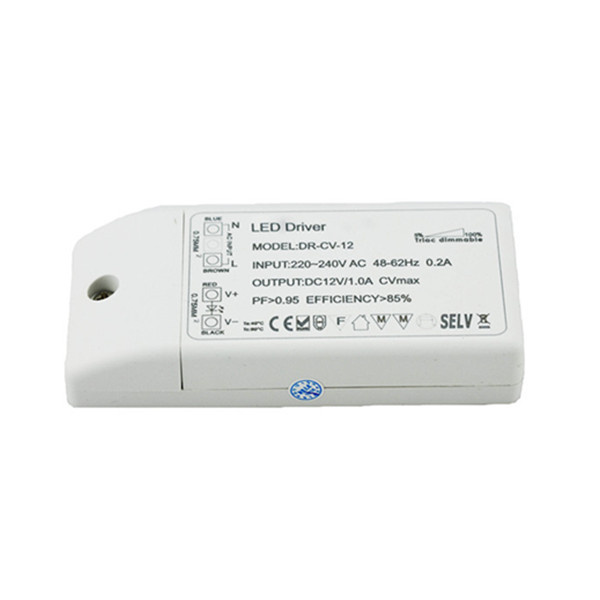

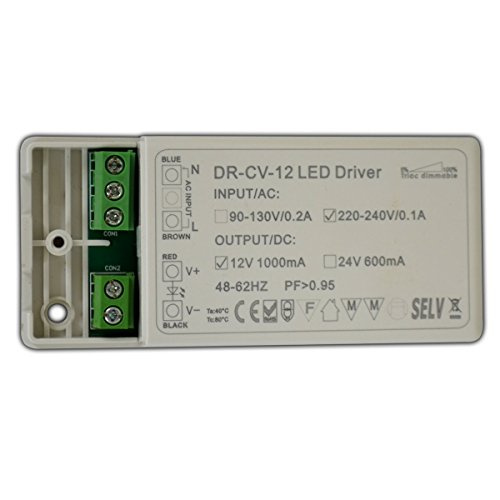

Pictures:

Conformity & Standards:

EN55022

EMI EN55015 Class B

Safety EN60598

Electromageric EN61547,ENV5024

Immunity EN61000-4-2/3/4/6/8/11

Harmonic EN61000-3-2

Current Emissons EN61000-3-3

Quality guarantee:

All the driver have automatic protection of overload, short circuit, temperature,etc.

Guarantee:1.The warranty period is 2 years.

2.During the time ,if the product have any question ,we can change the same to you.

We can design the product according to your requirement.

Packing:

Bubble bag ,inner box,and carton etc

Prod Model:	DIM12
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Dimension:	914119(mm)
IP Degree:	IP67
Dimmable:	Yes
Protection:	Short Circuit
Workspace:	12V
Usage:	Light
Output Type:	Single
Driving Method:	LED Constant Current
Circuit Structure:	Triac
Power Supply Mode:	Customed
Modulation System:	Triac
Brand:	No Brand
