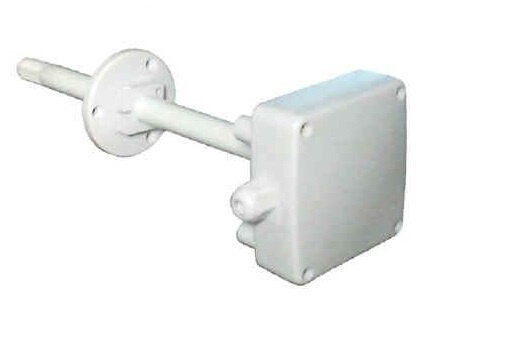

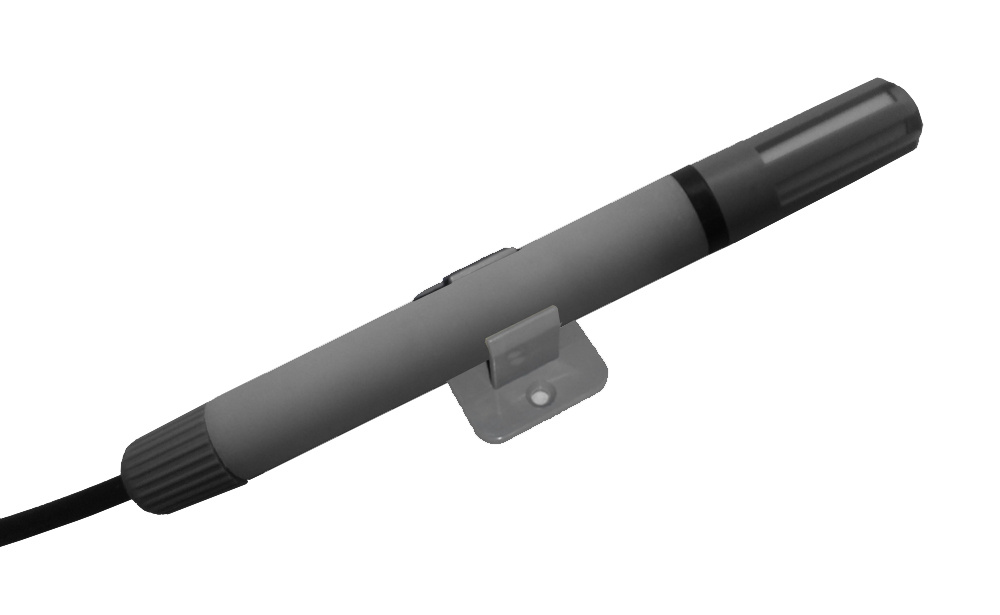

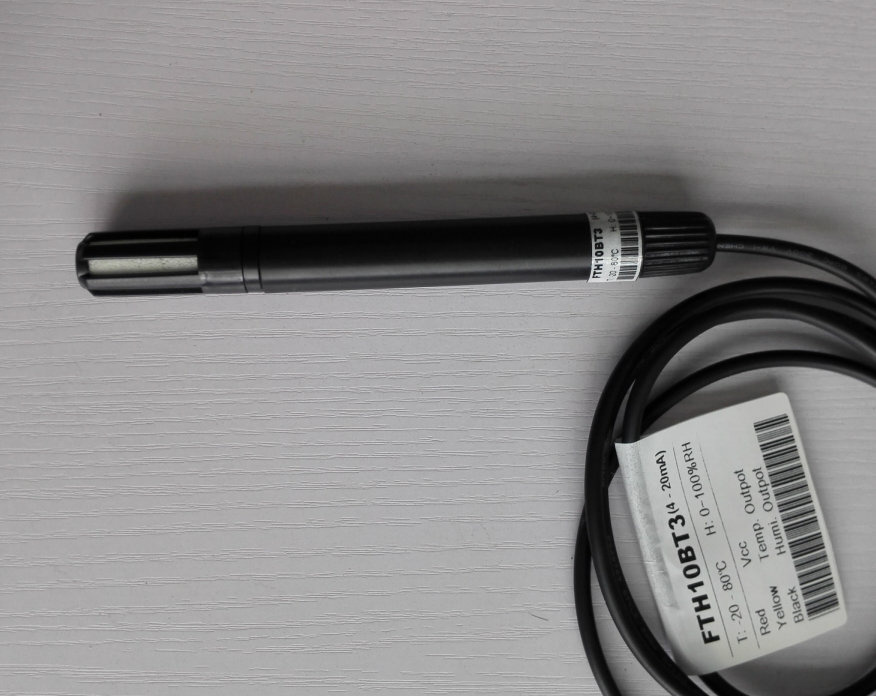

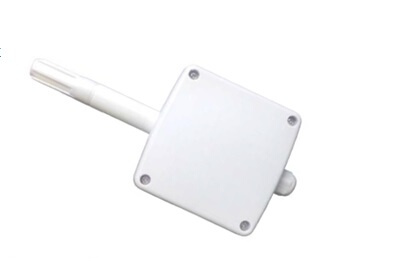

Tubular Humidity Transmitter Probe for Environmental Monitoring

Name: Tubular Humidity Transmitter Probe for Environmental Monitoring
Brand: all-electronics-online.com
SKU: 755774645
Availability: InStock
Rating: 4.6 (73 reviews)

Price:	US $ 0.01-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Features:
1,small-sized housing
2,Full interchangeability
3,Wide working range, high accuracy
4,High reliability and long term stability

Typical Applications:
1,Incubators
2,Fermentation chambers
3,Environmental monitoring
4,Industrial Process control
5,Humidity / temperature data logging

Technical Data:

Parameter Temperature Relative Humidity

Measurement Range	0...+50°C -40...+60°C -20...+80°C	0...+100% RH
Accuracy at 25°C	±0.3°C	±3% RH (20...80% RH)
Stability	<0.1°C / year	<0.5%RH / year
Response	<15s	<12s(63%)
Power Supply	2-wire: 12...24V 3-wire: 15...24V
Output	2-wire: 4...20mA 3-wire: 4...20mA / 0...1/5/10V
Load	2-wire: (VDD - 7V) / 0.02A 3-wire: Current mode less than 500Ω, Voltage mode greater than 10kΩ
Protection grade	IP65

Ordering Guide:

SERIES	OUTPUT	T-SCALING
FHT10	(A) 2-wire current mode 4...20mA	(T1) 0...+50°C
	(B) 3-wire current mode 4...20mA	(T2) -40...+60°C
	(D) 3-wire voltage mode 0...10V	(T3) -20...+80°C
	(E) 3-wire voltage mode 0...5V
	(F) 3-wire voltage mode 0...1V

Other Products:

Contact US:

Focus Sensing and Control Technology Co.,LTD
Sales Manager
Cherry Chen
Tel: +86-551-69109668

Prod Model:	FHT10 Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sensing Type:	Semiconductor IC
Output Signal Type:	4-20mA, 0-5V, 0-10V, RS485
Material:	PC+ABS

Focusens is a ISO certified and patented company specially works in developing, producing and service of temperature sensors and thermal components.

With more than 15 years field experience, we are committed to provide quality and prompt delivery of temperature and humidity components, as well as custom design service in temperature humidity field.

Our activities covers all over the world, including Asia, Europe, America, Latin America, Australia and South Africa.

Our customers covers Important players such as Schneider, Oster, Haier, Lada, JAC etc.

Our main products including various temperature sensors and temperature sensing element, various output type humidity transducer, and temp. Humidity monitor and control units.

We provide professional design, manufacturing, and assembly, meanwhile accept OEM with customers design.

Contact us now for details and improve projects efficiency with our expertise.
