TUV PV Cable Fire Resistant Cables Twin Core DC Solar Cable
| Price: |
US $ 1.3/Meter |
| Min Order: |
100/Meter |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |
| Prod Model: |
PVC-225 |
| Products Name: |
TUV PV Cable Fire Resistant Cables Twin Core DC |
| Color: |
Red/Black |
| Wire: |
Class 5,Tinned |
| Temperature Range: |
-40~+90 |
| Fire-Resistatnce Perfermance: |
IEC 60332-1 |
| Approvals: |
TUV 2pfg1169 |
| Low Fire Load: |
DIN 51900 |
| Smallest Permissible Bending Radius: |
5xd |
| Cross Section: |
2.5mm2 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Application: |
Power Station/Construction |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
TUV/SAA |
| Sheath Material: |
XLPE |
| Range Of Application: |
Photovoltaic Power Station |
| Brand: |
Meanray/OEM |
Product Description

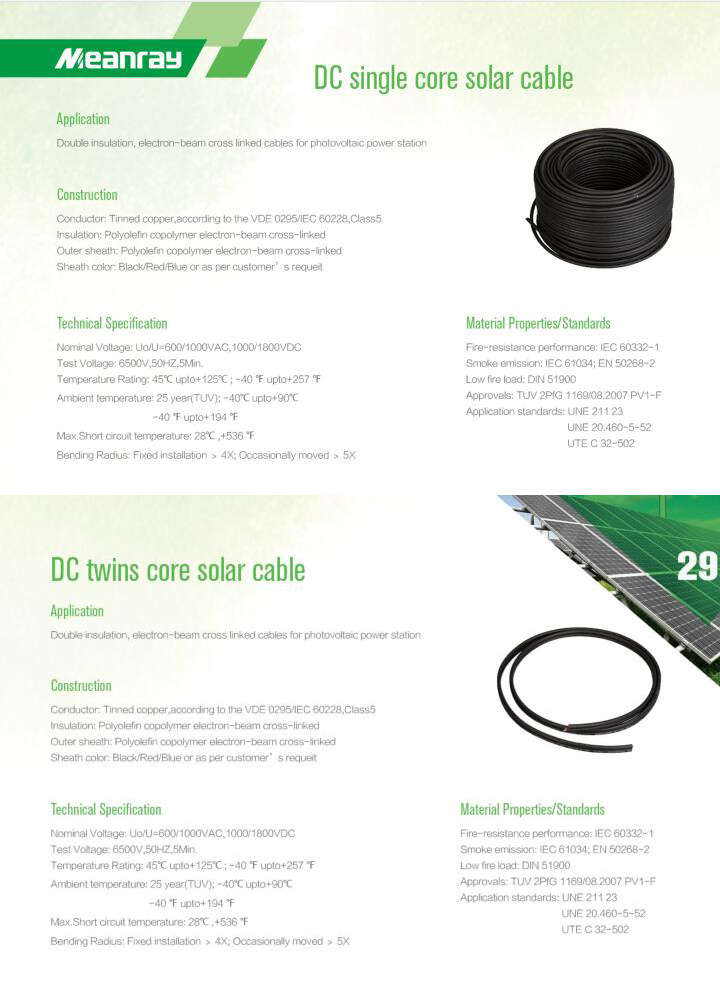

TUV PV Cable Fire Resistant Cables Twin Core DC Solar Cable
TUV PV Cable Fire Resistant Cables Description:A. Application:Double insulation,electron-beam cross linked cables for photovotaic power station.
Construction:Tinned copper,according toVDE0295/IEC60228,Class5
B. Material Properties/Standards:
1.Fire-resistant performance:IEC60332-1.
2.Smoke emission:IEC61034;EN50268-2
3.Low fire load:DIN51900
4.Approvals:TUV2PfG 1169/08.2007 PV1-F.
5. Application Standards:UNE211 23;UNE20.460-5-52, UTE C 32-502TUV PV Cable Fire Resistant Cables Technical Data:1.Nominal Voltage:U0/U=600/1000V AC, 1000/1800V DC ;
2.Test Voltage:6500V,50Hz,5Min.
3.Temperature Rating:45oC upto+125oC, -40oF upto+257oF, Ambient temperature:25years(TUV) -40oC upto+90oC, -40oF upto+194oF, Max.Short circuit temperature:280oC, +536oF.
5.Bending Radius:Fixed installation>4X Occasionally moved>5XTUV PV Cable Fire Resistant Cables Specification:| Construction | Conductor Construction | Insulation Thickness | Sheath Thickness | Outer ø | Resistance Max. | Current Carring Capacity | Approx Weight |
| n×mm² | n/m | mm | mm | mm | Ω/Km | A | Kg/Km |
| 2×1.5 | 30/0.25 | 0.7 | 0.8 | 8.3±0.2 | 13.3 | 30 | 7.2 |
| 2×2.5 | 50/0.25 | 0.7 | 0.8 | 9.2±0.2 | 7.98 | 41 | 9.4 |
| 2×4.0 | 56/0.3 | 0.7 | 0.8 | 12.0±0.2 | 4.75 | 55 | 14.2 |
| 2×6.0 | 84/0.30 | 0.8 | 0.9 | 13.5±0.2 | 3.39 | 70 | 20 |
| 2×10.0 | 142/0.30 | 0.9 | 1.1 | 17.6±0.2 | 1.95 | 98 | 29 |
| 2×16.0 | 228/0.30 | 1.1 | 1.1 | 19.8±0.2 | 1.24 | 132 | 43 |
Conductor: Tinned Copper,according to VDE0295/IEC60228,Class5
Insulation: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Sheath: Electron-beam cross-linked Polyolefin Copolymer TUV 2PfG/1169
Nominal Voltage : AC 600/1000V DC 1000/1800V
Characteristic: Heat-resistant flame retardant,UV/ozone/hydrolysis/climate resistance
Sheath Color :Black or as per customer's requeit
Temperature Rating:45°c upto +125°c -40°F upto +257°F
Ambient temperature:25years(TUV) -40°c upto +90°c -40°F upto +194°F
Max.Short circuit temperature:280°c,+536°F
Bending Radius:Fixed installation>4X Occasionally moved>5X

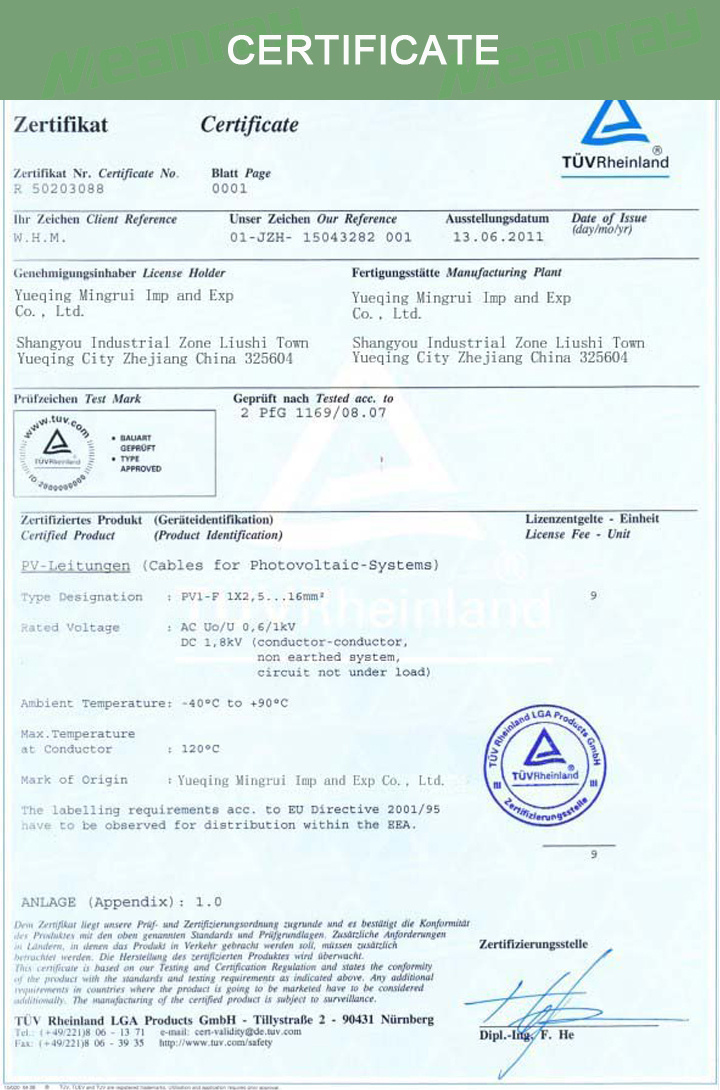

Solar Cable Certificate:

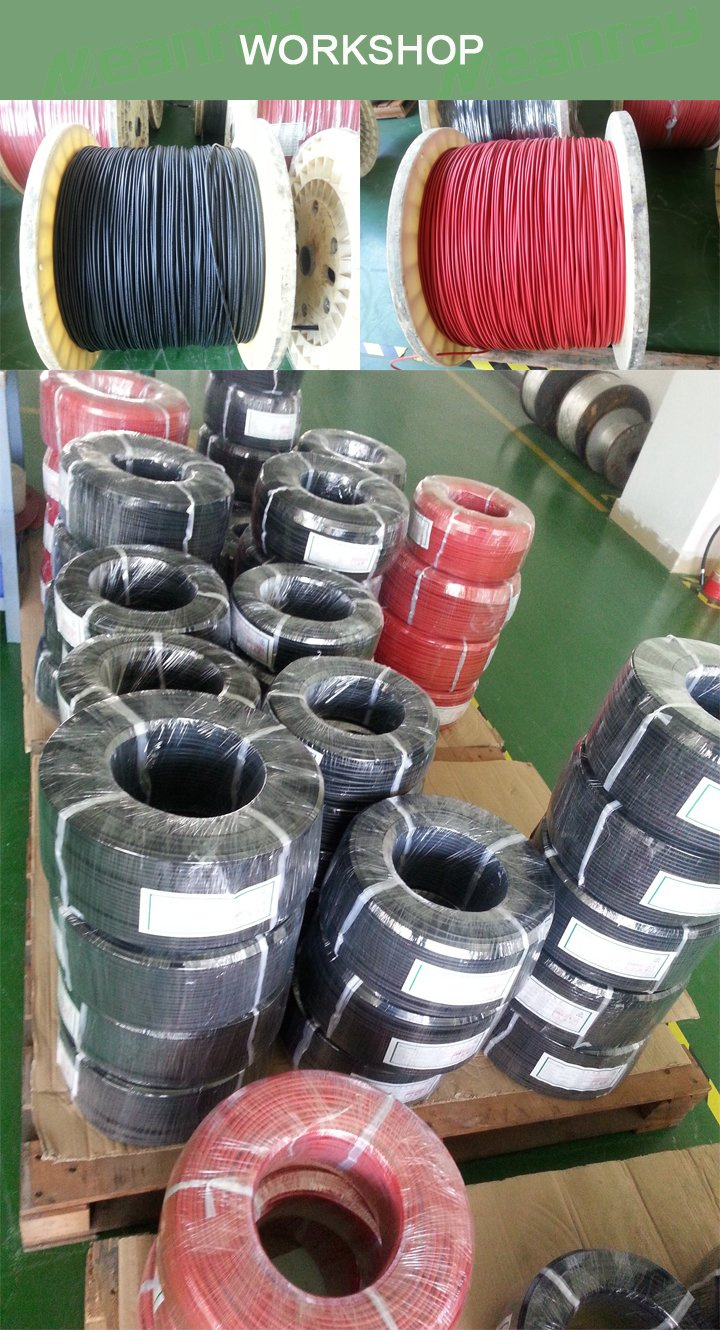

Solar Cable Workshop:

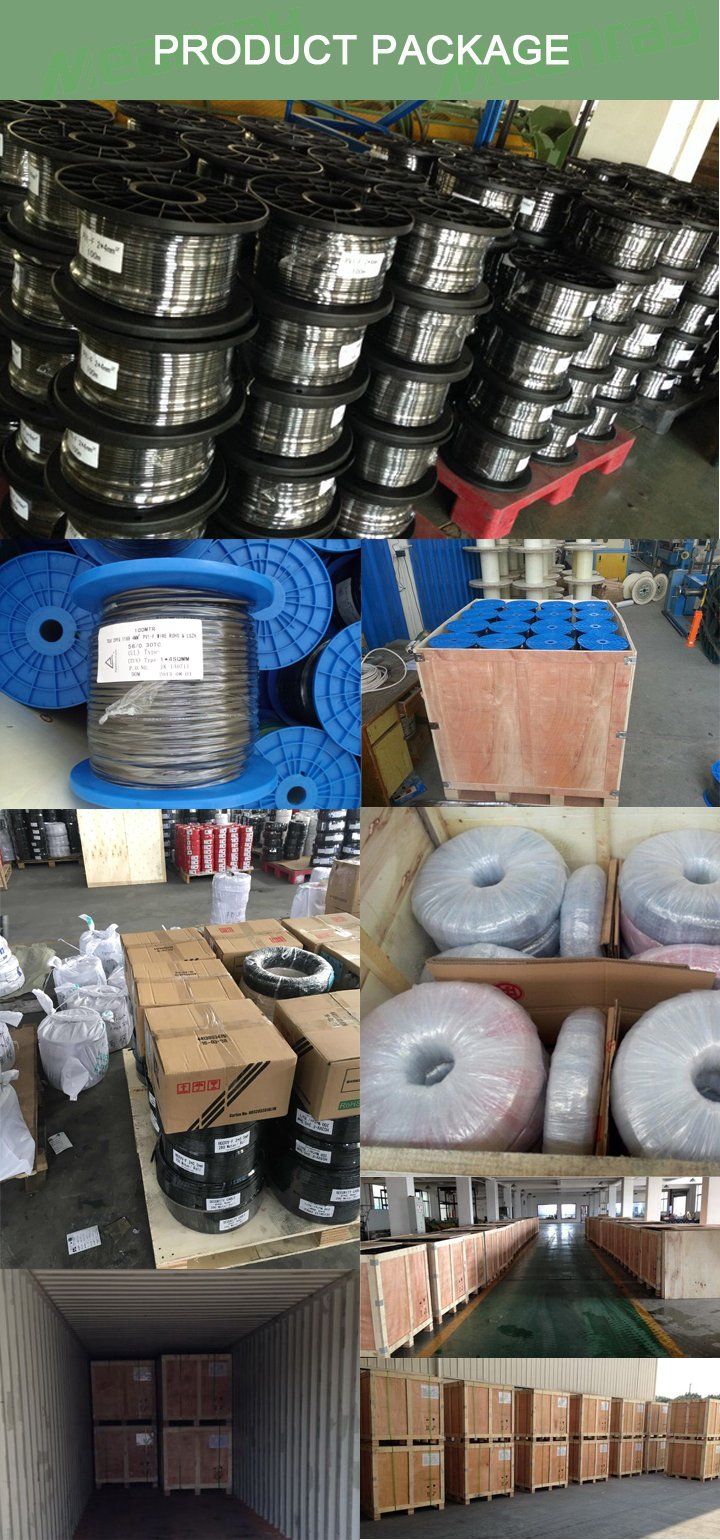

Solar Cable Package:

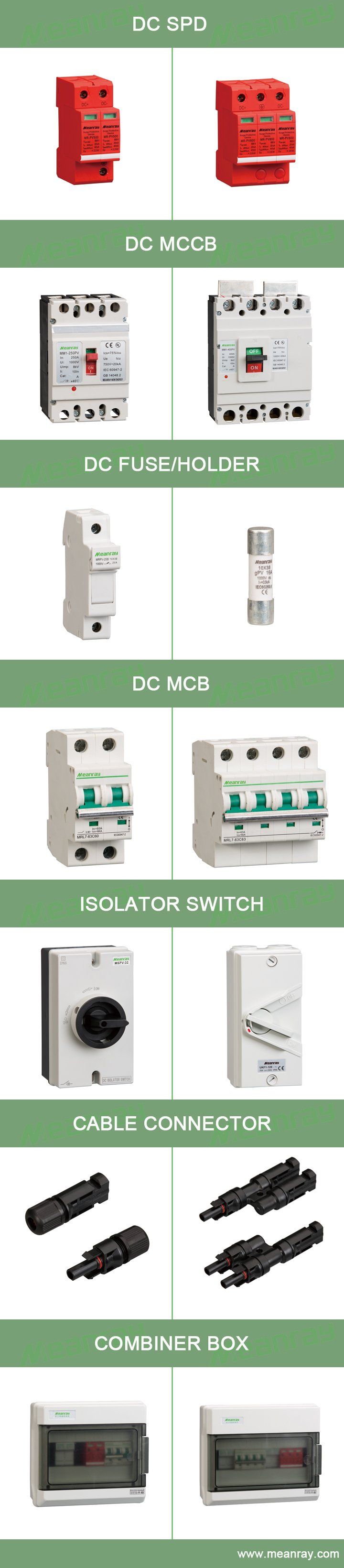

Related Products:
Zhejiang MEANRAY is committed to the field of new energy, specializing in solar photovoltaic and wind power products. It is a company which engaged in research and development, production, sales and after-sales. After years of intensive development in the field of new energy and electrical industry, it has become the main manufacturer of new energy electrical appliances in China, and has become the international famous brand OEM partner.

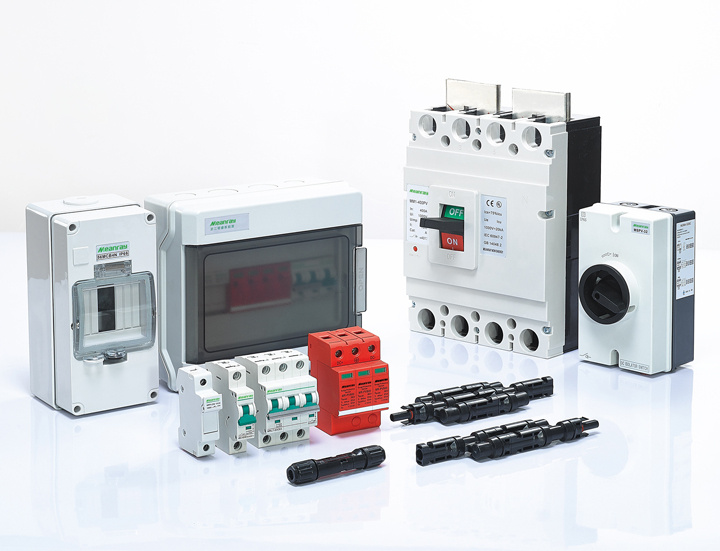

The wide range products under our manufacturing covers DC Circuit Breaker, Surge Protector Device, DC MCCB, Fuse, Isolator switch, PV Combiner box, Solar Cable, MC4 Connector, Distribution Box and Switch. All products are in strict accordance with the international Electrotechnical Commission standards and national and industry standsard production. Products have passed CE, CB, SAA, NEMKO, VDE, CCC certificates. Products are widely used in solar power, wind power, metallurgy, electromechanical, railway, ship, port, petrochemical, iron and steel, coal mines, residential areas, shopping malls and other industries of power supply control system.
The company has a modem management team and scientific research personnel. In line with people-oriented, relying on new technology and new products, adhere to the excellent quality and advanced products performance to meet the constantly changing market demand. Now has exported to Europe Spain, Italy, Holland, Southeast Asia, Australia, the Middle East and other international markets.
In the face of a new future, the company will adhere to the purpose of "honesty, steadfast, quality and trust", relying on advanced modern enterprise management, deepening the internal management of enterprises, comprehensively promoting the quality assurance system, and developing the spirit of "serving customers". Adhering to the concept of "service and trust", the professional service team participates in the whole process. Strive to bring high quality shopping experience to each customer. Strive to create a new era of shopping.
Save limited energy, clean the world...MEANRAY together with you.
