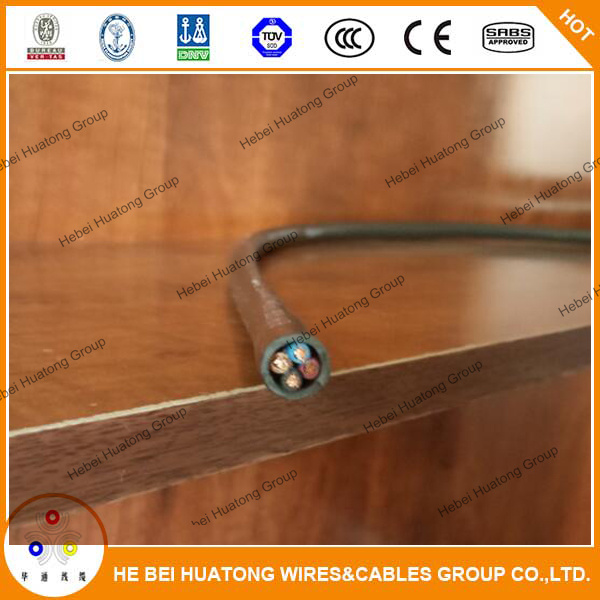

TYPE TC TRAY CABLE
CONTROL / INSTRUMENTATION CABLE
VNTC / UL Type TC / TC-ER Rated
600 VOLTS
90°C DRY/75°C WET
PVC/Nylon Insulation with Overall PVC Jacket
UL 1277 standard tray cable TC
APPLICATIONS:
Type TC Control Cable is for use in industrial power or control circuits where small diameter, flame retardant cables are desired. Primary installations include cable trays, raceways, and outdoor locations where supported by a messenger wire. Conductors may be used at temperatures not to exceed 75°C in wet locations or 90°C in dry locations.
SPECIFICATIONS
Type TC Control Cable meets or exceeds the applicable requirements of the following standards and
specifications:
• ASTM - (All applicable standards)
• UL 1277 Electrical Power and Control Tray Cables
• NFPA 70 (NEC)
• ICEA S-58-679 - Control Cable Conductor Identification Method 1, Table 2

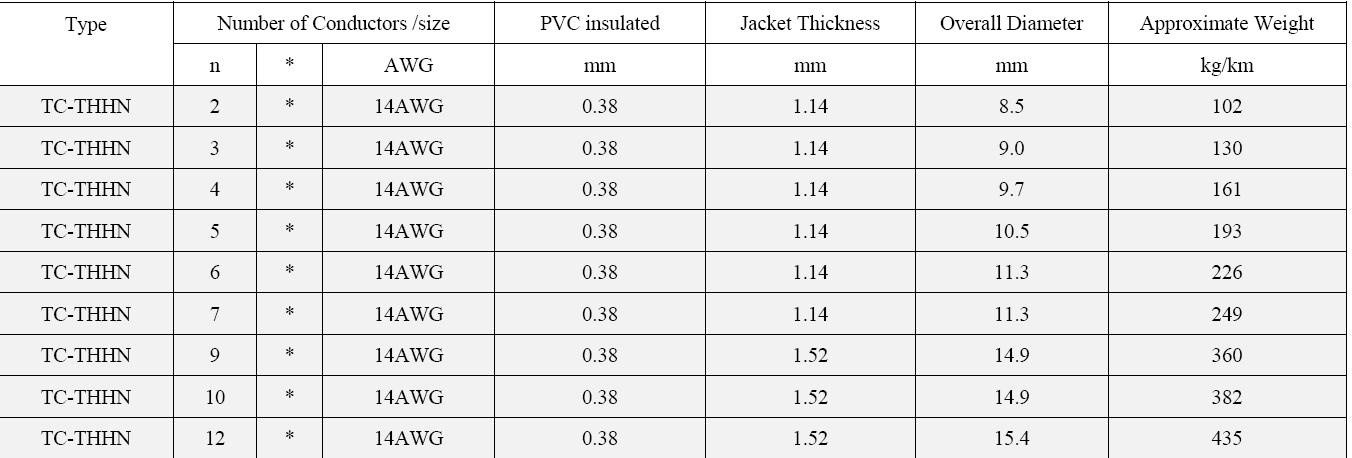

CONSTRUCTION
Type TC Control Cable is available in sizes 14 AWG through 10 AWG, with multi conductor constructions of two through 37 conductors. The product uses Type THHN or THWN conductors in sizes 14 AWG through 10 AWG .Individual conductors are bare annealed copper covered with a polyvinyl chloride (PVC) insulation over which a nylon (polyamide) or UL listed equal jacket is applied. The overall jacket consists of a heat, moisture and sunlight resistant PVC. Non-halogen jacket available upon request.
Company insulation:
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We are OEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
Packing:

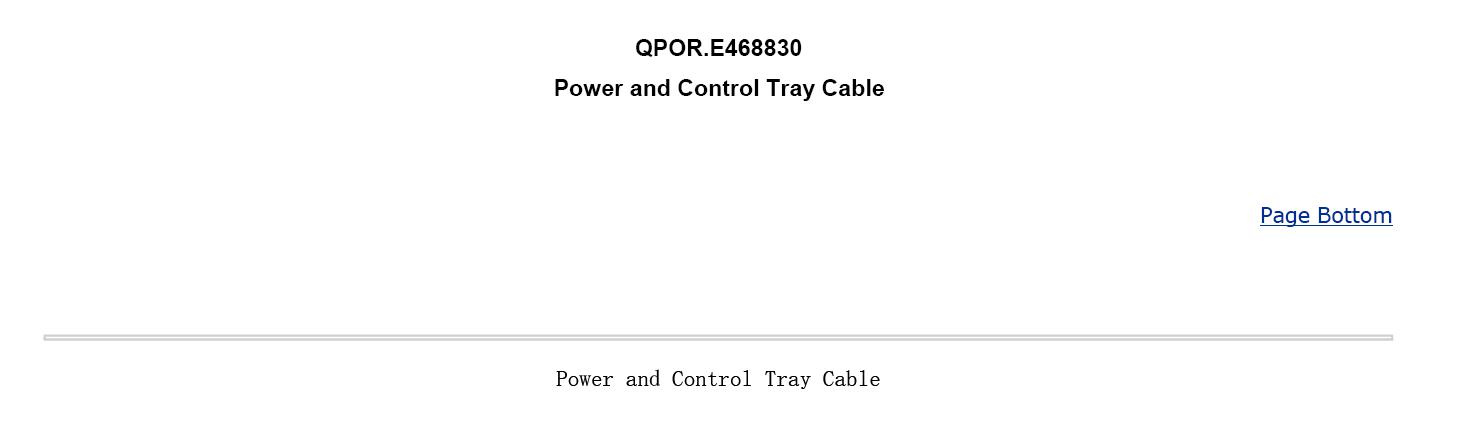

Certification:
Our servies:
1. 24 years production experience and 15 years export experience .
2.high-end Machinery and equipment for high quality cable .
3.manufacture various of cable :power cable,control cable,abc cable,submersible oil pump cable,rubber cable,elevator cable,electric cable...
4. products certification :UL,CE,BV,TUV,KEMA,PSB,SABS,ABS,NK,LR,KR,GL,DNV:
system ceryification:ISO9001,ISO14001,OHSAS18001
5.our product sells all over the world and has the good reputation.
6.professional teamwork service for you actively.
7.quick solution and long time online time waiting for your inquiry.
8.rapid delivery and feedback.
9. Stock available, Free sample
10.We can do that you expect

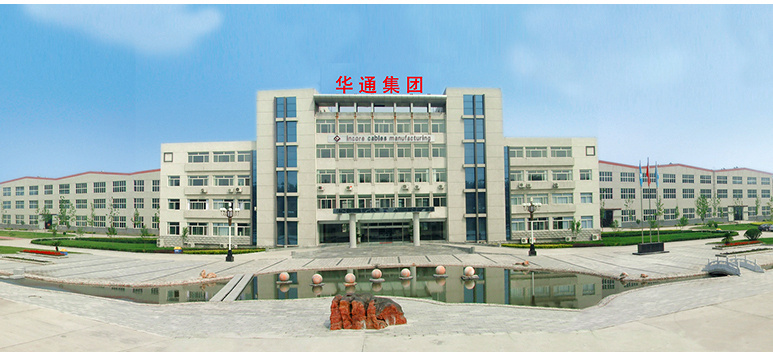

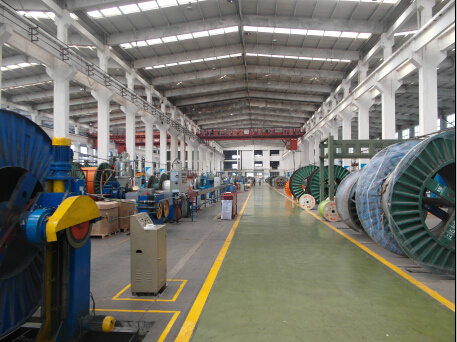

Established in 1993, Hebei Huatong Wires and Cables Group Co., Ltd covers an area more than 220, 000 square meters, owning more than 420 sets manufacturing equipment and more than 250 sets of testing equipment or apparatus. Our annual production capacity is 3 billion Chinese Yuan. Now there are more than 800 employers in our company, among which more than 150 are technicians. With the continuous efforts from all the employers, Hebei Huatong Wires and Cables Group Co., Ltd has realized great development to become a modern enterprise and one of the comprehensive, large-scale enterprises in domestic wire and cable industry. Our products are widely used in the field of electric power, coal, metallurgy, petrochemical industry, railway, national defense, construction, aviation and other national key projects. We are JV with Furukawa(Japanese company) for rubber serial cable (minding cables, welding cables. Submersible oil pump cables, . )and also JV with Riken(Japanese company) for elevator cables. Our products have extensive influence and good reputation in both domestic and worldwide market, such as the United States, Holland, Italy, Russia, Britain, Australia, New Zealand, Ethiopia, Ghana, Algeria, South Africa, Congo, Middle East and Southeast Asia countries and so on.
Products: Power Cable, Rubber Cable, UL standard building wire cable
Certificates:
Certificate of UL. CE, KEMA, TUV, Bureau Veritas, Lloyd, IEC, GL, SA, NK, KR and "National Industrial Production License", "Certificate of Recommended Enterprises and Products for National Grid", "Adopting International Standard Certificate", and "High-Tech Enterprise Certificate", "Certificate of High Quality Products", "Certificate of Scientific and Technological Achievements", "Qualified Supplier Certificate", "China Classification Society Certificate of Works Approval", "Det Norske Veritas Type Approval Certificate", "Railway Product Certificate", "Safety Certificate of Approval for Mining Products", "National Mandatory Product Certification", "Certificate for China Compulsary Products Certification" and "Practical New-Type Patent Certificate"
