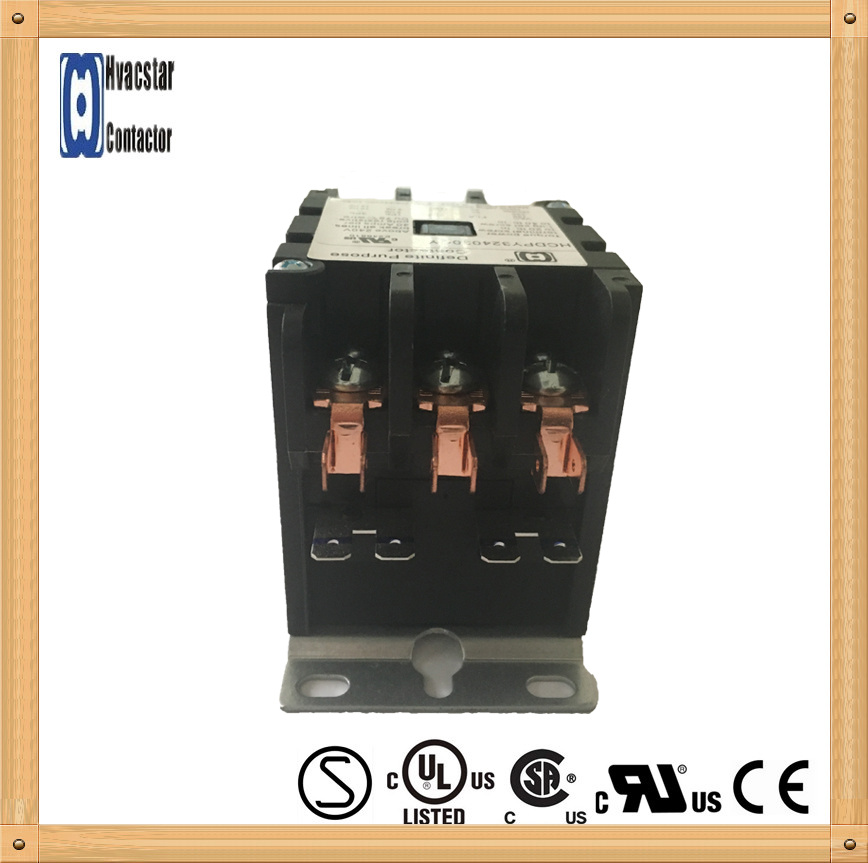

UL CSA Approved 3 Poles Contactor with Good Quality

Name: UL CSA Approved 3 Poles Contactor with Good Quality
Brand: all-electronics-online.com
SKU: 819371545
Availability: InStock
Rating: 4.5 (45 reviews)

Price:	US $ 2.7-3.5/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	SA-3P-30A-24V
Color:	Black
Certificate:	Ce, UL, CCC, S, CSA
Material:	High Arc-Resistant Phenolic Resin
Application:	Refrigeration, Air Conditioning and Heating
Electrical Life:	1, 000, 000(AC3)
Mechanical Life:	10, 000
Frequency:	50/60Hz

Product Description

About Us

Mingguang Hecheng electrical Co.,LTD , is a master of manufacturing all Kinds of Contactors (including

DP Contactors, LC1 series contactors , Founded in Mingguang City,

China, in 2005, stepped into the HVAC industry as a reliable source .

Our strongest domestic suppliers and our vast experience with global trading, allows us to bring the

most innovative and highest quality products available to our customers.

Item Specifications

F/L Inductive Amps	30
Poles	3
Resistive Amps	40
Coil Voltage	24
Hertz	50/60
Locked Rotor Amps 240/480/600	180/150/120

This Item Replaces

Siemens	42BF35AJBBV
GE	453AC3HAA
Gemline	GDP3030
Hartland Controls	HCCY3XQ02AT303

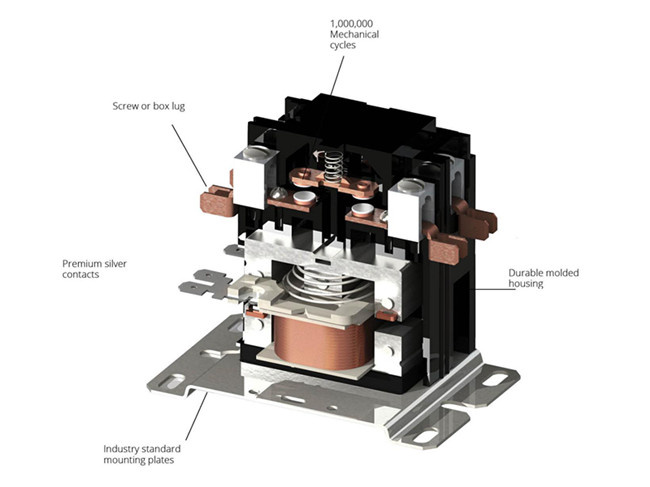

Premium Silver Alloy contacts designed for long lifeShock-resistant actuator arms provide mechanical durability Durable Molded Plastic Housing Industry standard mounting plates Compact Design, easy to install .
Options:
1, 2, 3 and 4 Pole Configurations 24, 120, 240 and 480 VAC Coils Wide range of electrical ratings Screw, Box or Pressure Plate Connections NEMA mounting base
NO/NC End Switch Kits

Technical Specifications:
Electrical Contact Ratings: 20 to 90 Amps Electrical Coil Ratings: 24 to 600 VAC Life Rating: 100,000 & 250,000 Cycle Options

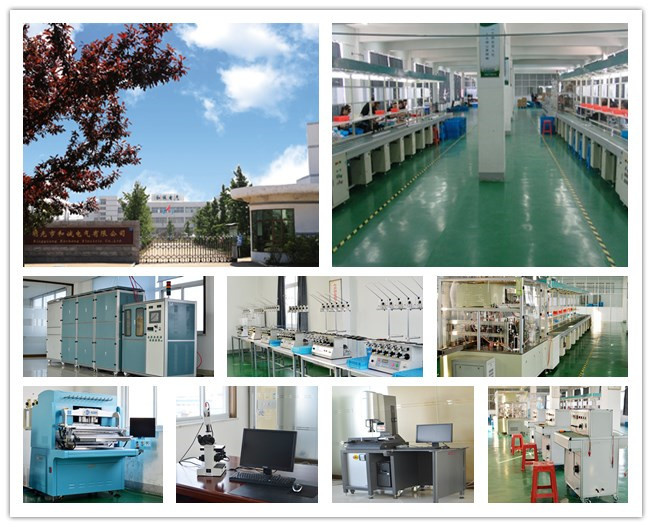

Workshop:

Certificates:

Contact Us:

Mr.ZHOU

M:+86 15397306728

24 hours online. Please feel free to contact me.

Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.

We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.

If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
