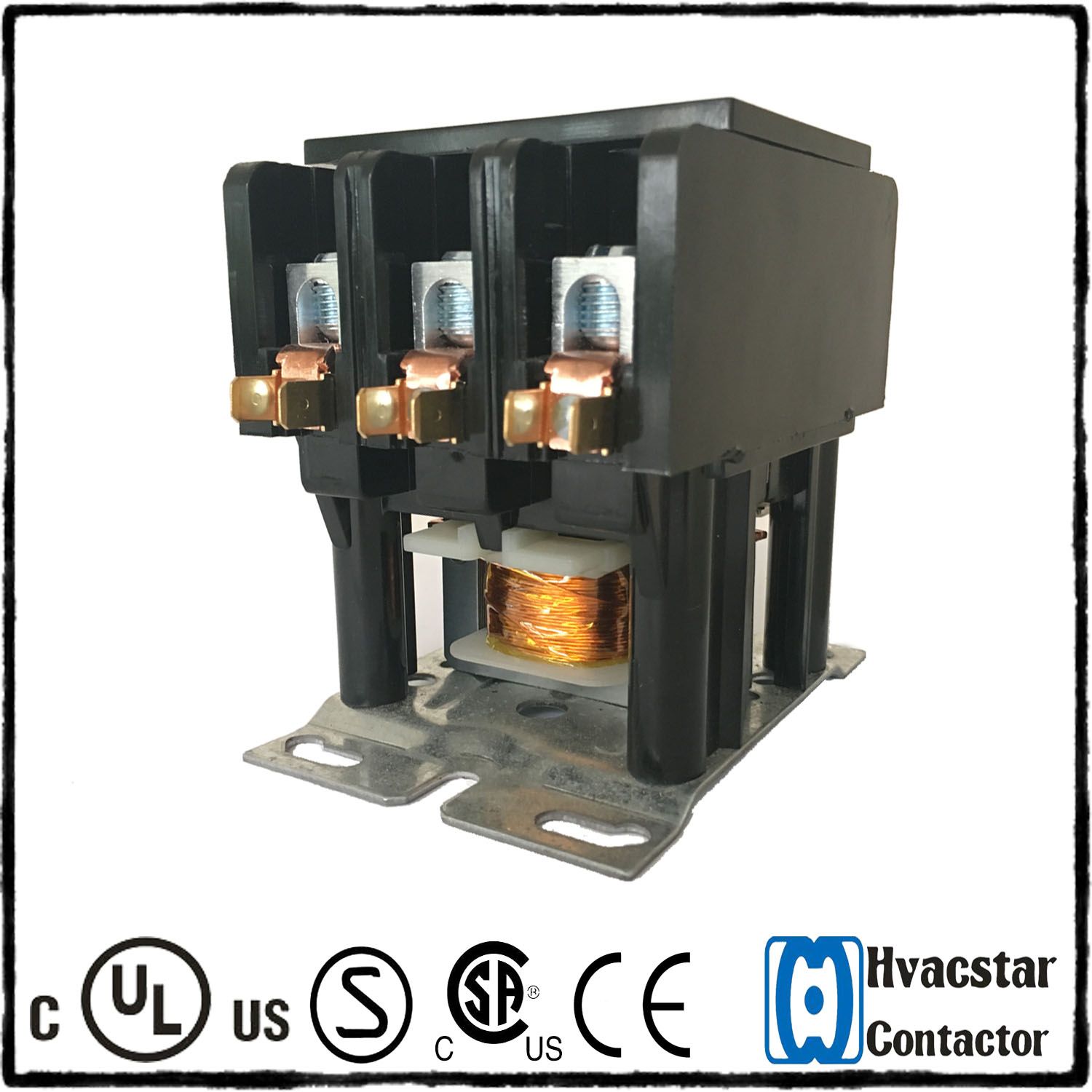

SA-3p-60A-120V AC Contactor for Home Application Ce/UL/CSA Approval

Name: SA-3p-60A-120V AC Contactor for Home Application Ce/UL/CSA Approval
Brand: all-electronics-online.com
SKU: 819571915
Availability: InStock
Rating: 4.8 (51 reviews)

Price:	US $ 11.39-15.41/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

SA-3p-60A-120V AC Contactor for Home Application Ce/UL/CSA Approval

Products Application
SA series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of UL/CSA.

Products Details

FLA	60

Poles	3
Resistive Amps	75
Coil Voltage	120
Hertz	50/60
Locked Rotor Amps 240/480/600	360/300/240
Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options.
Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits.
Terminations:#10-32 screw - 20, 25 & 30 FLA Models, Box Lug - 40, 50, 60, 75 & 90 FLA Models

WHY CHOOSE US:
Fast delivery
Competitive price
Good after-service
OEM/ODM available
Continuance service and support
Quality reliability and long product life.
18-year manufacturing &export experience
Attending more than 5 kinds of international exhibition per year
Do business with world famous company

FAQ:
Q1: Can I get a sample for testing?
           A: Yes, warm-welcomed for sample purchase.
Q2: Can I print my logo on the products?
           A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
          A: Full-refund policy in case of quality problem.
Q4: Do you have inspection procedures for products?
          A: Our products100% self-inspection and testing before packing.
Q6: How about delivery time of the order?
          A: 15-20 days after deposit.
Q7: How about payment terms?
          A:  30% deposit, the rest payment balance against B/L copy .

Contact Us:
We hope we can be your honest supplier in china, in case we do not have chance to serve you in your business, we hope we can be good friends. "Betty Hu" CALL me on +8618267833685

Prod Model:	SA-3P-60A-120V
Color:	Black
Certificate:	UL, CCC, S, CSA, Ce
Material:	Bakelite
Application:	Refrigeration, Air Conditioning and Heating
Delivery Date:	35 Days After Deposit
Insulation System:	Class F 155ºC
Coil Voltage:	120V
Mechanical Life:	1, 000, 000 Times
Electrical Life:	250, 000 Times
Frequency:	50/60Hz

Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.

We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.

If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
