Definite Purpose Air-Con AC Contactor cUL 2 Poles 40A 240V

Name: Definite Purpose Air-Con AC Contactor cUL 2 Poles 40A 240V
Brand: all-electronics-online.com
SKU: 819616355
Availability: InStock
Rating: 4.5 (139 reviews)

Price:	US $ 2.82-3.85/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

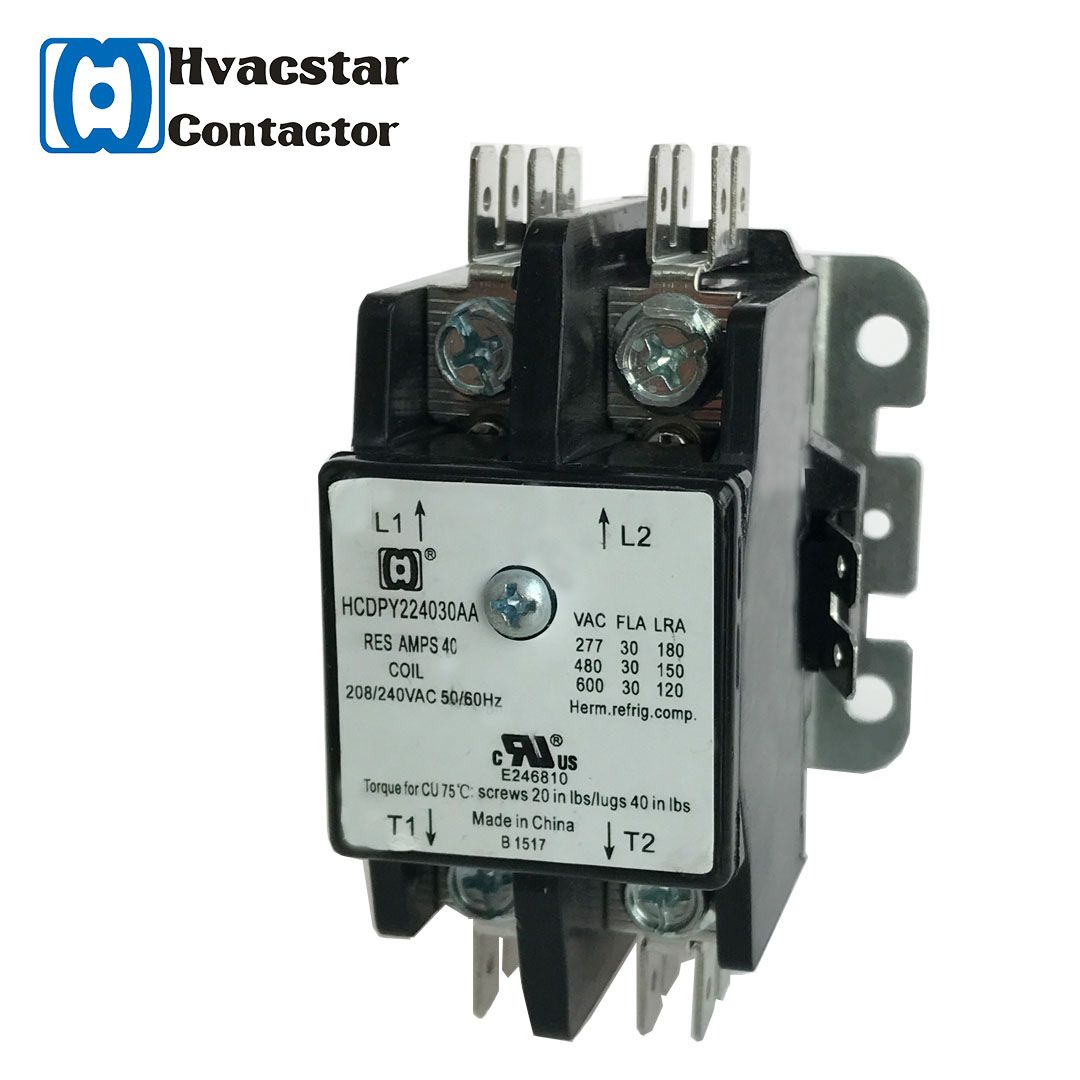

Definite Purpose Dp Air-Con AC Contactor with UL Certification Good Quality 2 Poles 40A 240V

Products Application
HCDP series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting and many other installations where a low cost, high performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standard of UL/CSA.

Products Details

FLA	40

Poles	2
Resistive Amps	50
Coil Voltage	240
Hertz	50/60
Locked Rotor Amps 240/480/600	240/200/160
Electrical Contact Ratings:20A-90A electrical coil ratings:24-600V life rating,100,000&250,000 cycle options.
Options:1,2,3,4 pole fits 24,120,240 and 480 VAC coils wide range of electrical ratings screw, box or pressure plate connections NEMA mounting base. NO/NC end switch kits.
Terminations:#10-32 screw - 20, 25 & 30 FLA Models, Box Lug - 40, 50, 60, 75 & 90 FLA Models
Temperature Range:- 40°F to + 150° F / - 40°C to + 65° C
Replaces: Furnas/42CF15AG,Furnas/45GG20AG,Furnas/45GG20AGL,Industry No./61442.

WHY CHOOSE US:
Fast delivery
Competitive price
Good after-service
OEM/ODM available
Continuance service and support
Quality reliability and long product life.
18-year manufacturing &export experience
Attending more than 5 kinds of international exhibition per year
Do business with world famous company

FAQ:
Q1: Can I get a sample for testing?
           A: Yes, warm-welcomed for sample purchase.
Q2: Can I print my logo on the products?
           A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
          A: Full-refund policy in case of quality problem.
Q4: Do you have inspection procedures for products?
          A: Our products100% self-inspection and testing before packing.
Q5: How about delivery time of the order?
          A: 15-20 days after deposit.
Q6: How about payment terms?
          A:  30% deposit, the rest payment balance against B/L copy .

Contact person: Betty Hu
Phone number: +8618267833685

Prod Model:	HCDPY224040
Coil Voltage:	240V
Certificate:	UL/CSA/Ce/S Mark/CCC
Material:	BMC
Application:	Refrigeration, Air Conditioning and Heating
Coil Insulation:	Class F-155
Color:	Black
Frequency:	50/60Hz
Mechanical Life:	1, 000, 000 Times
Electrical Life:	250, 000 Times
Delivery Time:	15 Days After Deposit

Mingguang Hecheng Electrical Co., Ltd., has been working on developing high quality Definite Purpose Contactor since estalished in 2004.We have experience in supplying to Hartland Controls, ABB Controls, Zettler Controls, Fasco, Packard Inc & Supco directly and indirectly.

From the business with the companies mentioned and the help from them, we've established a good process control system including Supplier Evaluation and Choice, Coiling Process& Inspection, General Assembly and Inspection, Packing and Delivery.With support from them and our rich Supply Chain Management (SCM) experiences, we are operating our business successfully.

We take care of all vital aspects so that our customers can focus on their customers.Our experienced engineers/inspectors are involved in all the important steps for quality control during production so that all our exported goods are perfectly in compliance to our customers' requirements.And all the members in our supply chains are selected carefully under our Supplier Evaluation Program established strictly according to ISO9001 system.

If you are interested, please try to contact us and take a try.We shall make you confident that this is the right company you would like to work with.
