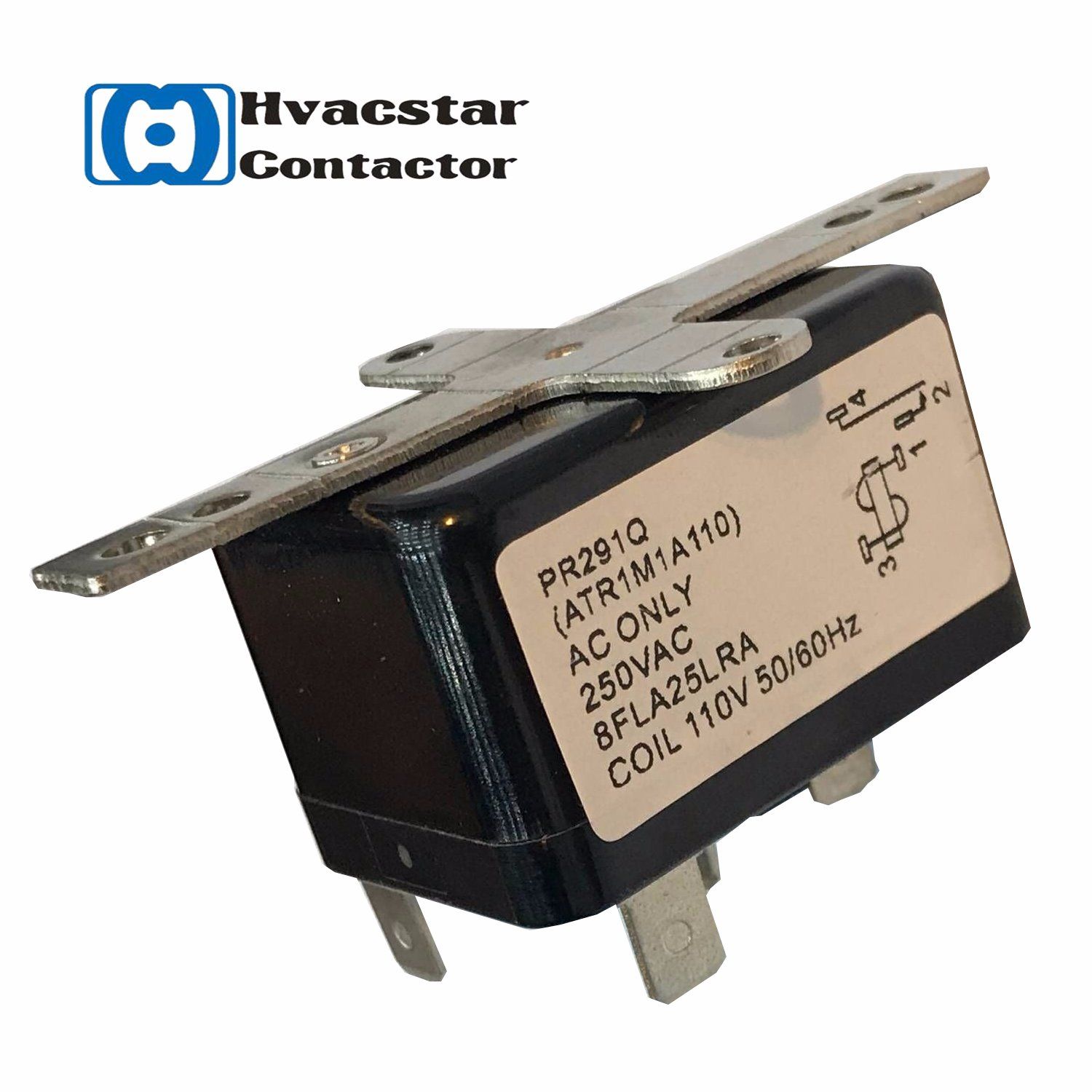

Universal High Power Fan Relay HVAC 16A 2.5kv

Name: Universal High Power Fan Relay HVAC 16A 2.5kv
Brand: all-electronics-online.com
SKU: 818819505
Availability: InStock
Rating: 4.3 (80 reviews)

Price:	US $ 2-3.5/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	ATR1M1D
Color:	Black
Other Services:	ODM OEM
Delivery Date:	35 Days After Deposit
Certificate:	UL

Product Description

Applications:

Air conditioners
Heat pumps
Water heaters
Other locations where a local disconnect is required

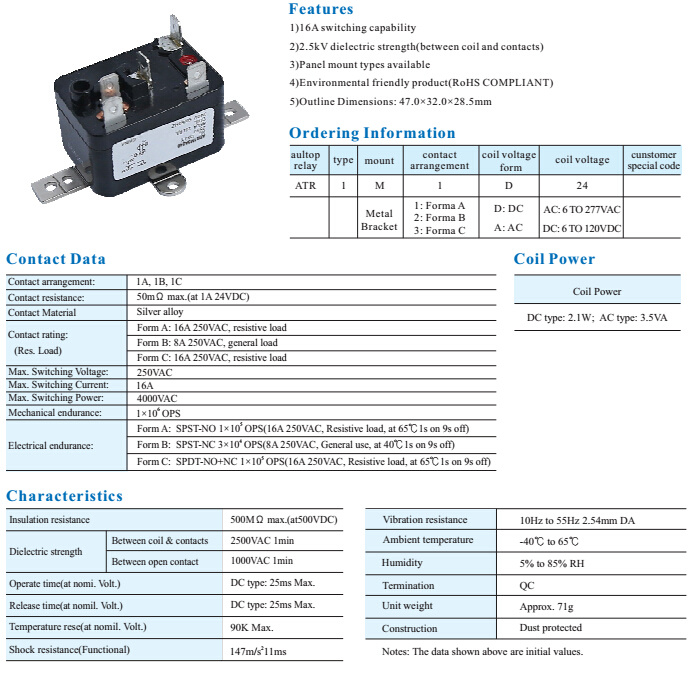

Specifications:

Amps Resistive	16
Coil Voltage	24
FLA/LRA at 250 Volts	8/25
Switch Type	SPST-NO

Replaces:

White-Rodgers	90-290
RBM	90-290Q
Mars	90290

FAQ
       Q1: Can I get a sample for testing?
           A: Yes, we could offer free sample, but shipping cost should be paid at customers' side .
       Q2: Can I print my logo on the products?
           A: Yes, OEM and ODM are available.
Q3: How can I get the after-service?
          A: If quality problem happen we promise re-send the item .
       Q4: Do you have inspection procedures for products?
          A: Our products100% self-inspection and testing before packing.
Q6: How about delivery time of the order?
          A: 15-20 days after getting deposit.
Q7: How about payment terms?
          A:  30% deposit, the rest payment balance against B/L copy .
