Universal Wireless RF Remote Motor Controller for Forward & Reverse

Name: Universal Wireless RF Remote Motor Controller for Forward & Reverse
Brand: all-electronics-online.com
SKU: 823485005
Availability: InStock
Rating: 4.6 (31 reviews)

Price:	US $ 6.5-8/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Universal Wireless RF Remote Motor Controller for Forward & Reverse

The product is one of wireless remote controller which work with high directly current, pressing button "UP, STOP, DOWN" on the remote control to make motor forwards, stop, reverse. When motor run the right position, it will trigger limit switch and stop immediately, it supports 30A of momentary current and 20A of continuous current. It is widely used in controlling curtain, electronically gate/window etc.

Technology data

Model	KL-CLKZ02G
Name	Remote Motor Controller
Operating voltage	DC 10.5V-40V
Quiescent current	10-30mA
Max load	20A
Frequency	315MHz / 433MHz, optional
Receiving sensitivity	-103dBm
Coding Type	Rolling Code
Size	926024mm(without case)

Description of the learning buttons
K1: Motor Reverse
K2: Stop
K3: Motor Forward

How to add/delete remote controls

Match Code: Press the learning button K1 momentarily on the PCB, LED indicator flashes once, then press the UP/DOWN key of remote control. If the LED blinks 3 times, it means learning successfully. Repeat above procedure to DOWN/UP and STOP.
If need to add more remote controls, just repeat step 1. Each button stores maximum 7 groups of different address code.
Delete Code: Hold the learning button for over 3 seconds until LED indicator from on to off, then release finger, delete successfully.

Additional function:

1. Working Mode Change:Jumper on S1: Latching (Press Up, Motor goes up; Press Stop, Motor Stops; Press Down, Motor goes down.)
No jumpers on S1: Momentary Mode (Press and hold Up, Motor goes up; Release, Motor stops.)

2. 120s Time delay OFF:Jumper on the holder, function enabled; (In this mode, the motor will go up/down maximum 120s then stop automatically, no matter whichever the working mode is.)
No jumpers on the holder, function disabled.

3. 3-Pin Manual Switch:
Connect UP to GND, motor goes up. Connect DOWN to GND, motor goes down.
Manual switch has the highest priority.

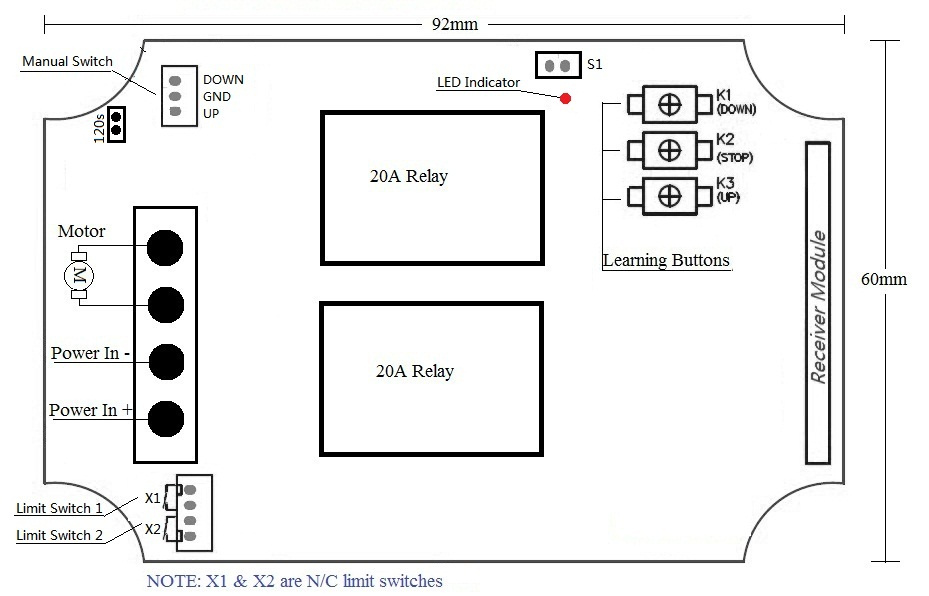

Diagram:
DC10.5-40V Remote Controller for Motor Turning Kl-Clkz02g

DC10.5-40V Remote Controller for Motor Turning Kl-Clkz02g

Shipping

1) Express: DHL, FedEx, UPS, TNT, EMS, etc.

2) By air

3) By sea

4) By special line

Depends on buyer's requirement.

About Us

Shenzhen Kelvin Electronics Co. Ltd. is a professional manufacturer of security Products with obtaining ISO9001:2000 quality system approval, CE approval and RoHS certification.Our products mainly include smoke detectors, door sensors, home alarm systems, panic buttons, wireless remote controls (or switches), wireless transceiver modules, etc.They are comply with international quality standards and are sold to North America, South America, Eastern Europe, Southeast Asia and other world market.....

DC10.5-40V Remote Controller for Motor Turning Kl-Clkz02g

Prod Model:	KL-CLKZ02G
Operation:	Manual + Remote
Operating Frequency:	315/433.92MHz / Customized
Modulation Way:	Ask/Ook
Receiver Sensitivity:	-95dBm
Encoding Type:	Learning Code EV1527
Output Way:	Output Power (Make Motor Forward and Reverse)
Channel:	2
Weight:	170g
Type:	Electronic
