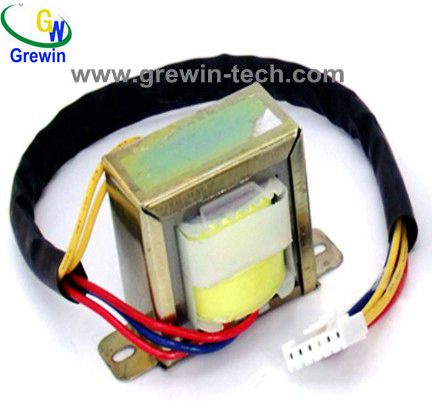

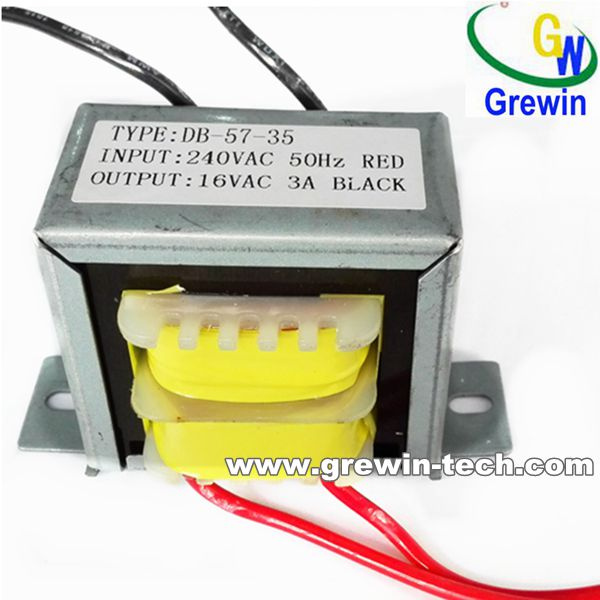

UPS Customized Single Phase Transformer
| Price: |
US $ 0.7-1.3/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
500/Piece |
| Pay Type: |
L/C,T/T,D/P,Western Union,Paypal |

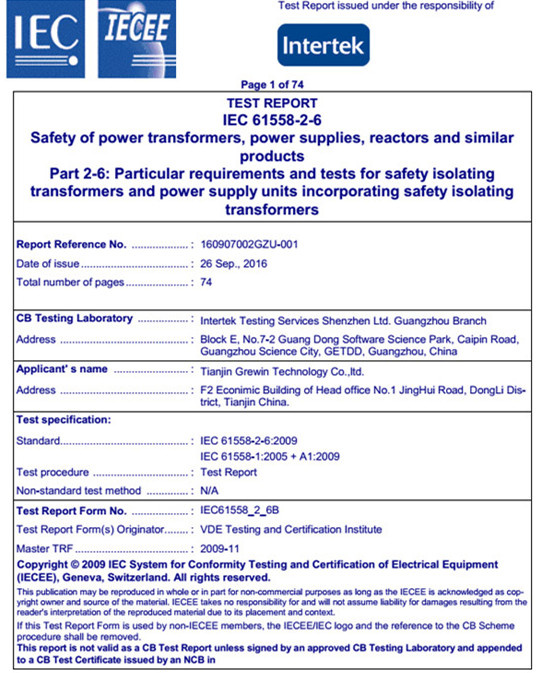

We have passed ISO9001:2015,CE,SGS approval and IEC report
1.Product Specification:1). Models:EI28, EI30, EI35, EI41, EI48,EI57, EI66, EI86, EI96, EI105, EI114, EI133, EI152, EI162 etc.2). Maximum output: 1.2W, 2W, 4W,12W, 20W, 35W, 40W, 50W, 90W, 180W, 200W, 400W, 600W, 850W, 1500W, 2400W, 2700W etc.3). Input:100Vac, 110Vac, 115Vac, 120Vac, 220Vac, 230Vac, 240Vac etc.4). Output:AC(0--380V); DC(0--50V)2.Technical Parameter Table:
Model | Power | Dimension(cm) | Weight (KG) | Voltage Regulation | Approval Mark |
A(cm)
±1.5 | B(cm)
±2 | C(cm)
±2 | D(cm)
±2 | E(cm)
±2 |
| GWT-EI28 | 1.5W | 43 | | 30 | 38 | 28 | 0.11 | 35 | CE,TUV, |
| GWT-EI35 | 3.0W | 47 | | 37 | 38 | 33 | 0.15 | 22 | CE,TUV, |
| GWT-EI41 | 11.0W | 54 | | 43 | 47 | 35 | 0.32 | 16.5 | CE,TUV, |
| GWT-EI48 | 25.0W | 62 | | 50 | 65 | 43 | 0.57 | 13.1 | CE,TUV, |
| GWT-EI57 | 40.0W | 73 | | 59 | 65 | 51 | 0.84 | 11.8 | CE,TUV, |
| GWT-EI66 | 80.0W | 83 | | 68 | 80 | 58 | 1.38 | 9.3 | CE,TUV, |
| GWT-EI76 | 140W | 64 | 70 | 76 | 85 | 68 | 2.25 | 7.6 | CE,TUV, |
| GWT-EI86 | 180W | 72 | 75 | 86 | 92 | 73 | 2.82 | 7.1 | CE,TUV, |
| GWT-EI96 | 250W | 80 | 81 | 96 | 90 | 82 | 3.36 | 6 | CE,TUV, |
3.Application:1). Measuring instruments.2). Communication prducts.3). Medical instruments.4). Audio & Video5). Elevator6). Machinery4.Features: 1) Important components for electronic equipment and wireless equipment2) Power: 0.15-1,500W3) The transformer core is made of high quality silicone laminated steel4) All products are 100% test passed and hi-pot shock5) Clean, tidy, easy for installation 5.Advantage:1).UL, CUL, CE, ROHS, ISO9001:20082).We offer custom-made transformers, OEM and ODM are welcome3).We deliver the quality you expect at consistently competitive prices4).Transformer quality lifetime:10 Years.5).Specialty Sales service:5 -10 Years6).Transformers Test: 100% test before the shipmentAbout us:1. Tianjin Grewin Technology Co.,ltd. has always laying great emphasis on our core business philosophy "Quality and Honesty First ".

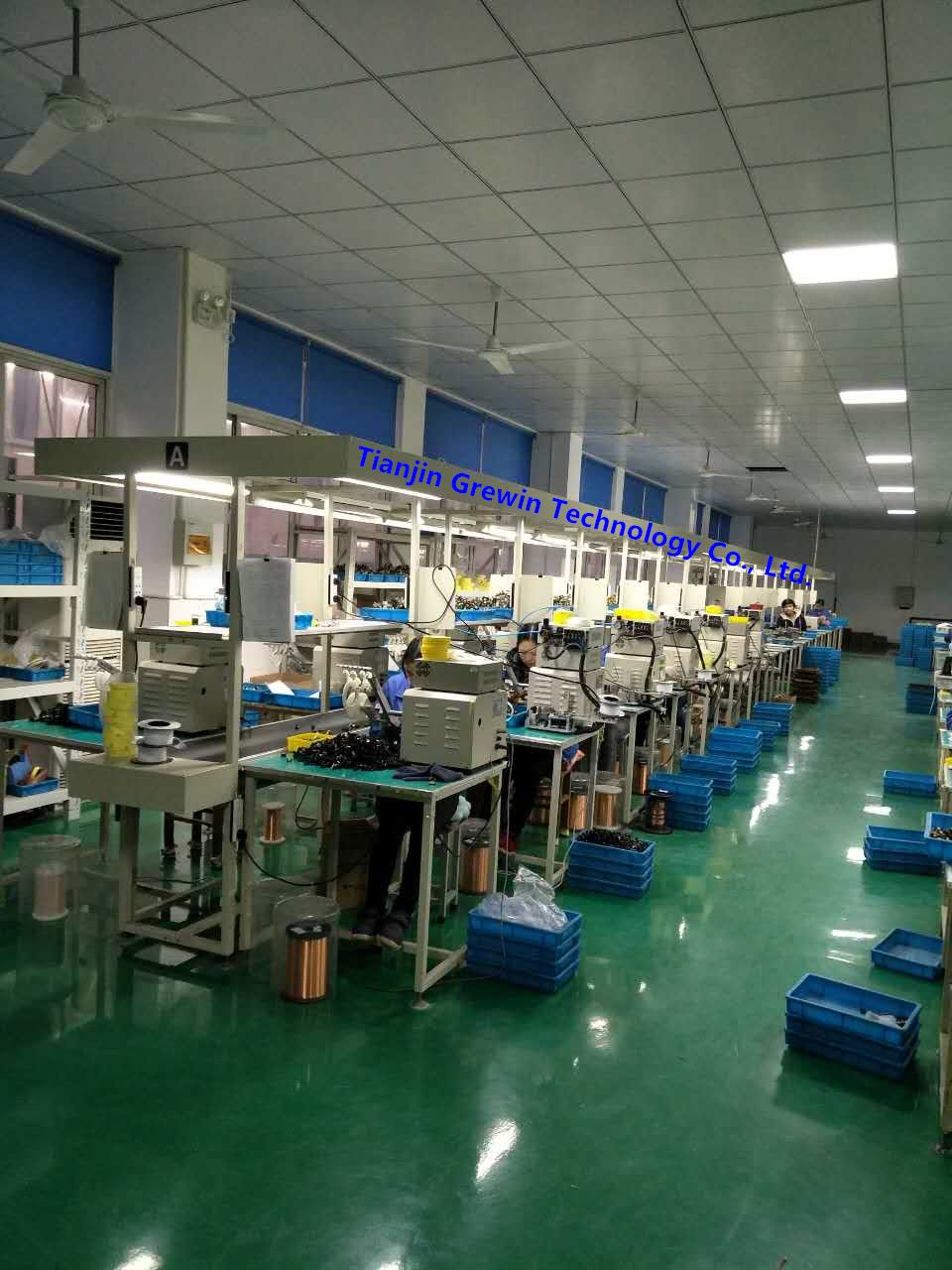

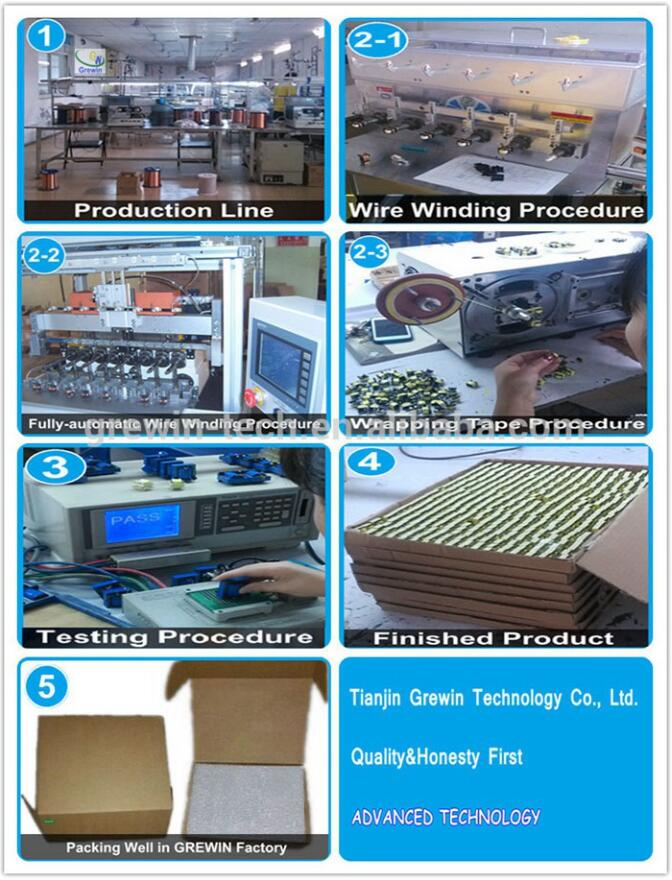

2.Terms of Shipment:Within 10 working days after received related prepayment or L/C.3.Payment terms:(1). T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days beforedelivery.(2). By irrevocable L/C at sight, to be issued immediately against confirmed order.(3). Payment by T/T, if order amount is less than USD 20,000.4.Production:
5.Flow chart of trading activities:
NO |
Step |
Days need |
1 |
Request for quotation |
1 day |
2 |
Making quotations |
1 day |
3 |
Offer and counter offer |
3 days |
4 |
Sending and receiving samples |
3-10 days |
5 |
Sample confirmation |
3 days |
6 |
Placing a firm order |
1 day |
7 |
Paying and receiving the down payment |
1-4 day |
8 |
Factory production & Quality inspection |
15-20 days |
9 |
Paying and receiving the balance |
4 days |
10 |
Delivery of goods |
1 days |
Contact us: Cathy
Tianjin Grewin Technology Co.,Ltd.Tel:86-22-84943756www.grewin-tech.com
| Prod Model: |
2va 8va 19va 26va 35va 60va 150va 210va 350va |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
AC380V-240V-230V-220V-120V-110V-100V |
| Different Mounting Types: |
Lead-Wire Type, Rack Type, Plug-in Type, etc. |
| Advantages: |
Low No-Load Loss, High Efficiency, Low Temperature |
| Power: |
0.15-1, 500W |
| Test: |
All Products Are 100% Test Passed and Hi-Pot Shock |
| Maximum Output: |
1.2W, 12W, 20W, 35W, 40W, 50W, 90W, 180W, 200W, 6 |
| Output: |
AC(0--380V); DC(0--50V) |
| Application1: |
1. Measuring Instruments;Communication Prducts. Me |
| Design And Custmize: |
Inductance, Coils, Transformers with Best Quality |
| Material: |
Silicone Laminated Steel |
| Application: |
Charger, Lamp, Communication Equipment |
| Phase: |
Single |
| Coil: |
Shell-type Transformer |
| Cooling Method: |
Dry-type Transformer |
| Winding Type: |
Auto-transformer |
| Certification: |
Ce |
| Usage: |
Ei Low Frequency Transformer for Audio, Lighting |
| Brand: |
Grewin Ei Low Frequency Transformer |
GREWIN as manufacture for Toroidal Transformer, current transformer, high frequency magnetics transformer, split core current sensor, clamp on CT, EI power Transformer etc. We have abtained ISO9001: 2015, IEC, CE, VDE, approval.
Our company have many advantages which can be your honesty and reliable supplier:
WHY CHOOSE US?
A. Business philosophy "Quality and Honesty First“
B. Over 40 years experience of transformer designing and producing.
C. Transformer 100% test before the shipment;
D. UL, CE, ISO9001: 2008
E. We offer custom-made transformers, OEM and ODM are welcome
F. We expect at consistently competitive prices
G. Transformer quality lifetime: 10 Years.
H. Professional experiences of the sales and engineers: 5 -10 Years
Grewin Mission: Growing together side by side, Mutual success hand in hand.
We sincerely invite you to join us to create a bright future.
