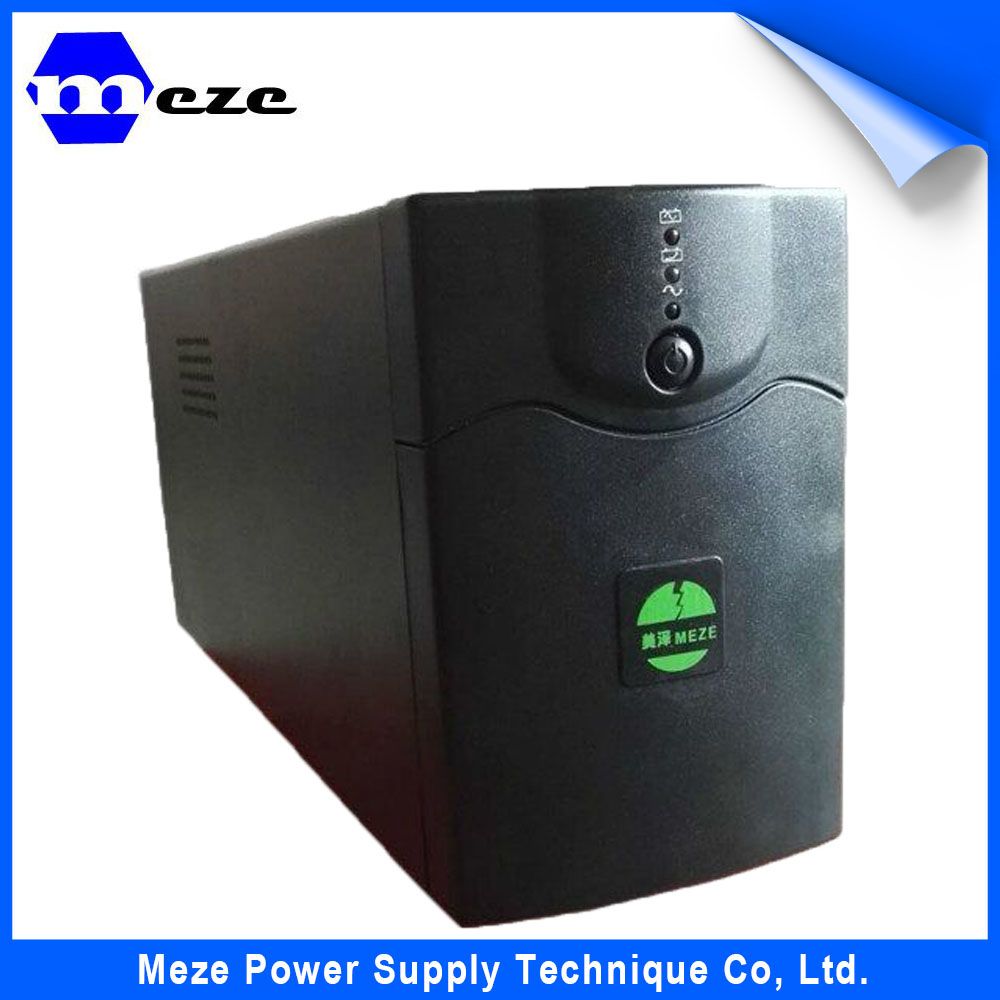

UPS Power Mini UPS System Offline UPS for Home

UPS power mini ups system Offline UPS for Home


Model MZT		C1KS	C1K	C2KS	C2K	C3KS	C3K	C6KS	C6K
capacity		1KVA/700W		2KVA/1400W		3KVA/2100W		6KVA/4800W
impot	voltage	160~300VAC(Three pin plug)						176~276VAC1P2W+G
	current	6A(max)		12A(max)		16A(max)		33A(max)
	frequency	50/60HZ±5%
	power factor	EN60555-(≥0.95)
output	voltage	220VAC±2%
	frequency	50/60HZ±5%
	current	4.55A		9.1A		13.6A		27.3A
	load power factor	0.7lag						0.8lag
	waveform	sine wave
	waveform distortion	Linear load<3%
		nonLinear load<5%
overload protection		>130%→30S>150%→10ms
transfer time		Zero interruption
Battery Type		Sealed maintenance-free lead-acid batteries
An external battery nominal voltage		36VDC		96VDC				192VDC
environment	Operating temperature	0-40ºC
	Relative humidity	0-90%
	altitude	<1500m
Communication interface		9pin D type connector(Rs232)
dimension(W+D+H)		145*405*220		195*455*350				240*500*460	248*500*616
Weight(kg)		7.5	13	15	32	16	33	18	57

MZC / 3 C series of intelligent high frequency pure on-line UPS, capacity include: single into single out 1 kva ~ 10 kva and  10 kva ~ 20kva
Product characteristics: C / 3 C series fully condensed the essence UPS cutting-edge technology, The whole machine adopts advanced 16-bit high-speed CPU control and 40 KHZ high frequency technology, small volume, light weight, high efficiency; Zero transfer and pure sine wave output is designed to ensure that the C / 3 C series UPS is widely used in all kinds of load. This series of products using concise interface information processing technology, the user can according to the display intuitively understand the running status of UPS, have fully digital automatic detection and protection function, remote monitoring function more reached the international advanced level, is a commercial server, PC server and peripheral equipment, communications and networking equipment, home office computer protector and other precision electronic equipment s and reliable electricity.
Areas of application: this series of products are widely used in data processing center, the host system, integrated computer network, ISP services, telecommunications, computer room, etc.
Main characteristics:
1. Intelligent digital, higher reliability
a.Microcomputer control
Innovative software program control mode, optimize the UPS real-time control function, hardware cir cuit is simple and high reliability.
b. To support software system Ms-dos
WINDOWS 95, WINDOWS XP, WINDOWS Nt, etc.
c. RS232 Communication interface
Through RS232 digital communication interf ace with random monitoring software, users can monitor th e
power supply and UPS situation directly from a computer screen, greatly simplifies the network mana gement,and effectively improve the reliability of computer systems.
d.Remote monitoring functionUPS Equipped with SNMP slot, in order to expand UPS remote monitoring function. Automatic signal sent by E-mail,Automatic to transmit warning pager way;Can be UPS via TCP/IP or Internet network remote mon itoring,automatic switch machine, real-time state of power supply condition analysis, monitoring, UPS, UPS self diagnostic test execution, automatic storage historical archives..
2. Multifunctional design, safety is better
a. Boot from the diagnosis f unction
Power on and boot, UPS star ted work of key circuit, inverter, batter y and load, etc.) to Chad, easy to findproblems in time, avoid any loss.
b. Enter zero wire detection function
In order to avoid UPS mains input zero firewire reverse connect, 1 ~ 3 kva machine has zero firewir e reverse detection function.
c.Cold start function
Unique direct current (DC) switched on, can be directly with the battery pack start when mains inte rruption UPS, UPS emergency function into full play.
3.Adopting high precision SMD technology, precision is higher
C / 3 C series process, changed the traditional plug-i n circuit board using high precision SMD technology, save a space, and eliminate the traditional UPS in the circuit feet, to facilitate the saf e runningof the integrated circuit, high reliability and precision is doubled.
Mature SMD technology can reduce all kinds of high frequency signals produced by the chip itself to the interference of other chips, allowing each chip module can work properly without interference, anti -interference is greatly improved.
Due to the SMD technology, lower power consumption, high accuracy, filtering performance is very good, the machine performance is more stable, more durable, service life is greatly increased.
4.Using cluster information processing technology, management more convenient
C / 3 C series USES the cluster information processing technology, will be clear at a glance the co ntrol panel of UPS operation condition and load condition, the condition of batter y clearly displayed in the pa nel, allow the user to hold UPS power supply quality and changes in the environment of application.
5.Environmental design, can be integrated with the user environment more friendly
a.High input power factor and cleaner energy
Power input end with power factor correction (PFC) technology makes the input power factor > 0.95, eliminate the UPS mains power grid pollution.
b.Quieter, more environmentally friendly
Panel on the alarm sound attenuation function keys, may avoid unnecessar y alarm, sharp battery low voltage, alarm recovery.
6.Based on the theory of life cycle assessment precision, more energy efficient
Life cycle assessment of the science, C / 3 C series adopt the anti-aging performance of touch scre en panel and chassis appearance treated by fluorine carbon technology, environment al protection, durable, is like new. Using new turbo fan, cooling per formance, high energy saving;
Adopting circulation control circuit, power saving per formance good;
USES the advanced digital circuit and high precision SMD technology, the whole machine lif e extended by 80% year-on-year
