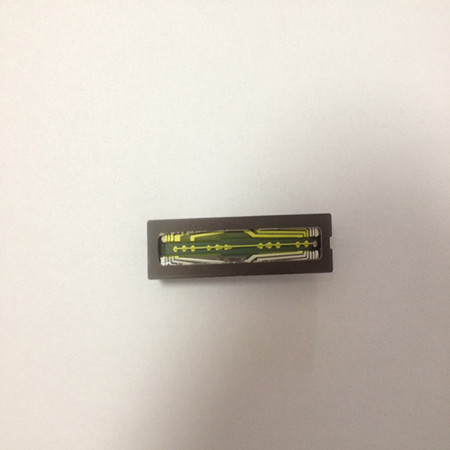

UV Coated Ilx526A Sensor CCD for Portable UV Vis Spectrometer

Name: UV Coated Ilx526A Sensor CCD for Portable UV Vis Spectrometer
Brand: all-electronics-online.com
SKU: 718451502
Availability: InStock
Rating: 4.6 (115 reviews)

Price:	US $ 100-120/Piece
Min Order:	5/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Ilx526A
Pixel Size:	7um*200um
Type1:	Full Frame
Advantage1:	Low Power Consumption
Advantage2:	Faster Speed Iseasy
Application:	CCD Spectrometers
Wavelength Range:	150nm-1100nm

Product Description

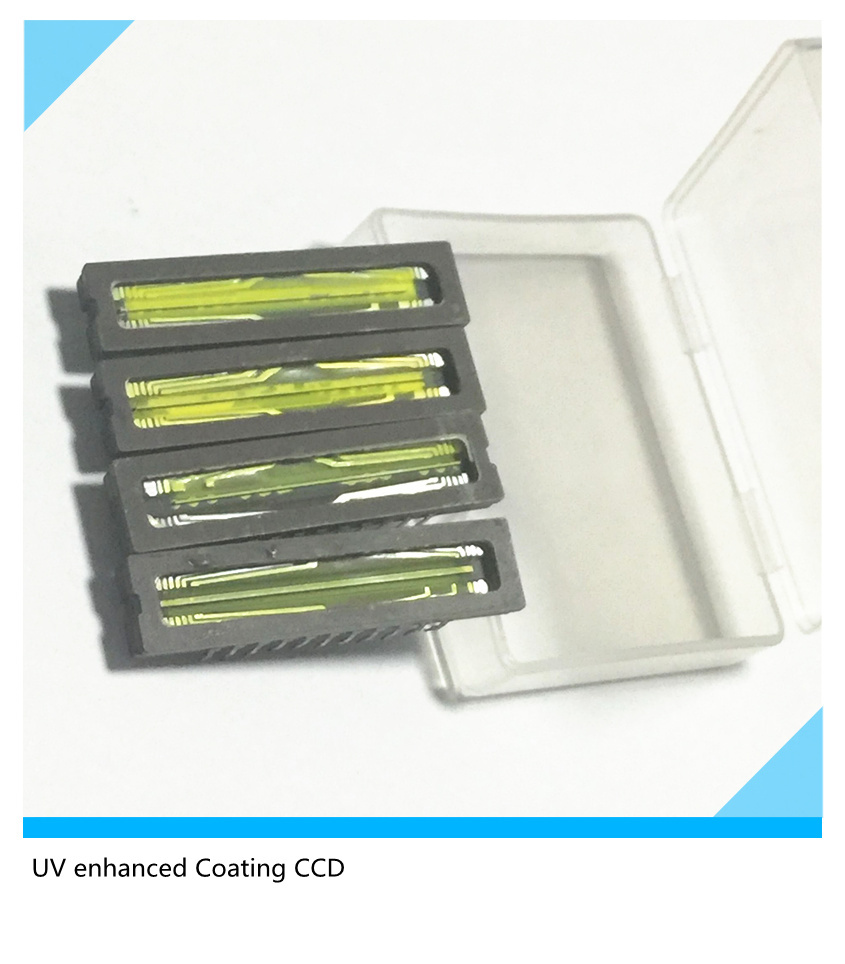

UV enhanced coating technology on CCD/CMOS, UV sensitive down to 150nm:

Sony CCD ILX511     UV Coated (without glass)
Sony CCD ILX554b   UV Coated (without glass)
Sony CCD ILX526A UV Coated (without glass)
Toshiba CCD 1304DG   UV Coated (without glass)

UV coating of sensors :
In order  to extend  the usable spectral region of  the sensors,  they can be provided with a specialized coating.  In  the case of applications with UV light this coating emits visible light, which is detected by the sensor. Such a coating lowers the lower end of the spectral sensitivity from 350nm down to 150nm.
Starting  from  400nm  the  coating  is  almost  transparent,  so  the  sensitivity  in  the  visible  and  in  the  near  infrared  is  hardly affected.  For  such  an UV  coating  above  all  sensors with  large  pixels  are  suitable. Some  often  requested  sensors  can  be supplied with UV coating from stock (see table below). For other sensors this is possible on request.

Type	Manufacturer	Pixel number	Pixel size [μm2]	Data rate fps of pixel frequency
ILX511-UV	Sony	2048	14,0 x 200,0	2 MHz
ILX554B-UV	Sony	2048	14,0 x 56,0	2 MHz
TCD1304DG-UV	Toshiba	3648	8,0 x 200,0	1 MHz

Any interest, welcome to contact to talk details

We are C. Z. IT, before named TIANYUNXING, but because of business development, we changed our company name. We are handling the business of exporting. We are near to Tianjin seaport, and Beijing airport, Tianjin Airport. It is very easy to delivery products.

From 2008, we start to export piping materials, such as steel pipe fittings, flanges, industrial valves.

From 2015, we start to export UV Coated CCD/CMOS as factory's trade office. Our factory is the first and the only company in China, who can design and produce UV coating. Based on our UV enhanced coating technology, we also can produce DUV optic fiber spectrometers. UV sensitivity can be 150nm-1100nm.

We have more than ten years experience to develop oversea market.

What is business for us? It is sharing, not just to earn money. Sharing the good products we know in China with you.

Our clients are from Spain, Italy, France, Russia, USA, Brazil, Mexican, Turkey, Bulgaria, India, Korea, Japan, Dubai, Iran, Iraq, Morocco, South Africa, Thailand, Vietnam, Malaysia, Australia, German and so on.
