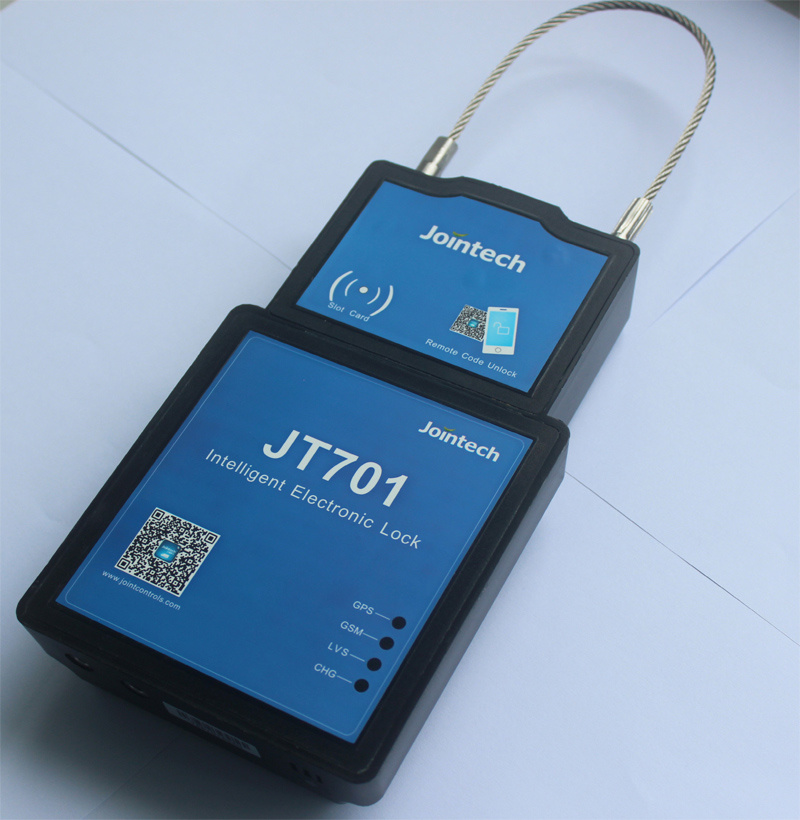

Van Truck Door Lock GPS Tracker

Name: Van Truck Door Lock GPS Tracker
Brand: all-electronics-online.com
SKU: 719188282
Availability: InStock
Rating: 4.3 (135 reviews)

Price:	US $ 1-300/Piece
Min Order:	10/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Model: JT701

Van truck door Lock GPS tracker

Main features:

1.   Unique Design with Unlock by RFID tags/SMS password
2.   Big capacity battery, Long working time
3.   Built-in GSM Module, Remote online monitor
4.   Built-in GPS Module, real time Global Positioning
5.   Safety Monitoring, Alarms For illegal unlocking

Application: Container ; Trailer ; Van Truck

Description:

Type		Function
Basic Function	Transmission mode	TCP
	Data automatic upload	Time interval
	Locating mode	GPS
	Vibration detecting	Built in 3G sensor
	Lock Status	Real time monitoring
	Unlock	RFID/Remote password
	Wake up mode	Call/SMS/Swiping card/vibration/E-Rope cut off
	Alarm	Electronic rope cut off alarm Swiping card alarm Unlock alarm Wrong password alarm Geo fence alarm
Parameters	Material	Engineering plastic
	GPS antenna	Built-in
	GSM frequency	900/1800/900Mhz
	Protection Grade	IP67
	Working temperature	-20 - +60
	Storage temperature	-40 - +80
	Relative humidity	5%-99%
	Average standby current	Less than 0.1mA
	Average working current	Less than 90mA
	Dimension	19511437mm
	Weight	700g(including standard accessories)

Function in detail:

No	function	Instructions
01	locating	GPS locating,LBS locating
		1. standby mode, wake up every 30mins and upload 1 location data. after wake up by SMS, CALL, vibration, work 10 mins each time. 2. Moving mode: upload via the setting time interval
02	Electronic-string lock	125K radio frequency base station read ID card number, to avoid wrong reading, high recognize accuracy . RFID read distance can be 20~100mm.
		Own-design electronic hanging rope lock, lock can resistant rust, anti corrosion, high hardness, wear resistance
		When unlock with RFID, the rope can plug out, if not plug out in 5min, it will lock again automatically. When plug in the rope, it will lock automatically also. When the rope is broken by physical damage, system will alert with message.
		When power off, rope keep the status as before, means if it locked before power off, it will keep lock status. If it unlock before power off, it will keep unlock status.
03	Abnormal alert	Geo fencing alert electronic lock Safety alert Vibration alert Low battery alert
04	Remote control	Remote manage the ID number(RFID) under power on status
		Remote unlock, by sending commands.
		Configure system parameters: working mode, vibration value, time point under power on status
05	Charging	Charging by USB cable, external charging cable via 2 hole under the bottom
		(extension function )Charging by external power supply. When ran out of battery, it's able to use power bank for emergency lock or unlock.

Prod Model:	JT701
Battery:	12000mAh
Electronic Lock:	by RFID, 20 Cards
Protection Grade:	IP67
Alarm:	Lock/Unlock Alarm, Geo Fence Alarm
Locating:	GPS/Lbs
Unlock:	by RFID, Password, Remote Command
Weight:	700g
Size:	19511437mm
Type:	GPS Tracker
Use:	Automotive
Operating Principle:	Mixed Type
Port Number:	Multichannel
Model:	Jt701
Screen Size:	No Screen
Chip:	U-Blox
Brand:	Jointech
Certification:	Ce
