| Prod Model: |
shut engine off vehicle TK104 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
94mm*60mm*38mm |
| Weight: |
300g |
| Warranty Time: |
1 Year |
| Carton Size: |
CE FCC |
| Network: |
GSM/GPRS |
| GPS Sensitivity: |
-159dBm |
| GPS Accuracy: |
5m |
| Warranty: |
12 Months |
| Applications: |
Locating and Tracking Service for Cars, Trucks, Co |
| Compact Design: |
External Internal GPS GSM Antenna |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Operating Principle: |
Interferometric Type |
| Port Number: |
Multiplex Multi-purpose Channel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
Coban 104b |
| Screen Size: |
No Screen |
| Brand: |
Coban |
| Certification: |
CE, FCC |
Product Description

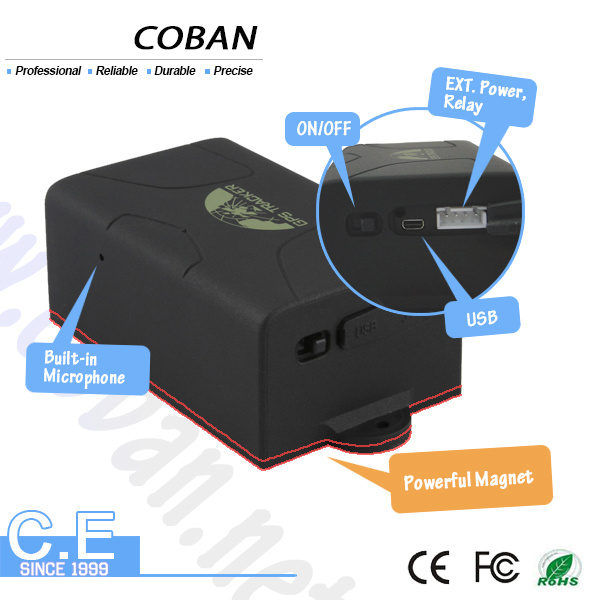

Durable GPS tracker device about 2 month standby time 104GPS
1. Standby time more than 2 month
2. Waterproof shell
3. External and internal GSM/GPS antenna, optional use
4. With relay to cut off and resume power and oil
5. Support external power
6. Powerful magnet, easy to adsorb on vehicle
7. Geo-fence alarm
Model 104GPS:
This tracker working based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
Functions:
1. View remote target current location map through cell phone or PDA
2. Get location in real street/address name, by sending address+password to tracker, it will send u back a detailed street address
3. GPS+LBS positioning ways. When there is no GPS signal, it will locate by GSM network.
4. Auto tracking continuously. Send SMS "fix+intervals+time unit+***n+password" to unit, it will track automatically
5. Single location by calling tracker
6. Oil-cut and restore by sending SMS
7. Power-cutand restore by sending SMS
8. Low power alarm. It will alarms when the power is below 3.7V
9. SOS panic alarm. It will send "help me! +lat/long. " to you cell phone asking for help
10. Shock sensor alarm.
11. Movement alarm
12. Overspeed alarm
13. Real time tracking by SMS or computer
14. Easy to switch between SMS and GPRS mode
15. Voice surveillance
16. Sleeping function: Can save power to extend the standby time
Applications:
Locating and tracking service for cars, trucks, container trucks,
Specifications (Technology parameters):
DIM: 94mm*60mm*38mm
Weight: 300g
Network: GSM/GPRS
Band: 850/900/18001900MHz
GSM/GPRS Module: SIM900B
GPS Module: SIRF3 chip
GPS Sensitivity: -159dBm
GPS Accuracy: 5m
EXT.: DC 12V-24V
Battery: 3.7V 6000mA/h Polymer battery
Standby time: GSM sleep mode 1500h
Charge time: 5h
Storage Temp.: -40C to 85C
Operation Temp: -20C to 65C
| Content | Specifications |
| DIM. | 94mm*60mm*38mm |
| Weight | 300g |
| Network | GSM/GPRS |
| Band | 850/900/1800/1900Mhz |
| GPS sensitivity | -159dBm |
| GPS Accuracy | 5m |
| GPS Start time | Cold status | 45s |
| Hot status | 1s |
| EXT. power | DC 12 V -24V |
| Operating Current | Sleep Current | 1.8mA |
| Deep sleep | 0.6mA |
| GSM operating Current | 68mA±3mA |
| GPRS Current(data transfer) | 82mA±10mA |
| Battery | 3.7V 6000mA/h Polymer battery |
| Charge current | 1A±0.2A |
| Charge time | 7h |
| Standby time | Sleep | 4 months |
| Deep sleep | 12 months |
| Storage Temp. | -40°C to +85°C |
| Operation Temp. | -20°C to +65°C |
| Humidity | 5%--95% non-condensing |
