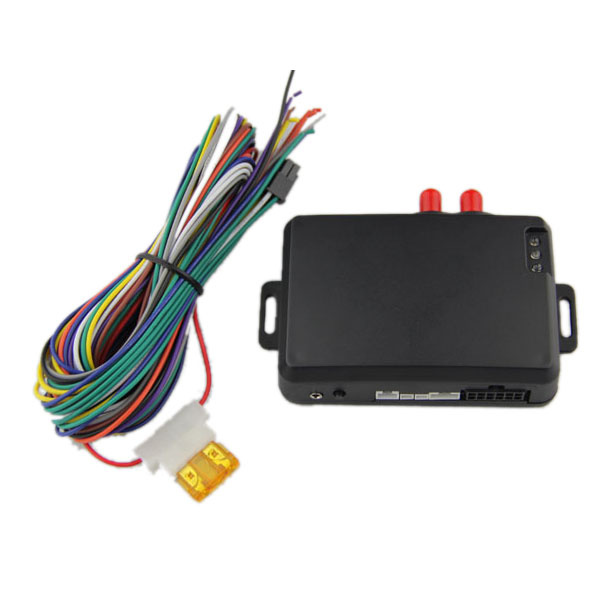

Smart GPS vehicle tracker TL20Product DescriptionTL20 is a GPS/GPRS/SMS tracker designed for for vehicles and trucks.TL20 can not only meet the basic tracking needs, which can also support different fleet management solutions by working with fuel/temperture sensors, with multiple data uploading modes and intelligent Power saving mode Optional fuel/temperature sensor ,rich I/O for different signals checking and control, it makes TL300 the best choice to manage your logistic fleet.
Functions1) Report simple (very easy compatible with your software)
2) Parameter configuration (via sms or pc-setup setup it)
3) Support Tcp/udp communications
4) Built in memory, storage the data in no gsm signal place.
5) Odometer or mileage(Via gps calculates mileage)
6) Prevent static excursion.
7) Intelligent Report.
8) ACK check enable or disable
9) SMS function
10) Fixed time/distance report
11) Geo-fence
12) Direction change report
13) SOS alarm
14) Built in backup battery, Lower battery alarm/power cut alarm
15) Over speed report
16) Remote fuel cut off
17) Sleeping mode
18) Remote Door Lock/unlock control
19) Arming and disarming
20) Panic
21) Anti-car jacking
22) Emergency release
Specifications:
Enclosure dimensions | 93mm*62mm*25mm |
Weight | 200g |
DC Tolerance voltage | 9V - 35V |
GSM Module | 850/900/1800/1900MHz |
GPS Module | SIRF III |
Protocol | NMEA0183 |
Number of Channels | 20 Channel Simultaneous Operation |
Current (GPRS online) | 60mA |
Current (GPRS transmission) | 80mA |
Sleeping mode | 40mA |
Accuracy Horizontal | <5 meters (50%), <8 meters (90%) |
Altitude | <10 meters (50%), <16 meters (90%) |
Velocity | 0.06 m/sec. |
Hot Start: | <13 sec |
Warm Start: | <42 sec |
Cold Start: | <84 sec |
Backup battery | 800mAh |
Communication | GPRS \SMS\RS232 |
Operating Temperature | -20°C to +55°C |
Storage Temperature | -40°C to +65°C |
Accessories:
Main harness
SOS button
Microphone
Cut-relay
GPS/GSM antenna
Configuration cable
Fuel level sensor(TL800)-optional
Temperature sensor -optional
Application
Corporate Fleet Management.
lLogistics & Courier.
lGovernment Municipal Transport.
lPolice & Defense Market.
lCar Security & Recovery.
lTaxi Management.

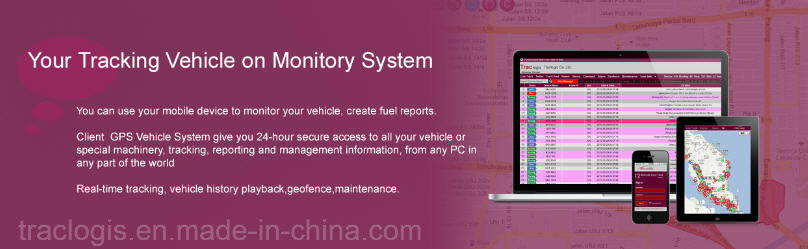

Traclogis Software System/Platform
Smart Real-time tracking interface
Humunized Geo-fence setting
Friendly maintenance module
Comprehensive reports
Cusomtized language accepted
Established in 2009, Traclogis is dedicated to provide Fuel control system and Fuel consumption monitoring solution and GPS-GSM/GPRS vehicle monitoring and fleet management solutions that has a transformative effect on the way business optimize their fleet and mobile assets.
With the development of modernization in industry and agriculture, and the wide use of industry monitoring and automatic management, the wireless control system is expanding rapidly, especially in irrigation works and electronic power, fuel consumption, with the strong demands from the market, Traclogis started the remote fuel monitoring solution study in 2009, based on the experience of fleet management solutions, we have released the complete solution of remote fuel monitoring solution successfully, which has helped our customers saving a lot of cost on the management of fleet and industrial equipment operation.
Traclogis is dedicated to enhancing the value of its customers' business through intelligent integration of location technology, information and services, according to the requests from the market, we can fulfill the needs of all sizes of companies,
No matter you are just going to enter into the fleet management industry or you have done successfully in this field, Traclogis can always be your partner.
Traclogis' strategy is to help our customers to lower threshold of entering into fleet management field, as well as saving cost for the fleet managers, Traclogis is ideally to provide full range of solutions to satisfied our clients, which include also OEM project according to customer's requests.
