| Prod Model: |
Vehicle tracking GPS105 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Warranty Time: |
1 Year |
| Certificate: |
CE |
| Weight: |
170g |
| Size: |
85mm*71mm*26mm |
| Functions: |
Fuel Monitor, Temperature Sensor, RFID Camera |
| Alarms Under Arm: |
Acc, Door, Shock Sensor and Photo Shot |
| Fuel Monitor System: |
Fuel Percent |
| Odometer: |
Yes |
| Fleet Management: |
Engine Shut off, Acc and Fuel Alarm |
| Camera Detect: |
GPS Tracker Support Camera |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Carrier Frequency: |
Dual-Frequency |
| Operating Principle: |
GPS Satellite Positioning and Data Transmit by GSM |
| Port Number: |
20 |
| Model: |
GPS105 |
| Screen Size: |
No |
| Chip: |
No |
| Brand: |
Baanoool |
| Certification: |
Ios9001 |
Product Description

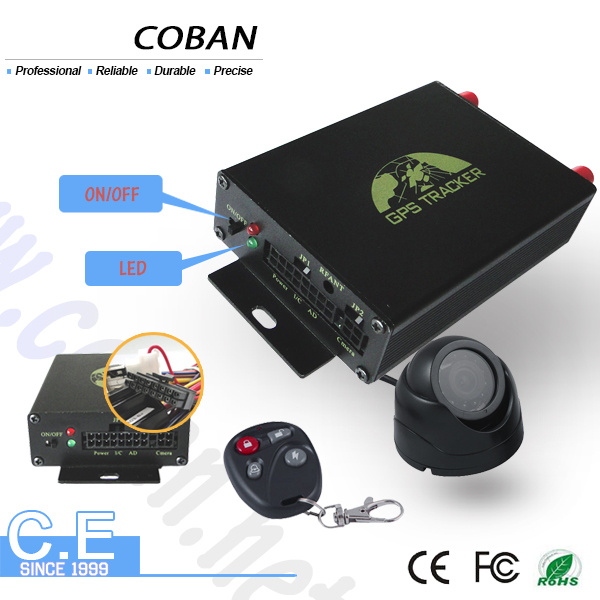

Vehicle GPS Tracking System Support Camera and odometer Tk105
1. Dual sim card vehicle gps tracker
2. Work with RFID and camera
3. temperature sensor
4. remote stop engine ,lock/unlock door for auto vehicle by central lock system
5. Fuel level monitor,Camera take phone when door alarm is active
Top quality, fast delivery in 3 days and one year warranty.
Detailed description
It is based on GSM/GPRS(850/900/1800/1900MHZ)wireless telecommunication internet and GPS satillite global position system,track by multi tracking ways
NO1.Basic functions:
1. Tracking by GPS and location base service both even in building, underground and garage
2, Real time tracking via SMS or GPRS (TCP/UDP)
3, Track on demand by calling or sms comamnd
4, Show location directly on mobile phone with HTTP google map link
5, Track by time interval
6, Five authorized phone number to protect tracker information and assets
7, Voice Surveillance
8, Easy switch for track or Monitor
9, SOS button ,Low battery alarm, Geo fence,Overspeed Alarm , Power off alarm
10 Engine -cut and restore alarm by SMS GPRS
11, Door, windows alarm get by SMS
12, Movement alert sensor
13, RFID
14. With direction and heading value
15. Optional vibration sensor and fuel sensor
16. Optional camera
17 Support SD card function
NO2.Optional function:
*Central locking system box
*Vibration sensor
*Camera for image capture
*Fuel sensor for monitor fuel
*Temperature sensor
*SD card function
*Speed detecting (Speed calibration ,Kilometrage Report,Speed recording,Governor mode)
*RFID
NO3.Applying directions:
*Vehicle fleet/logistics/vehicle rental (12 to 24V)
NO.4Technical data
DIM |
85*71*26mm |
Weight |
170g |
Network |
GSM/GPRS |
Band |
850/900/1800/1900Mhz |
GPS Module |
SIRF3 chip |
GPS Sensitivity |
-159dBm |
GPS Accuracy |
5m |
GPS Start Time |
Cold status 45s
Warm status 35s
Hot status 1s |
Applicable vehicle power |
12 V -24V
|
Backup Battery |
Chargeable changeable 3.7V 800mAh Li-ion battery |
Storage Temp |
-40°C to +85°C |
Operation Temp. |
-20°C to +65°C |
Humidity |
5%--95% non-condensing |
