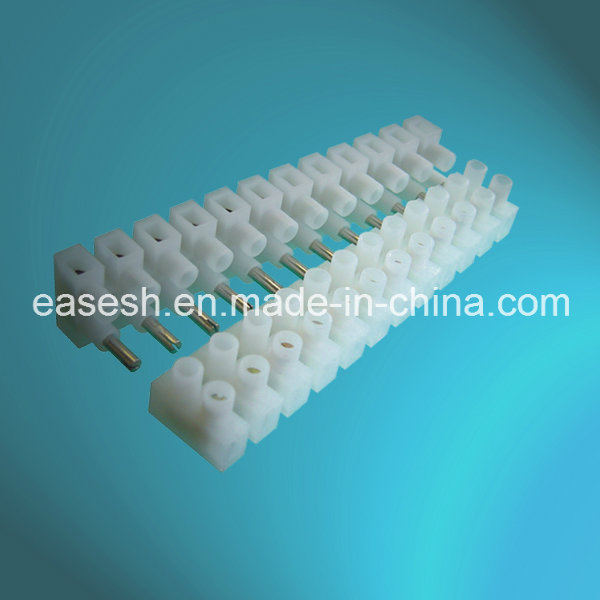

| Prod Model: |
ES-V-VP |
| Markets: |
North America,Eastern Europe,Oceania,Western Europe |
| Working Temperature: |
T105 |
| Housing: |
PA66 |
| Colour: |
Natural, White, Black |
| Cross Section: |
2.5~10mm2 |
| Application: |
Battery |
| Environmental Protection: |
General |
| Connection Mode: |
In-Line Connector |
| Contact Termination Form: |
Screws Fixed |
| Shape: |
U, H Shapes |
| Interface Type: |
Standard |
| Brand: |
Es |
Product Description
We are a professional manufactuer and exporter established over 18 years, and with our European Sales Centre and a large warehouse based in the UK. We are specialised in making and supplying a wide range of quality terminal blocks and other cable accessory products with many international standards and approvals, such as CE, RoHS, REACH, SGS, VDE, IMQ and UL etc.
Our terminal blocks are of the top consistent quality made with PE, PP, PA, PC, Porcelain and brass from China, with excellent design, function and performace on all types of electrical connections. We are ISO 9001 certified company which for many years, has been providing profssional, reliable and efficient services in all our operations including production, quality inspection and control, shipping, fast clearance and delivery services across the UK and Europe and also many other countries.
We have a full range of terminal blocks and can provide standard, neutral packaging, or special customised packaging to meet with our customers very different requirements.
We are also specialised in making toolings according to customers' own drawings and samples with fast turnaround time and cost-effective solutions.
| EASE CODE | CROSS SECTION | CURRENT RANGE | RATED VOLTAGE | DIMENSIONS (mm) |
| W | L | Φ1 | Φ2 | D | d | H | h |
| ES-V-2.5-VP | 2.5 mm2 | 2.5~20A | 450V | 18 | 94 | 2.8 | 2.5 | 7.2 | 5.6 | 13 | 7 |
| ES-V-4-VP | 4 mm2 | 3~24A | 450V | 20 | 115 | 3.5 | 3.2 | 10 | 8 | 15 | 8 |
| ES-V-6-VP | 6 mm2 | 5~32A | 450V | 24 | 138 | 4.2 | 3.5 | 12 | 9.5 | 19 | 10 |
| ES-V-10-VP | 10 mm2 | 10~57A | 450V | 26 | 156 | 5.0 | 4.2 | 14 | 11 | 25 | 15 |
| Cross Section: |
rated for rigid wire and cables (if for flexible wire, it should be reduced one-step, i.e. 6mm2 is 4mm2 )
Φ1 wire entry hole diameter Φ2 fixing hole diameter |
EASE, founded in 1996, the leading manufacture in Europe and China for Cable & Lighting Accessories. A totally positive business approach and delication to a policy of making outstanding quality from China is key to our continued Success. With Strong focus on products quality, heavy investment has been made in toolingdesign and mouldmaking for our group manufacturers. Strictly raw material control and evaluation guarantees the consistency of our mass production Quality.
All manufacturing is carried out under ISO 9001, with most of them complying with RoHS, REACH and certifiedby UL, VDE and IMQ making EASE products the envy of many competitors.
Predominately addressing the electrical OEM markets, our expertise and specialty fulfill the needs of those companies Who recognise the benefits of outsourcing products from hassle-free one-stop supplier' S service, leaving them to focus on their core business. With our comprehensive quality control systems, EASE ensures the consistency of all OEM Production from container to container shipments for many years.
The UK 85, 000 square feet warehouse is vital to the company' S efficiency and flexibility. The integrated logistic force Behind EASE combined with dedicated staff allowsthe Company to provide the fastest possible responses to the Customers ever changing needs in the UK and across Europe.
The Company' S ability to deliver on its motto, "European Quality, Chinese Price" has gained itself an excellent reputation in a broad spectrum of industries, and has become an approved supplier to many leading international companies in the UK, Europe and America. The company continues to move forward with an ever-increasingportfolio of high quality Electrical, lighting and LED product lines, with the aim to be an ultimate single source for our long-term business Partners and all new customers.
