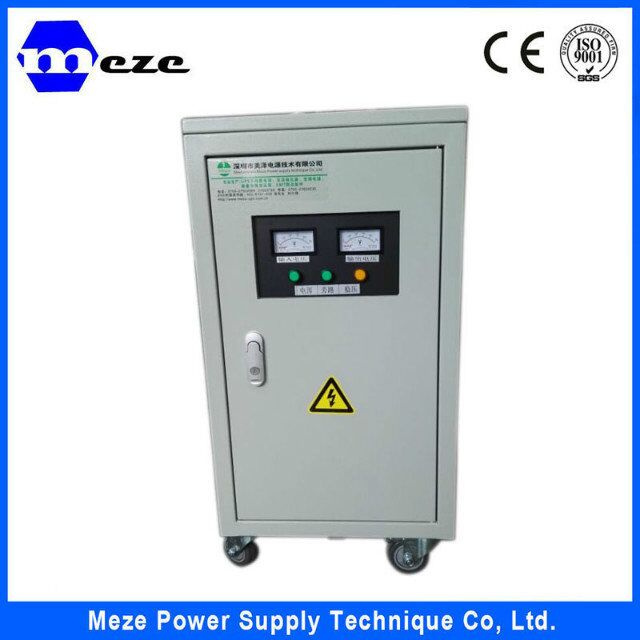

Voltage protector dc power supply stabilizer
| Model | MZVC1005 | MZVC1010 | MZVC1015 | MZVC1020 | MZVC1030 |
| Nominal capacity | 5KVA | 10KVA | 15KVA | 20KVA | 30KVA |
| input voltage | 220V±20% |
| output voltage | 220V±3% |
| frequency | 50/60Hz |
| Voltage regulation | ≤±3% |
| overpressure | 250V±5V |
| Under voltage protection value | 183V±5V |
| waveform distorition | ≥95% |
| effciency | No additonal waveform distortion |
| The electric strength | ≤1.5s |
| insulation resistance | ≥2MΩ |
| Response time | Power frequency sine voltage 1500v lasted 1 min no breakdown or flashover phenomenon |
| temperature | -10ºC~45ºC |
| humidity | ≤95% |
| Altutide | <2000 |
| Why to work | continuous |
| Dimensen | 360x175x300 | 500x220x425 | 380x330x770 | 400x530x730 |
| Weight | 15.3 | 30.7 | 48 | 71 | 105 |
MZVC Series Product Characteristics And Application Fields
MZVC series high precision automatic ac regulated power supply using selected energy
saving ring transformer and first-class quality of integrated circuits and components for
production, with small volume, light weight, high efficiency and energy saving, no additional
output waveform distortion, stable and reliable performance, etc.
This series of products is mainly composed of contact type self coupling voltage regulator,
servo motor, automatic control circuit, etc.When grid voltage instability or load change,
automatic control circuit according to the change of output voltage to drive the servo motor,
adjust the contact from the carbon brush on the coupling voltage regulator, adjusted to make
the output voltage rating, reach steady state.
Areas of application: industrial and mining enterprises, hospitals, health, radio station,
hotel, scientific research institutes, computer network computer room and so on.
Load performance is good, suitable for impedance, capacitive and inductive load
Small volume, light weight, compact structure
Main characteristics:
Ring transformer structure, less leakage, low noise
USES the multi-layer structure of carbon brush, long service life, less maintenance workload
In phase with the input and output voltage, manual and automatic switching
Stepless voltage regulation, stable voltage output, does not produce waveform distortion
Can withstand the instantaneous overload shock, can work continuously for a long time
MZDC Series DC Voltage-stabilizing Power Supply:
Characteristics And Application Fields:
We also produce other series of regulated power supply.Such as,MZDC SERIES is Dc regulated power supply circuit for linear series adjustment type structure, with the advantages of high stability, low ripple voltage. Using voltage suspension type technology, Output voltage can be transferred to the rating from zero
volts, Output current can range from zero amps preset to the rating.
Adopt SCR or relay preliminary stability change on both ends of the voltage rectifier
bridge
Dual power supply, with functions of master-slave track series and parallel. when
cascade used, , The output voltage is equal to the double power source voltage, Increase
the load voltage, When using parallel output current is the sum of two lines of output
current Increase the load current
Main Characteristics:
Small volume, light weight, convenient adjustment, high precision, low ripple voltage,
output voltage and current are starting from zero, with functions of master-slave track.
1.The input voltage: 220V±15% 50±1Hz
2.The output voltage: Can be adjusted according to the demand o f 0 ~ maximum rating
3.Output current: Can be adjusted according to the demand of 0 ~ maximum rating
4.Effect of the power: 5x10 +10mv
5.Current effect: 5x10 +15mv
6.Ripple voltage: Vp-p 10mv
No-contact Voltage regulator power supply:
Characteristics And Application Fields:
MGW series product voltage using the induction voltage regulating principle, combined
with our company independent research and development of process technology and
structure design, using imported enameled wire and insulation material combination of a
new generation of pure linear non-contact voltage regulator, products with high efficiency,
strong ability to resist impact load, lossless device, long life and other advantages.
Areas of application: widely used in government agencies, research centres, embroidery,
textile, rail transportation, photoelectric display, printing and packaging, radio and television,
process control, military instrument control, financial securities, medical equipment, metal
processing, agricultural machinery, electric power department, office, computer network,
telecommunications, computer numerical control equipment, etc.
Main Characteristics:
1.LED display panel, the LCD panel can dynamically display system working condition
2.Domestic unique patented technology, one-piece precision transmission structure
3.Multi-layer circuit control architecture
4.Power cuts, soft start function calling back
5.Abnormal voltage stabilizing system self test
6.Continuous linear voltage adjustment, suitable for all kinds of bad environment
7.Full digital control technology
8.Main characteristics:
9.Product overview and application field
