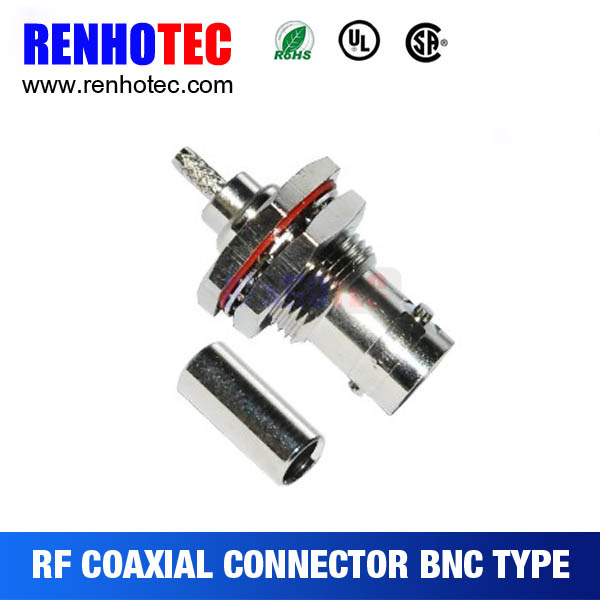

Waterproof Straight Bulkhead Female BNC Connectors ip68
1. High quality products
2. RoHS compliant
3. Competitive price
4. Best service
5. Various options
Hot sell BNC connectors for electronic:
BNC series are one kind of cards of thing the mouth join the radio frequency coaxial connection device. It joins rapidly, keeps in touch with the characteristic such as being reliable, applies to the radio equipment and electron tube instrument field and joins the coaxial cable of the radio frequency extensively.
BNC Connector Application:
1. Antennas
2. Broadcast
3. Radios
4. Electronic test equipment
5. Serial digital and Analog interface
6, Non-professional radio antenna connections
MAJOR TECHNICAL CHARACTERISTICS
| Temperature Range | -55 to +155° C(PE Cable-40 to 85° C) |
| Vibration | 100m/s (10-500Hz). 10g |
| Impedance | 50Ω /75Ω |
| Frequency | DC to 4GHz |
| Working Voltage | 1000V r. M. S at sea level |
| Withstanding Voltage | 2500V r. M. S at sea level |
| Center contact Resistance | ≤ 1.5m Ω |
| Outer contact Resistance | ≤ 1m Ω |
| Insertion Loss | ≤ 0.24dB(6GHz) |
| Insulation resistance | ≥ 5000M Ω |
| Center Conductor Retention Force | ≥ 0.56N |
| VSWR Straight | ≤ 1.15/6GHz |
| Right angle | ≤ 1.25/6GHz |
| Durability(mating) | ≥ 500cycles |
MATERIAL AND PLATING
| Body | Zinc alloy and Nickel plated |
| Pin contact | Brass or Gold plated |
| Socket contact | Beryllium or tin bronze or Nickel plated |
| Resilient Contact | Beryllium-copper or Nickel plated |
| Insulator | POM |
| Crimp Ferrule | Zinc alloy or Nickel or gold plated |
| O-ring Sealing | 6146 silicon rubber |
APPLICABLE STANDARD
MIL=C-39012
CECC 22210
IEC 60169-16

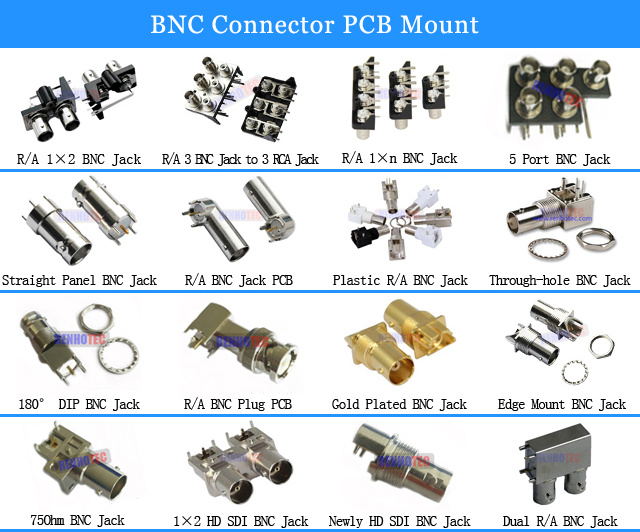

More BNC Connectors
Renhotec Hardware Electronics Co., Ltd
Quality is essential to both of us, we believe that excellent quality, reasonable price, mutual benefit will be good basis of our cooperation. If you have any requirement, please contact us. We are looking forward to cooperating with you!
www.renhotec.com

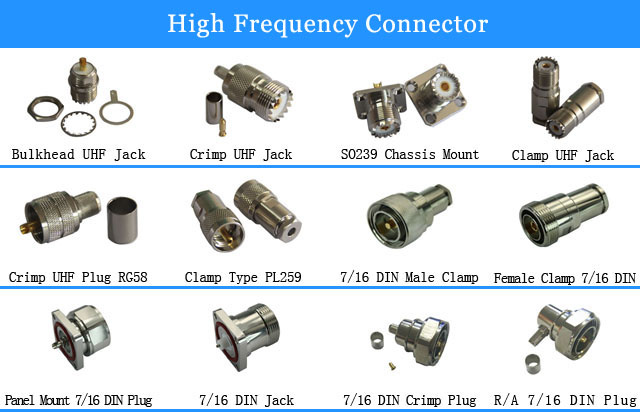

Related RF Coaxial Connectors and Cables
