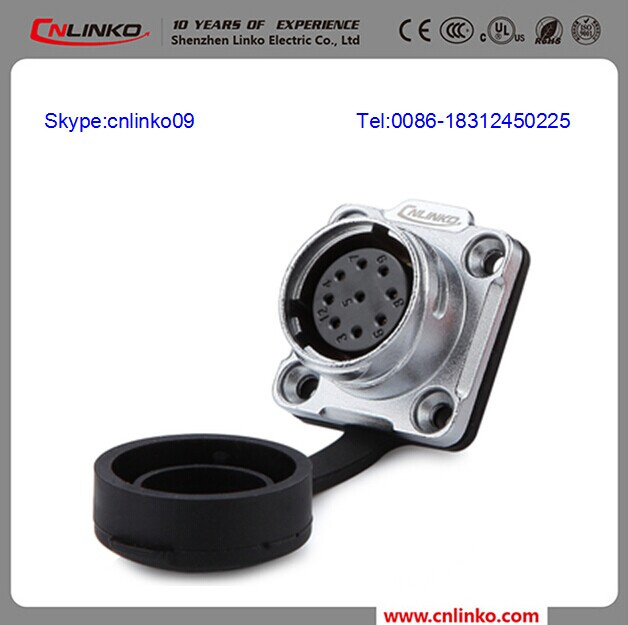

Watertight Auto Electrical Bayonet Panel Type Connectors/9pin Female Socket

Name: Watertight Auto Electrical Bayonet Panel Type Connectors/9pin Female Socket
Brand: all-electronics-online.com
SKU: 776866835
Availability: InStock
Rating: 4.3 (134 reviews)

Price:	US $ 2.5/Piece
Trade Terms:	FOB,CFR,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Watertight Auto Electrical Bayonet Panel Type Connectors/9pin female socket

It is widely used in
·New energy
·LED screen/led display/ led lighting
·Industrial control product
·Automotive
·Security product
·Power Supply
·Electric Vehicle
·Security equipment
·IPC
·Communication equipment

It is high performance and competitive price.
Welcome OEM/ODM.

Specifications:
DH20 9pin female socket

Connecting mode	Screw locking
Protection level	IP65/67
Cable specification	0.15-0.2mm2 / 26-24AWG
Diameter range	Φ5.5mm ~Φ7mm
Contact diameter ×Qty	Φ1.0x9
Current rating(A)	5A
Operating voltage(AC.V.rms)	400V
Withstand voltage(AC.V)1min	1500V
Insulation resistance	>500MΩ
Durability	≥500 mating&unmating cycles
Temperature rating	-40°C~80°C
Prevent the combustion level	UL94-V0
Temperature rise	12A per contact at 30°C, 15A per contact at 40°C, 20A per contact at 50°C
Color	Red
Protective housing	PBT Material
Install method	1/4 Quick bayonet
Material
Shell&Insulated parts	High performance engineering plastics
Hardware metal	Zinc alloy(pearl hard chromium)
Assembly wire	Solder
Copper needles	Copper alloy(gold-plated)
Waterproof	Silica gel

Packaging & Shipping& Contact information:

Packaging: 10pcs/small box, 100pcs/middle box, 240pcs/master box
Shipping: by express,by air or by sea
Lead time: 3-5 working days after confirmed the order quantity

Contact information:

Contact Person: Eunice Tan
Cellphone: 0086-18312450225
Website:www.cnlinko.com

Prod Model:	DH-20-J09SX-01-001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cable Specification:	0.15-0.2mm2 / 26-24AWG
Diameter Range:	5.5mm-7mm
Contact Diameter*Number:	1.0*9
Operating Voltage:	400V
Protection Level:	IP65/IP67
Connecting Mode:	Screw Locking
Durability:	500 Times
Assembly Wire:	Solder
Copper Needles:	Copper Alloy(Gold-Plated 4u)
Flammability Rating:	UL94-V0
