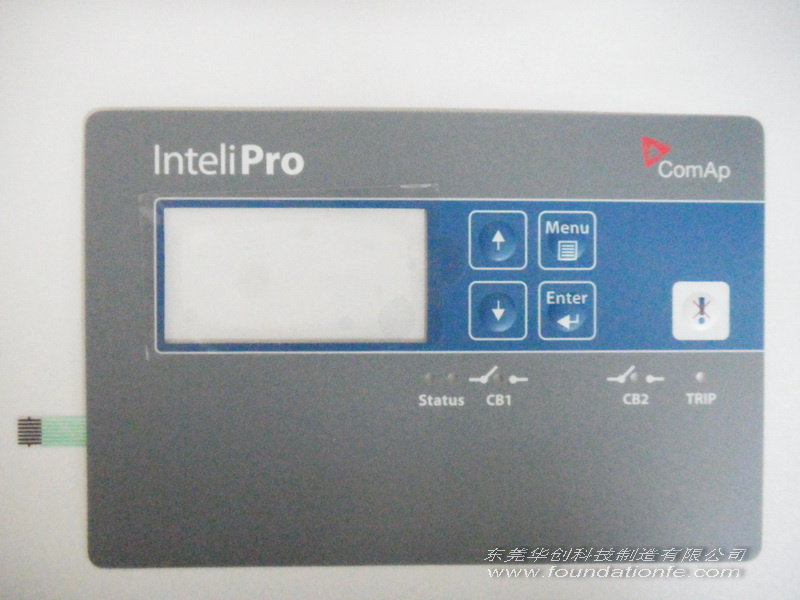

Window Silicone Rubber Key Pad Control Keypad Panel

Name: Window Silicone Rubber Key Pad Control Keypad Panel
Brand: all-electronics-online.com
SKU: 699346755
Availability: InStock
Rating: 4.4 (91 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	100/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HC-CK-006
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Quality:	Top Quality
Environmental Friendly:	Raw Material Pass RoHS, SGS Test
Touch Feeling:	Excellent Touch Feeling
Exterior:	Good Looking
Type:	Flat
Material:	Silicone
Application:	With Remote Control
Brand:	Tkm

Product Description

Window Silicone Rubber Key Pad Control Keypad Panel:

1. Layers:
Overlay, Overlay adhesive, Dome retainer, Metal dome, Spacer adhesive, Circuit, Rear adhesive (as customers request)

2. Main types: There are many different types and layouts of membrane switch, its basic function like travel, operating force, life time mainly depend on type of key and material. The main types can be sorted as follows:
Membrane switch with flat keys, membrane switch with embossed keys (rectangle or dome), membrane switch with metal dome or polydome, tactile or non-tactile, membrane switch with LCD window or embedded LED, and so on...

3. Technical Parameters:
Wire Resistance: ≤ 1 Ohm/cm
Current Rating: 25-100mA, 0-30V DC
Work Voltage: ≤ 50V DC
Insulation Voltage: ≤ 100M Ohm 250V DC
Working Life: ≤ One Million Times
Work Temperature: -40 Centigrade-70 Centigrade
Work Humidity: 40 Centigrade-≤ 98%RH
Basic Material Pressurization: 1500V DC
Looking forward to your special inquiry!

	Technical Specification Of Membrane Swithc
wire lead resistance:	<1Ω/CM	Life time:	>1 Million times
rated current:	25-100mA,0~30V DC	Operation Temperature:	-104°F~158°F
Rated Voltage:	<50V, DC	Operation Humidity:	at104°F,<98%RH
Insulation resistance:	<100MΩ,250V DC	Dome springback time:	<5 msec
Switch travel:	Flat Type 0.05-0.3mm	Base Material voltage withstand:	1500 V DC
Switch travel:	tactile type:0.3-1.5mm	Tail flexiblility:	any angle within 180 degree

Foundation Industries Manufacturing Limited has been specialized in membrane field for over 15 years, which was founded in 1997, . It has two factories in Dongguan China, one is for membrane products (TKM membrane technology Ltd. )and the other is for silicone products(Huahongchuang). Now we have purchased a Taiwanese factory which is manufacturing various nameplates, and we' Ll use this new facility to expand our main business and make metal nameplate our new field.

We are an ISO9001: 2008 certified company and all of our products have passed RoHS and SGS test. We believe quality is vital for the growth of an enterprise, we undergo 100% functional test before shipment.

Our main product range are:

1)Membrane Switch and overlay

2)Flexible printing Circuit/ FPC/EL

3)Silicone products including silicone rubber key pad. And various silicone Rubber products.

4) Metal nameplate series

5) Rotary Switch/Rocker Switch/Push button Switch/Thermal protector

We' Ve established business relationship with over 120 customers from global market, including some famous brands such as PHILIPS, Siemens, Panasonic, SANYO, METTEL, BOSCH.

We sincerely hope can cooperate with you in the coming future!
