Wired Door Magnetic Switch for Rolling Door & Window (SC-61L)

Name: Wired Door Magnetic Switch for Rolling Door & Window (SC-61L)
Brand: all-electronics-online.com
SKU: 689455952
Availability: InStock
Rating: 4.7 (71 reviews)

Price:	US $ 1.0/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Pairs
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Item Name
Wired Door Magnetic Switch for Rolling Door & Window (SC-61L)

Parameters
Dimension: 105*47.5*9.5mm (switch)
88*20*20mm(magnet)
50*50mm (L type)
Housing: Switch: Metal(Alloy-Zn ), grey
Magnet: ABS, grey
L type: Al.
Gap: 50-70mm
60-70mm available
Output: N. C. & N. O. & Changeover available
Leads: 1007UL22AWG530mm,
This Overhead Rolling door Magnetic Switch Scroll Magnetic Switch Can work with any kind alarm system with wired zones.

Roller shutter sensor,heavy duty overhead door contact sensor,

for Mounting on Door Tracks,

Adjustable "L" bracket, magnet can be installed in many ways!

Armored cable in 380mm or 480mm length

Wider Gap for reduced false alarms

Closed Loop, open loop and SPDT types

Certificates:FCC,CE ,ROHS

Surface mounted with screws, leads 530mm standard length, with armored cover cable of 380mm or 480mm

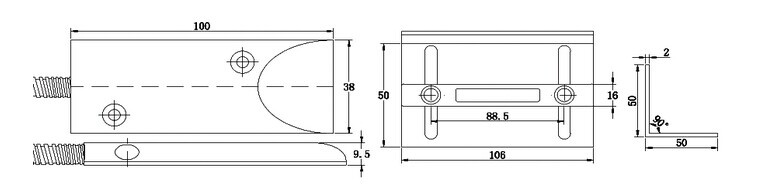

Diagram SC-61L

Diagram SC-60

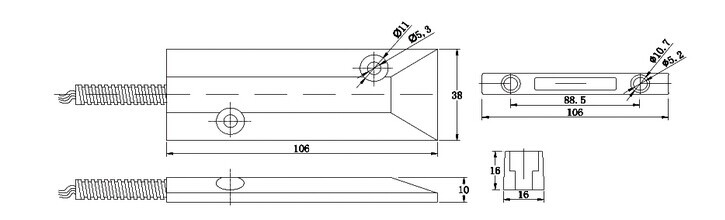

Diagram SC-55Z

Specification	Output	Casing Material	Action Gap(mm)	Max CUr./Vol./Power/Init.Ress(A/VDC/W/mΩ)	MOQ(PAIRS)
NC-ZN-6070	NC	zinc+ABS	60-70	0.5A/100V/10W/200mΩ	0
N0-ZN-5060	NO	zinc+ABS	50-60	0.2A/30V/3W/200mΩ	500
COM-ZN-5060	Changeover	zinc+ABS	50-60	0.2A/30V/3W/200mΩ	500

Prod Model:	SC-61L
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Gap:	50-70, 60-70 Optional
Can Be Installed:	Window or Door
Output:	N.C. & N.O. & Changeover Available
Switch Dimension:	10547.59.5mm
Magnet Dimension:	882020mm
L Type Dimension:	50*50mm
Certificates:	CE, FCC, RoHS
Signal Transmission:	Wired Alarm
Working Mode:	Passive
Sensor Type:	Electric Alarm
Application:	Indoor
Type:	Anti-Theft Alarm
