Wireless Network WiFi 3G 4G GPS Tracker Without SIM Card

Wireless Network WiFi 3G 4G GPS Tracker Without SIM Card
Price: US $ 77-88/Set
Min Order: 1/Set
Pay Type: T/T,Western Union,Paypal,Money Gram
Wireless network WIFI 3G 4G GPS tracker without SIM card

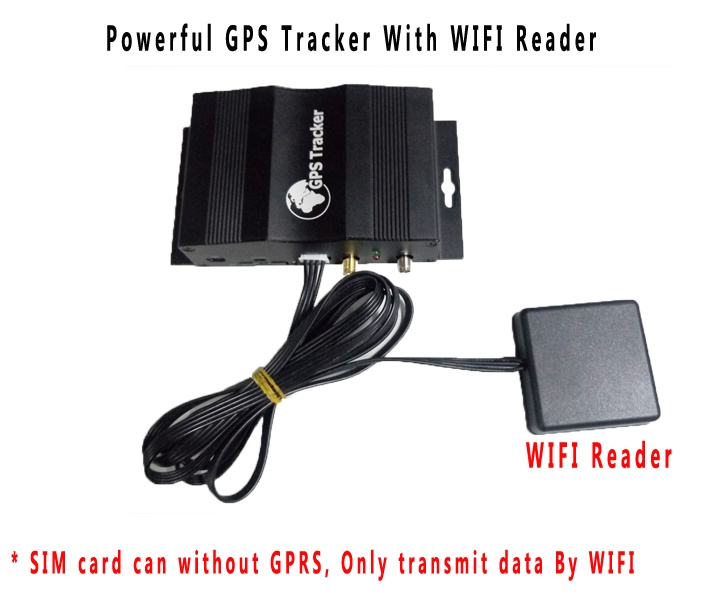

Topshine WIFI tracker VT1000 can work without GSM network, it is use wireless network, WIFI tracker will upload data via WIFI hotspot.

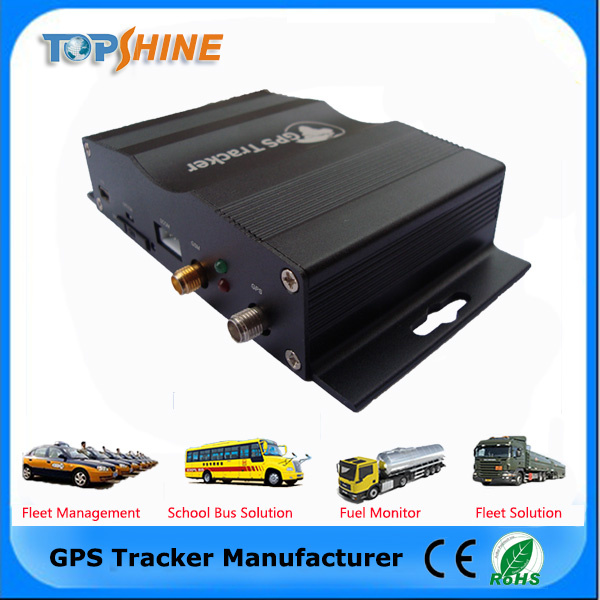

Tracker VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting camera (location&driving information log on picture); Bidirectional communication; 4 A/D connectors for multi fuel sensor monitoring; Support unique active RFID for automatic anti-theft and driver identification; And many useful functions and extensibility for fleet management and vehicle security purposes.




Application:
1. Vehicle Tracking
2. Car Security/ Anti-Hijack
3. Fleet management
4. Asset tracking






Features & Functions:
* Tracking by SMS/GPRS (TCP/UDP)
* OTA Function
* Engine on/off detection
* Remote Engine cut off
* Built-in backup battery
* Support max 64G SD card store
* Wiretapping/remote listening
* ARM9 high speed microcontroller
* Two way communication (Listen & Speak)
* Real time tracking via the web-platform
* Get position location via call/SMS
* Photo with location & driving information log function
* Get location physical name via SMS & from the web-platform
* Built-in motion sensor for power & GPRS flow saving mode (sleep mode)
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* Built-in 4MB memory & position logging capacity up to 26, 000+ waypoints even no GPRS signal
* RFID kit for driver identification and auto Arm/Disarm functions (movement/towed alert, ignition alert, auto cut off engine etc)
* Analog input for Fuel sensor detecting/monitoring, support max 4 fuel sensor manage




More Alarm Functions:
* Accident alarm
* Oil leaking/Refuel Alarm
* Over speed alert
* Geo-fence alert
* Power failure/low power alert
* SOS Panic button, SOS alert
* Suddenly acceleration/brake alert
* Harsh braking and harsh acceleration alert

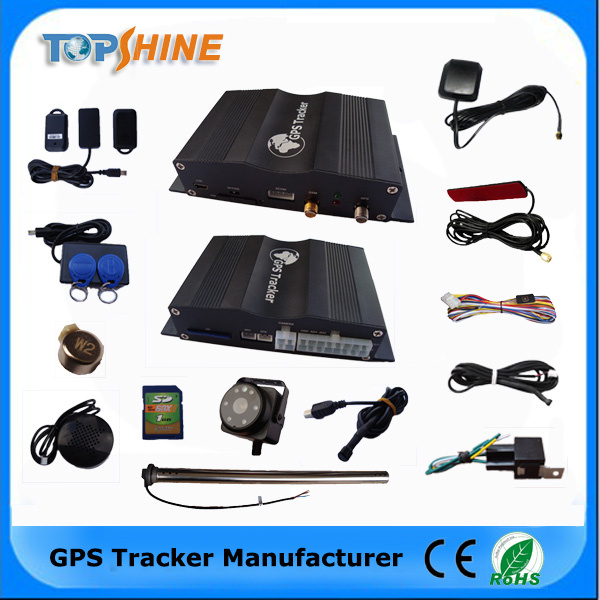

VT1000 Accessories:
Standard Accessories
Main unitSOS button
GSM antennaMicrophone
GPS antennaRelay
Wiring

Optional Accessories
Fuel sensor Crash sensor
Temperature sensor Smart phone reader
Active RFID  Active RFID Tag
 Passive RFID  Passive RFID Tag
 OBDII Camera
 Speaker USB configuration cable




Specifications:
ItemsSpecifications
Dimension110*80*30mm
Weight 180g
Input voltageDC 9V~35V/1.5A
Back-up Battery850mAh
Velocity515 meters/second (1000 knots) max
Operating Temperature-20°C~75°C
Humidity5%~95% Non-condensing
Altitude Limit18,000 meters (60,000 feet) max
LED2 LED lights to show GPS, GSM status
Cold start42sec., average
Hot Start1 sec., average
2G GSM FrequencyGSM 850/900/1800/1900MHz or GSM 900/1800/1900 MHz
3G GSM FrequencyVersion A: UMTS/HSDPA 850/1900MHz
Version E: UMTS/HSDPA 900/2100MHz
Version T: UMTS/HSDPA 850/2100MHz
GPS FrequencyL1, 1575.42 MHz
GPS ChipLatest GPS SIRF-Star III Chipset
GPS Sensitivity-158dB
Positioning Accuracy10meters, 2D RMS
C/A Code1.023 MHz chip rate
Channels20 channel all-in-view tracking
Velocity Accuracy0.1m/s
Time Accuracy1 us synchronized to GPS time
Default datumWGS-84
Reacquisition0.1 sec., average
I/O5   Input               5 Output         1 Camera Port
4 Analog Input       1 RS232 Port         1 USB Port
1 MIC& Speaker Port        1 SD Card Slot

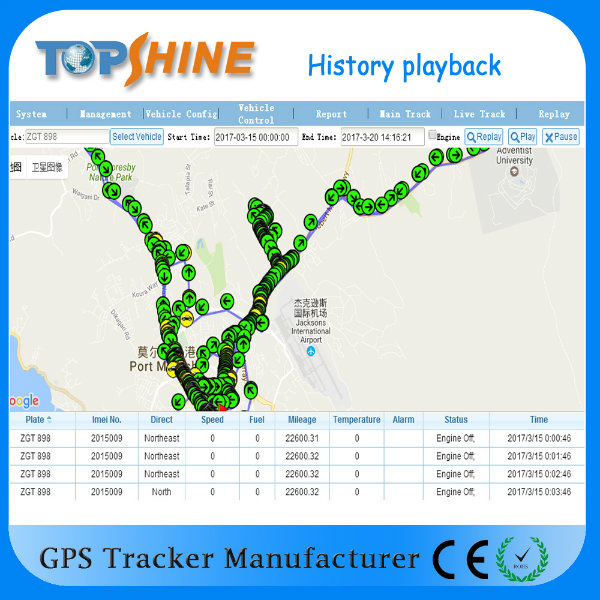

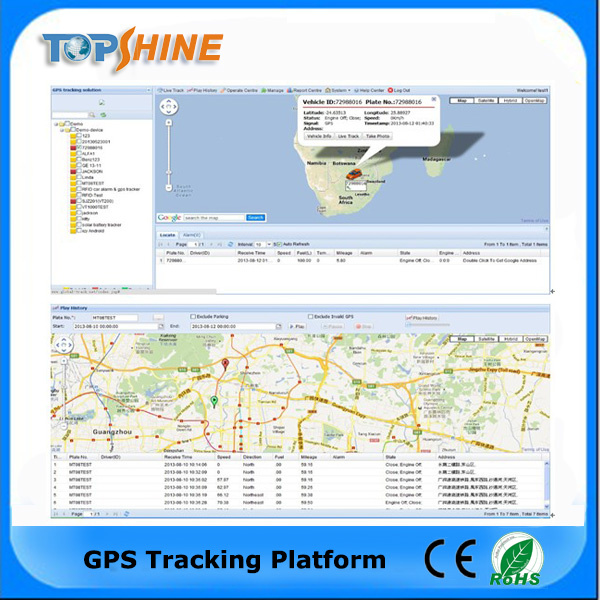

Topshine company provide free tracking platform (web based and mobile APP):

Platform:  www.track-car.com
Username: test1
Password: 123









Our service:
  1. Any inquiries will be replied within 12 hours on work day.
  2. Professional manuafacurer and wholesaler for 10 years.
  3. OEM available:
    • Customized logo or color box
    • We can help you to design and put it into production about your idea.
  4. High quality, fashion design, reasonable&competitive price, fast lead time
  5. After-sale service:
    • All products will have been strictly Quality checked in workshop before packing
    • All products will be well packed before shipping.
    • All our products have 24 mouths warranty, and we are sure our products will be  free from maintenance
  6. Fast delivery:
    • Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
  7. Payment:
    • payment for the order via: T/T , Western Union and Paypal



Inquiry Now
Any more questions, please contact with Jennifer Zhuo





Prod Model: 3G 4G VT1000
Color: Black
Check Car Door Status: Yes
Speeding Alarm: Yes
Is Customized: Yes
