Name: Wld2 Reset Micro Switch 12V Magnetic Elevator Limit Switch
Brand: all-electronics-online.com
SKU: 830211285
Availability: InStock
Rating: 4.9 (74 reviews)

Price:	US $ 0.98/Piece
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	WLD2
Operate Speed:	0.5mm~50cm/Sec
Action Frequency:	120times/Minute
Contactor Resistance:	200m Ohm
Resistance Resistance:	1000m Ohm
Temperature:	-50ºC~65ºC
Humidity:	<95%Rh
Pressing Type:	Long Arm
Protection:	Waterproof
Size:	Small-Sized
Breaking Capacity:	General Type
Environment:	-50~65

Product Description

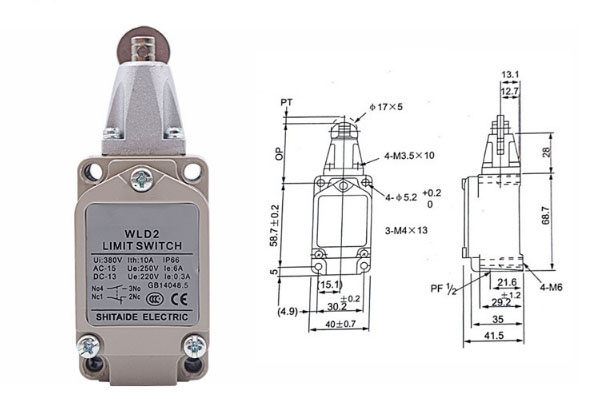

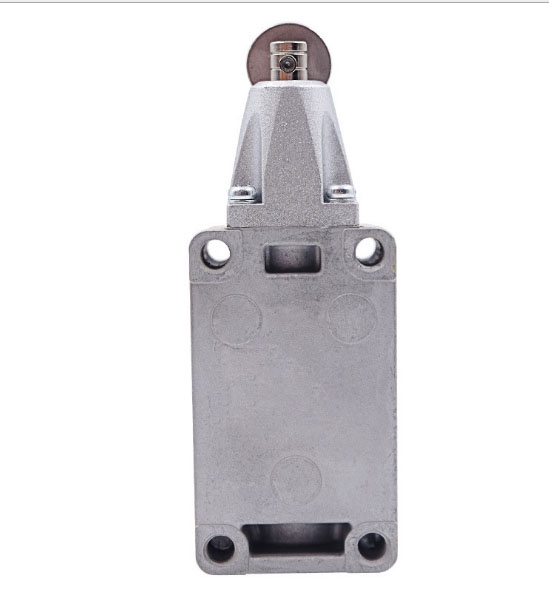

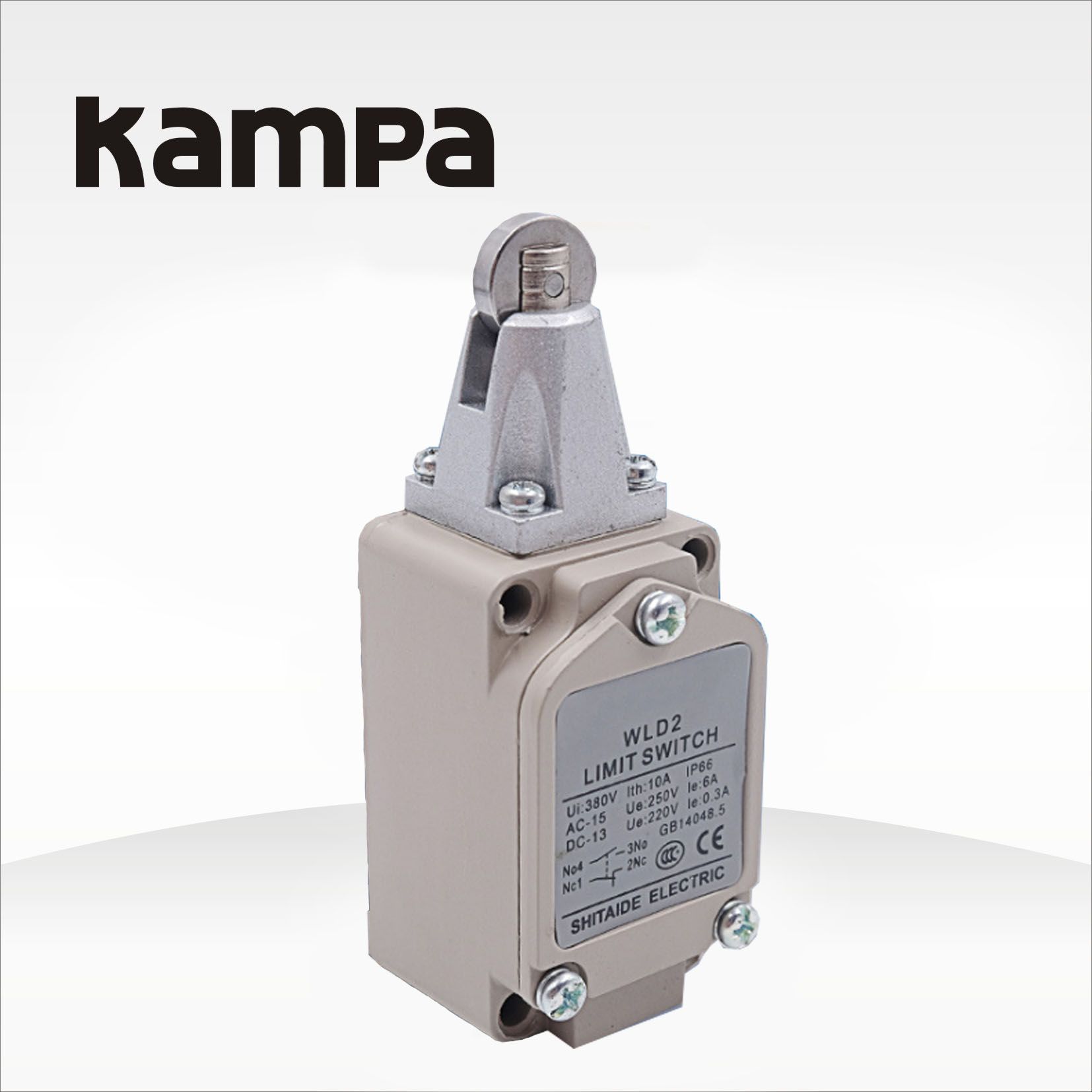

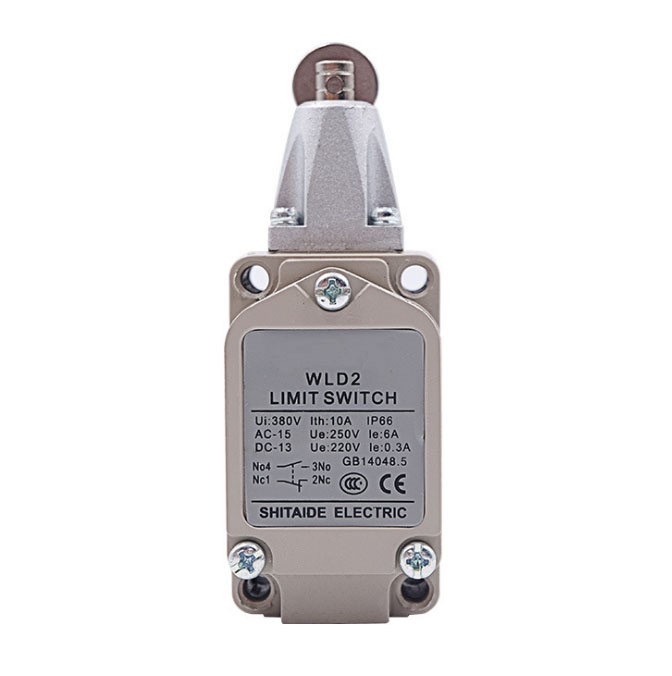

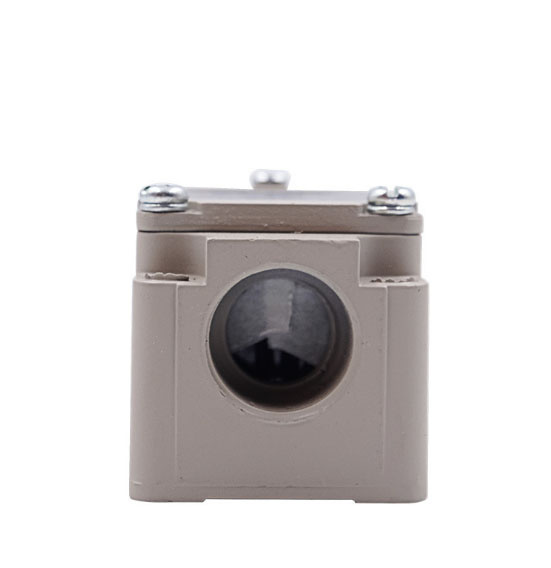

WLD2 reset micro switch 12v magnetic elevator limit switch

Normarive reference:Product:IEC60947-5-1,EN60947-5-1,UL508,CSAC22-2N*14
Components:IEC60204-1,EN6024-1
Ambient temperature:operation:-10~+80ºC
Storage:-40~+80ºC
Virabtion resistance:ICE60068-2-6 10-55HZ,5mm double-amplitude
Shock resistance:IEC60068-2-27:300m/s' Maximum 300ms (30G less than)
Protection class:IP67 NEMA 3.4.13
Mechanical life:15.000.000 times
Rated operating charactristics:AC-15:A300(Ue=240V,le=3A) 1the=10A
Rated insulation voltage:AC1000V(600V)50/60HZ 1min Uimp 2.5KV
AC2200V 50/60HZ 1min Uimp 2.5kv
Insulation resistance:>100MΩ 500V D>100MΩ at 500V
AC2200 50/60HZ 1min Uimp 2.5KV
Operation frequency:120 times/min
Electrical life:750.000 times
Contact resistance:Less than 24MΩ

Company information

A.Punctual delivery time:
We carry out your order into our well-organized production schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.

YUEQING KAMPA ELECTRIC CO.,LTD
ad#666,FeiLong Electric,LiuShi Town,YueQing City,ZheJiang,China
Tel:0086-577-62729846
Fax:0086-577-62780320
Website:www.china-kampa.com
Alibaba Home: elexpert.en.alibaba.com

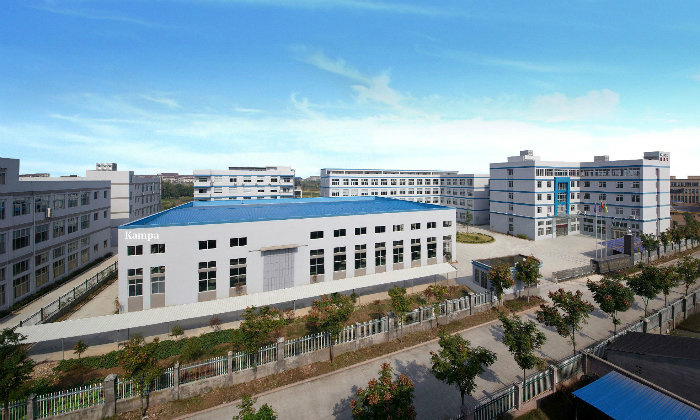

Kama Electric Co., Ltd.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

Established in 2009, Occupies 12000m2.

Our company is the electric and electronic expert. And we can offer more than 600kinds of distributing and controlling system products.

As Kampa have more than 15 share-holding factories for relays, thermostat, heater, automatic voltage switch, temperature controller, push button, cable ties, cable gland, solar connector, use, circuit breaker, distribution box, High voltage transformer, vacuum circuit breaker, etc...

Meanwhile, Most of our goods have gained CE, UL, CCC, BV, SA, CB and SEMKO approval. And we can also offer OEM and ODM service because of our professional teams.

Especially speaking, Kampa CREAT Nonarc Electric Co., Ltd. In 2010.

It is specialized in producing Circuit breaker and Distribution box. It has ISO9001, 5S system and advantage technology equipment.

Welcome to visit us for cooperation!

Kampa - will create a magnificent tomorrow together with you!
