Wroking Stable GPS Tracker with Web Basic Tracking Platform
| Price: |
US $ 38-45/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal,Money Gram |
Wroking Stable GPS Tracker with Web Basic Tracking Platform
Introduce

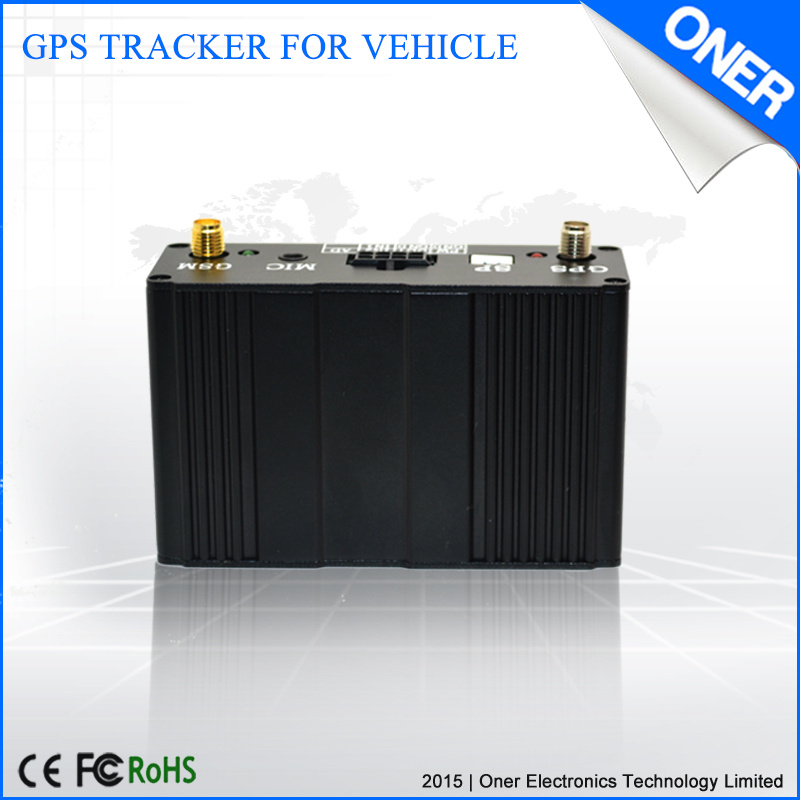

OCT600 is a GPS tracking device that utilizes the latest GPS, and Cellular technologies to provide the
location, direction, speed and history of your vehicle. You can track your devices and manage your a
-ccount via the website.
This device is cost-effect, and highly recommended to use in fleet management, vehicle tracking,
security, logistic and rental service companies, with its imported module, supports funcion extenions,
like fuel monitoring, Firmware update OTA, etc, it is helpful in fleet management and security.
Features
Real time tracking
LBS Tracking
Track by time/distance
Google map link inquiry
Engine cut remotely
SOS emergency alert
Geo-fence alert
Movement alert
Over speed alert
External power cut alert
Track by android APP
Shacking alert
Speed limitation
Vehicle info config and inquiry
Working time setting
Engine detecting and alert
SIM balance inquiry
Fuel monitoring (option)
Mileage Calculation
Firmware update OTA
Voice Monitoring (option)
Miss call reminding for alert
Vehicle maintenance reminding
3 Admin No.s for management
Benefits
Support APP, all can be done by a click, easy to operate;
High capacity CPU, support customizing more functions;
Special features designed for fleet management, improve working effective;
Firmware update OTA, add new features for cutomer any timel;
Improve productivity and service.
Technicial Specification
| Power Supply | +9V - +35V / 1.5A |
| Backup Battery | 550mAh |
| Dimension | 60mmx85mmx30mm |
| Weight | 145g |
| Operating temperature | -20° to 55° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | GSM850/900/1800/1900Mhz |
| GPS Chipset | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158Db |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position | Accuracy 10 m, 2D RMS |
| Velocity | Accuracy 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | <1 sec., average |
| Warm start | <36 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 m (60,000 feet) max. |
| Velocity Limit | 515 m/second (1000 knots) max. |
| Interface | 2 input and 1 output |
| LED | 2 LED lights to show working status |
GPS tracking software
1) Free APP for GPS Tracking, track and control all the fleet vehicles at the same time
2) Web-based GPS tracking platform.
About us:
Oner Electronics Technology Limited
A professional electronic company in Guang zhou, Guang Dong,China, and it was founded in 2005. It focuses on enterprise information construction and integrated of global positioning satellite (GPS), wireless mobile communication (GSM / GPRS).
Oner is a leading GPS real time tracking solutions provider. What Oner can provide is high quality produce and the information technology integrity solution. It includes GPS vehicle trackers, fleet tracking and management system,GPS car rental solutions, GPS school bus and student management system, personal tracking for elders,children, etc. As a responsible electronics technology company, Oner adheres to the core value of innovation, practicality and cooperation. The company dedicates to customer oriented as well. Oner commits to creating maximum value for customers by providing competitive solution and services, dedicated procurement team ensure raw material source; in-house manufacturing produces products with high quality ; R&D team with extensive experience in GPS offers superior and innovative Tracking solution,OEM&ODM service is available.
The products and solutions have been deployed in over 100 countries, serving more than one third of the world's population, and have over 1000 partners with long term bushiness relationship around the world.
| Prod Model: |
OCT600 |
| GSM Frequency: |
850/900/1800/1900MHz |
| Certificate: |
FCC, Ce, RoHS. |
| GPS Data Transfer Way: |
SMS and GPRS |
| Warranty: |
1 Year |
| Power Supply: |
+9V-35V/1.5A |
| Backup Battery: |
550mAh |
| Weight: |
145g |
| GPS Chipset: |
Latest GPS Sirf-Star III Chipset |
| Position Accuracy: |
10 M, 2D RMS |
| Time Accuracy: |
1 Us Synchronized to GPS Time |
| Type: |
GPS Tracker |
| Use: |
Automotive |
| Port Number: |
Multichannel |
| Carrier Frequency: |
Dual-Frequency |
| Chip: |
SiRF |
| Model: |
Oct600 |
| Screen Size: |
No |
| Brand: |
Oner |
| Certification: |
FCC, Ce, RoHS |
