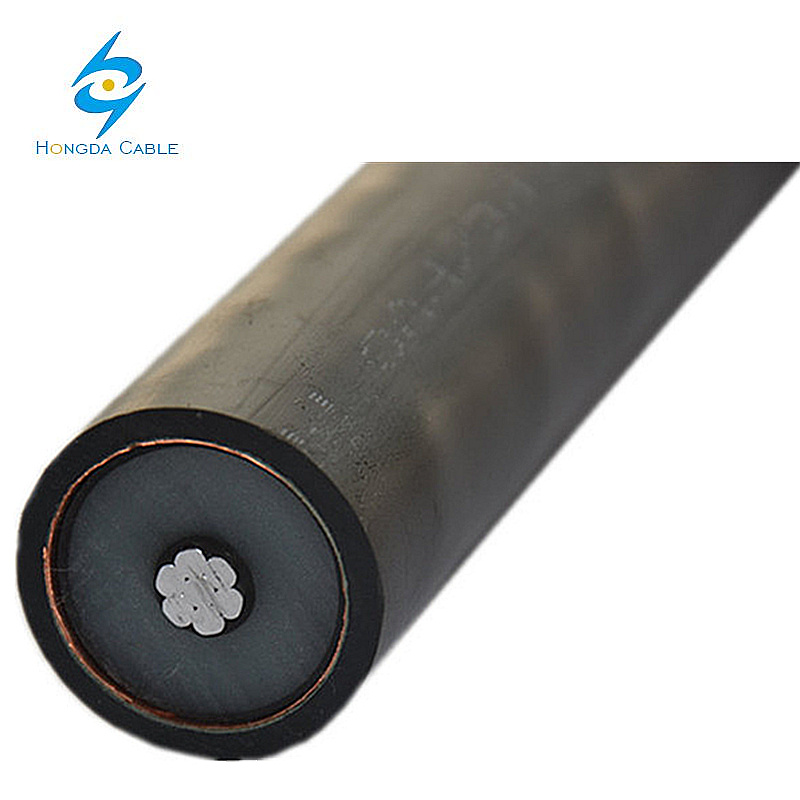

XLPE 11kv Overhead Transmission Line ABC Aerial Bunched Cable

Name: XLPE 11kv Overhead Transmission Line ABC Aerial Bunched Cable
Brand: all-electronics-online.com
SKU: 838084385
Availability: InStock
Rating: 4.9 (55 reviews)

Price:	US $ 4.9-25.9/Meter
Min Order:	500/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

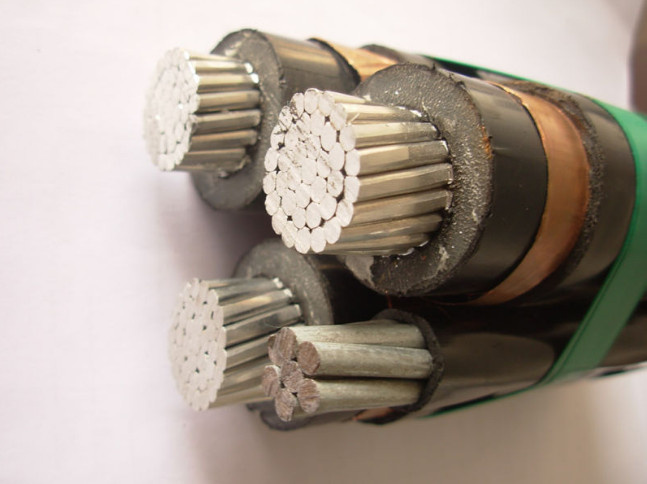

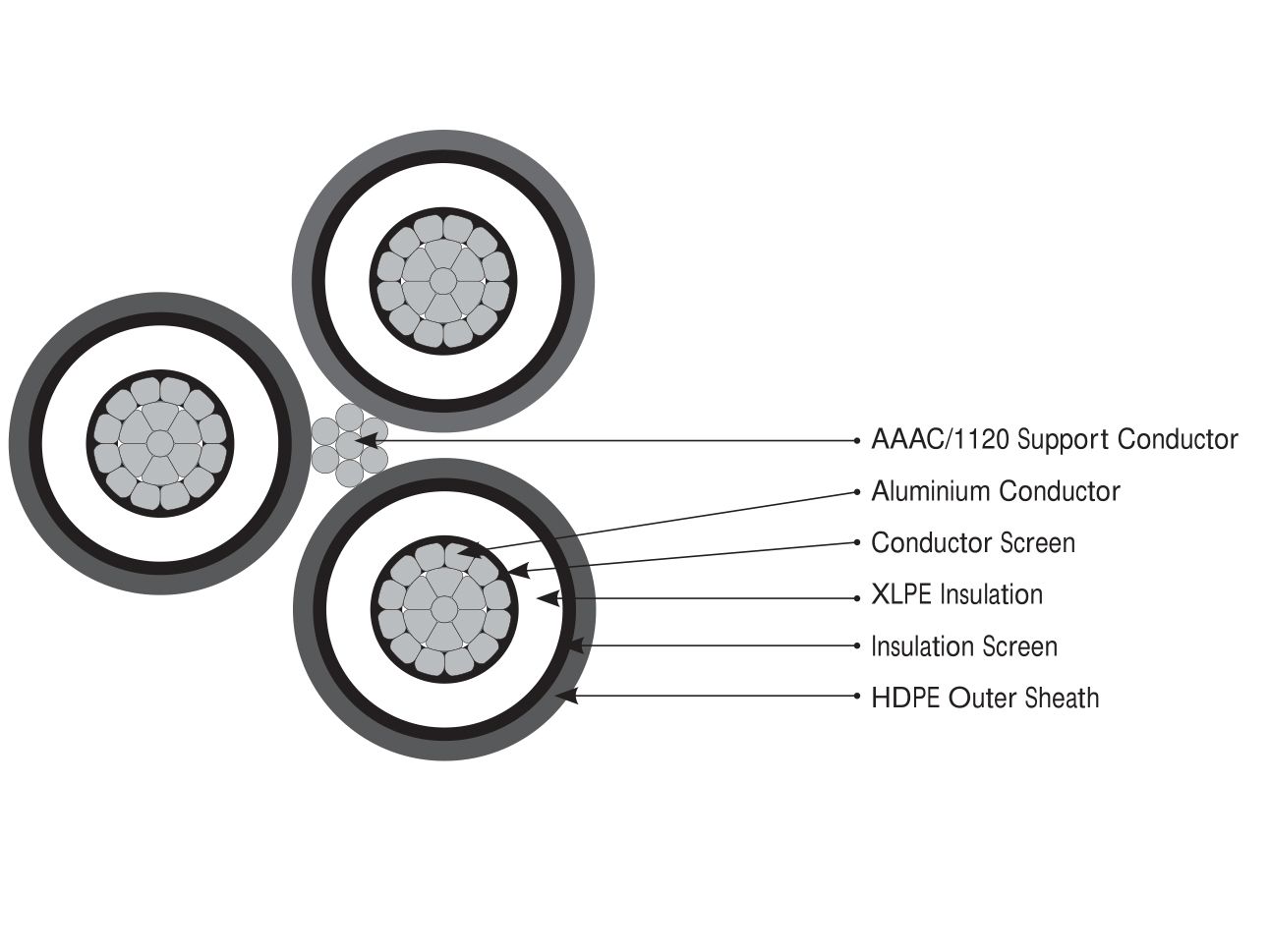

Construction

Phase Conductor: Aluminium

Neutral Non-messenger Conductor: Aluminium

Neutral Messenger Conductor: Aluminium Alloy

Street Lighting Conductor: Aluminium

Insulation: XLPE or PE or PVC(weathering resistance)

Standard:NF C33-209, BS 7870-5, GB/T 12527, IEC 60502

Application

It is extensively used in overhead electric power transmission and distribution lines, especially in rebuilding
of urban and forest region electrified wire netting. This cable improves safety and reliance of electrified wire
netting.

Operating Characteristics

Rated Voltage: Up to and including 0.6/1(1.2)kV 11kv 33kv

Max. Operating Temperature of Conductor: 90oC(XLPE), 70oC(PE), 70oC(PVC)

Max. Short-circuit Temperature of Conductor: 250oC(XLPE), 130oC(PE), 160oC(PVC)

Min. Ambient Temperature under Installation: -20oC

Technical Characteristics Based on Standard NF C 33-209

Designation		Conductor					Average thickness of insulation (XLPE)	Insulated conductor
Conductor type	Nominal area	Number of wires	Max. D.C. resistance at 20oC	Diameter of conductor		Min. breaking load		Overall diameter
	Nominal area	Number of wires	Max. D.C. resistance at 20oC	Min.	Max.	Min. breaking load		Min.	Max.
	mm2	No.	Ω/km	mm	mm	kN	mm	mm	mm
Phase or neutral non- messenger or street lighting	16	7	1.91	4.6	5.1	1.9	1.2	7.0	7.8
	25	7	1.20	5.8	6.3	3.0	1.4	8.6	9.4
	35	7	0.868	6.8	7.3	-	1.6	10.0	10.9
	50	7	0.641	7.9	8.4	-	1.6	11.1	12.0
	70	12	0.443	9.7	10.2	-	1.8	13.3	14.2
	95	19	0.320	11.0	12.0	-	1.8	14.6	15.7
	120	19	0.253	12.0	13.1	-	1.8	15.6	16.7
	150	19	0.206	13.9	15.0	-	1.7	17.3	18.6
Neutral messenger	54.6	7	0.63	9.2	9.6	16.6	1.6	12.3	13.0
	70	7	0.50	10.0	10.2	20.5	1.5	12.9	13.6
	95	19	0.343	12.2	12.9	27.5	1.6	15.3	16.3

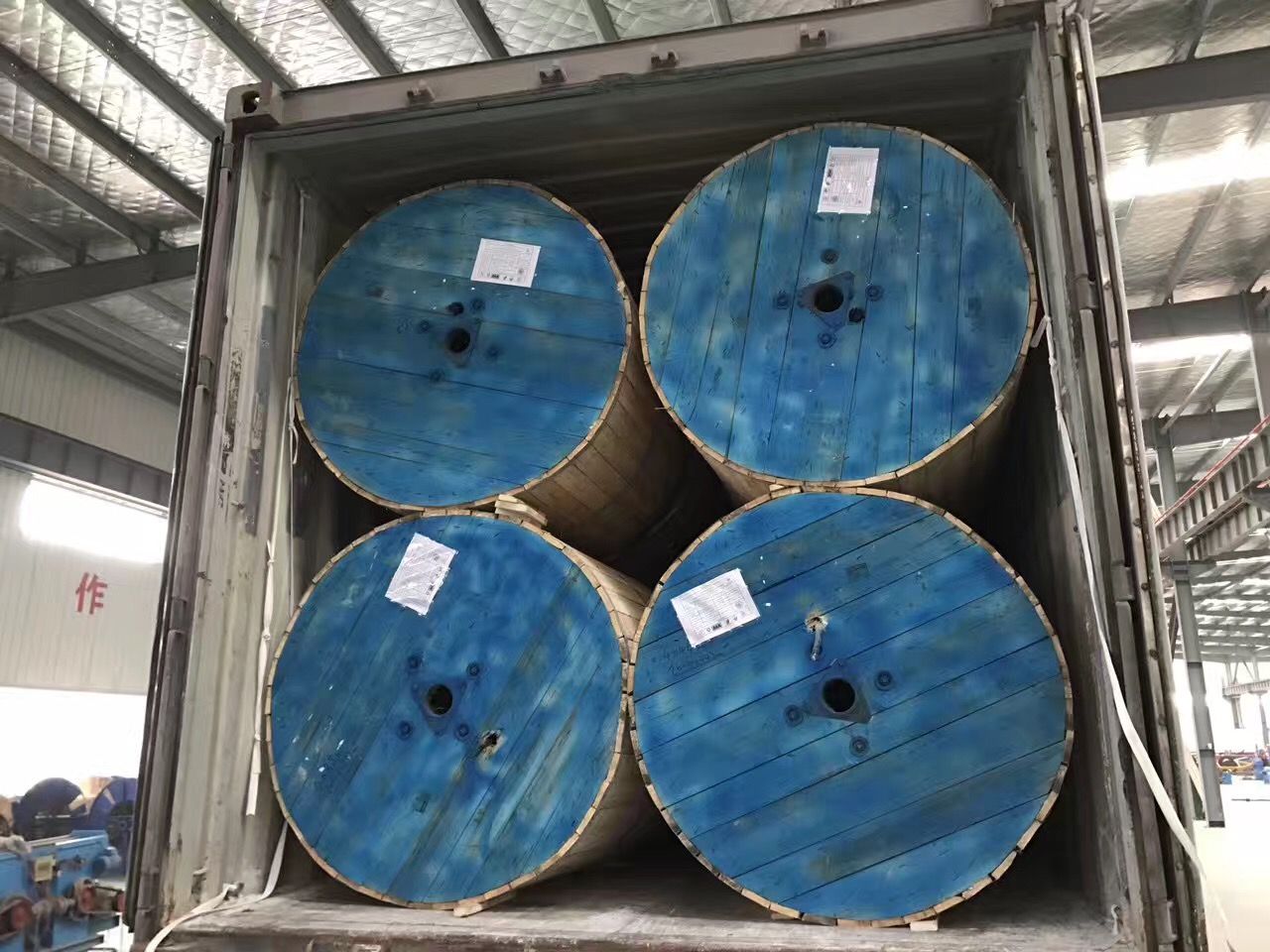

Packing shipping

Why Choose Us ?
1. We have a large production base, and advanced production equipment
2. Have an competitive price and high quality
3. Excellent after-sale service
4. Free issue:packaging list,invoice
5. Powerful technology team
6. Strict quality assurance system and perfect testing means
7. Advanced process equipment
8. Delivery on time
9. Our cable sales to Middle East,Africa,Russia,Southeast Asia, etc.
10.We have a good reputation in the overseas

FAQ
Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock,
it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance,70% T/T balance before shipment

If you have another question, pls feel free to contact us below

Prod Model:	11kv ABC Aerial Bunched Cable
Type:	Insulated
Conductor Type:	Stranded
Application:	Underground
Conductor Material:	Aluminum
Certification:	CCC
Sheath Material:	Bare
Insulation Material:	PVC PE or XLPE
Brand:	OEM

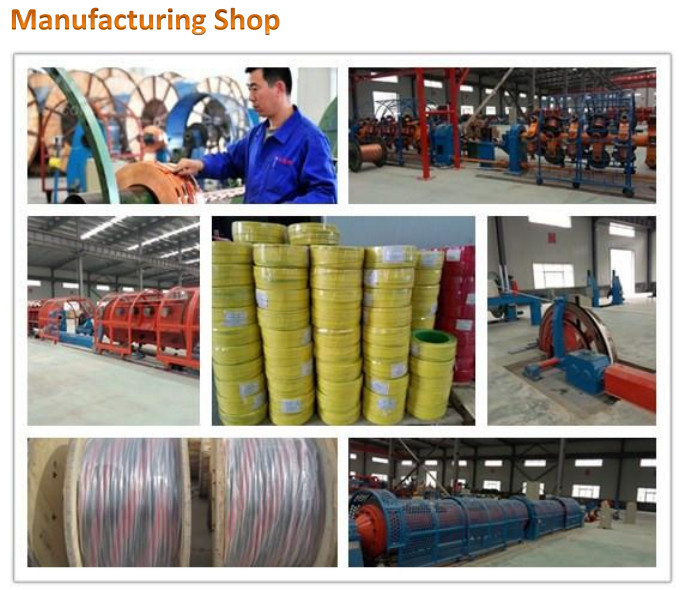

Henan Hongda Cable Co., Ltd. Located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Our company covers an area of 100, 000 square meters, including 50, 000 square meters of building area, and has more than 120 staff members and professional workers accounting for one third. Our fixed assets of 90, 000, 000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity.

Henan Hongda Cable Co. Ltd. Is the original Zhengzhou Hongda Cable Co. Ltd. Established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products, We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 70 (sets) domestic and oversea-leading production and testing equipment.

Our company's products have passed the ISO9001 Quality Management System Certification, the products also passed China Compulsory Certification (3C certification).

Our company insists on the principle of "Taking high and new technology as guide and being based on modern management". Our products sell well all over the world and the main reason is that we attach great importance to business honesty. We sincerely hope to be your partner.
