Yc Series Heavy-Duty Single Phase Capacitor Start Motor

Name: Yc Series Heavy-Duty Single Phase Capacitor Start Motor
Brand: all-electronics-online.com
SKU: 606414284
Availability: InStock
Rating: 4.9 (142 reviews)

Price:	US $ 105-117/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	50/Piece
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	YCL Series, 0.55- 5.5kW
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Power:	0.55-5.5kw
Frame Material:	Cast Iron
Frame Size:	80m-132L
Voltage:	110, 120, 220, 230, 240V
Frequency:	50 or 60Hz
Mounting Position:	B3, B5, B35
Protection Class:	IP54
Insulation Grade:	F
Winding Protections:	PTC, PT100 and Kty84-130 as Option
Warranty:	12 Months
Application:	Power Tools
Operating Speed:	Low Speed
Number Of Stator:	Single-Phase
Rotor Structure:	Squirrel-Cage
Casing Protection:	Closed Type
Species:	Yc Series Single Phase
Starting Mode:	Capacitor Start
Certification:	CE
Brand:	OEM

Product Description

Yc Series Heavy-Duty Single Phase Capacitor Start & Run Motor

Standard features:
Cast iron frame: 80-132
Mounting type: B3 B14 B34 B5 B35
Power: 0.55kw(0.75HP)-5.5kw(7.5HP)
Squirrel cage rotor/Aluminum die cast
Start & run capacitor
Duty Type: S1
Protection grade: IP54
Insulation class: F
Voltage: 220V

Optical features:
Aluminum frame
Mounting type: B5/B35/B14
Special voltages
Frequency: 60Hz

Applications:
Fans, pumps, pulleys, cranes, continuous conveyors, grinders etc.

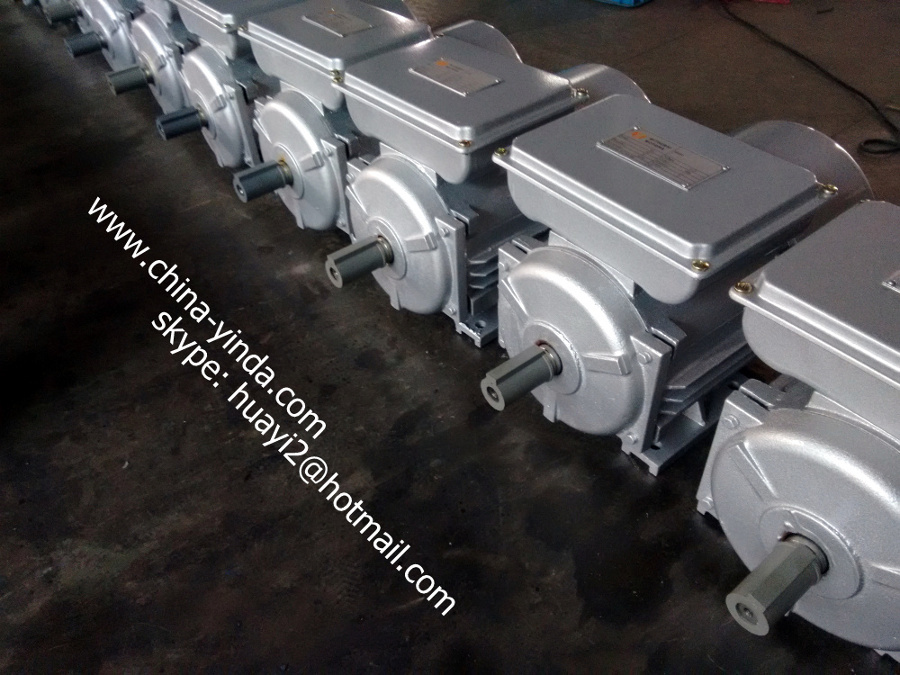

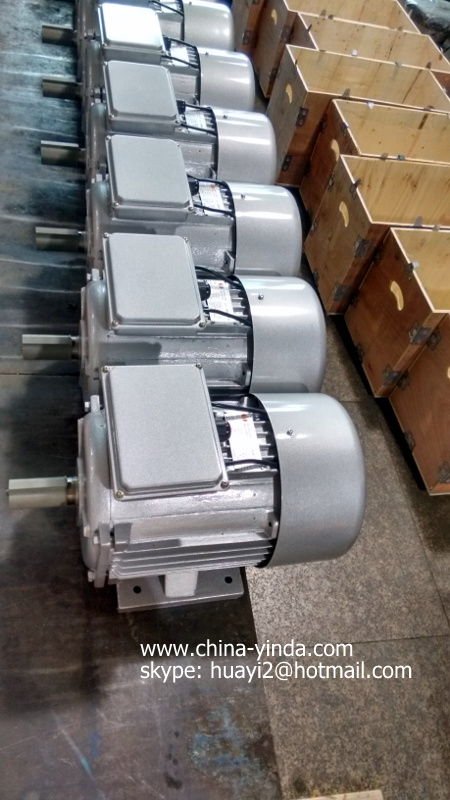

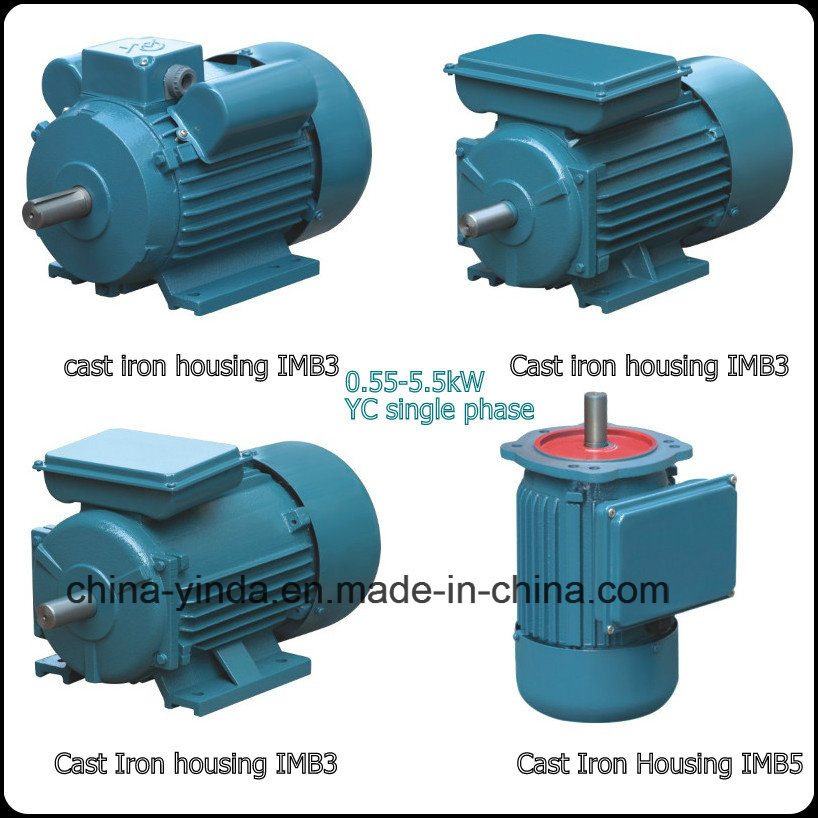

Photos:

Technical data

Type	Rated output		Voltage	Frequency	Speed	Efficiency	Power factor	Rated Current	ILR / Irated	TLR/Trated	LWA
Type	Kw	HP	V	Hz	r/min	%	cosΦ	A	ILR / Irated	TLR/Trated	Lw dB(A)
YCL80M1-2	0.75	1	220	50	2800	72.0	0.95	5	5.5	1.8	75
YCL80M2-2	1.1	1.5	220	50	2800	74.0	0.95	7.1	5.5	1.8	75
YCL90S-2	1.5	2	220	50	2840	75.0	0.95	9.6	5.5	1.8	78
YCL90L-2	2.2	3	220	50	2840	76.0	0.95	13.9	5.5	1.7	78
YCL100L-2	3	4	220	50	2840	78.0	0.95	18.4	6	1.7	83
YCL112M-2	3.7	5	220	50	2840	79.0	0.95	22.4	6	1.7	83
YCL132S-2	5.5	7.5	220	50	2880	80.0	0.95	32.9	6	1.7	83
YCL80M1-4	0.55	0.75	220	50	1400	68.0	0.92	4	5	1.7	70
YCL80M2-4	0.75	1	220	50	1400	70.0	0.95	5.1	5	1.7	70
YCL90S-4	1.1	1.5	220	50	1400	71.0	0.95	7.4	5	1.7	73
YCL90L-4	1.5	2	220	50	1400	73.0	0.95	9.8	5	1.7	73
YCL100L1-4	2.2	3	220	50	1400	75.0	0.95	14	5	1.7	78
YCL100L2-4	3	4	220	50	1400	77.0	0.95	18.6	5	1.7	78
YCL112M-4	3.7	5	220	50	1430	78.0	0.95	22.7	5.5	1.7	83
YCL132S-4	5.5	7.5	220	50	1440	79.0	0.95	33.3	5.5	1.7	83

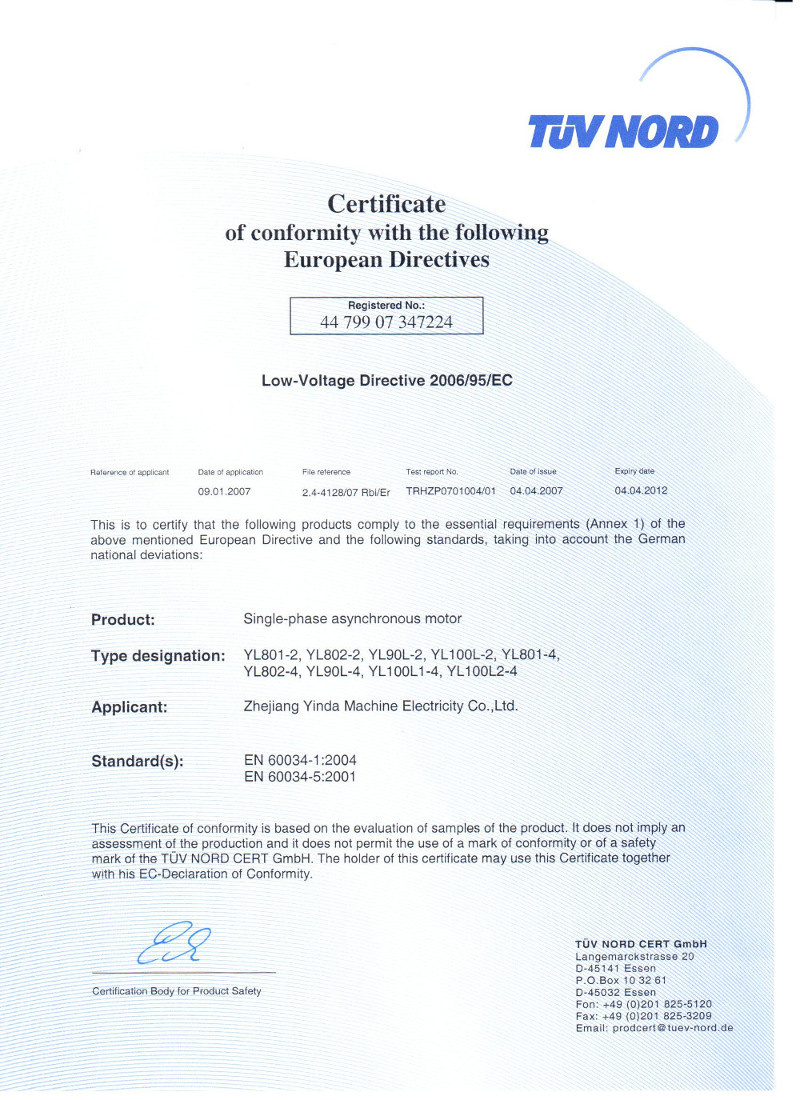

CE Certificate

Yinda located in Wenling city of Zhejiang provice, which is 15 minutes driving from Wenling Train Station.

Establised in 1988 and renamed in 2003, Zhejiang Yinda Machine Electricity Co., Ltd. Engaged in developing reliable motors, as well as welding machine and scrao wire stripping machines to satisfying the market.

Our products:

1. Electric Motors:

Single-phase AC motor, (including Capacitor start & run motor, capacitor run motor, capacitor start motor, resistance start motor) ML, MC, MY, YL, YC, YY, YU, YCL

Three-phase Electric motor, IE3, IE2

Three-Phase double speed motor, YD series

Electromagnetic Brake AC Motor YEJ/Y2EJ series

Change Speed Frequency Vataible Inverter Duty Motor YVP/YVF2 series

Custom motors are available.

2. Kinds of recycling equipment such as Scrap Wire stripping machine & Motor reccycling machine

3. Welding Machines:

MMA inverter Welding, ZX7 series

TIG Welding

MIG Welding

BX1 series AC Arc Welding

Bx6 Series AC Arc Welding

Bx6 series stainless body welding

Bx series wooden leg welding
