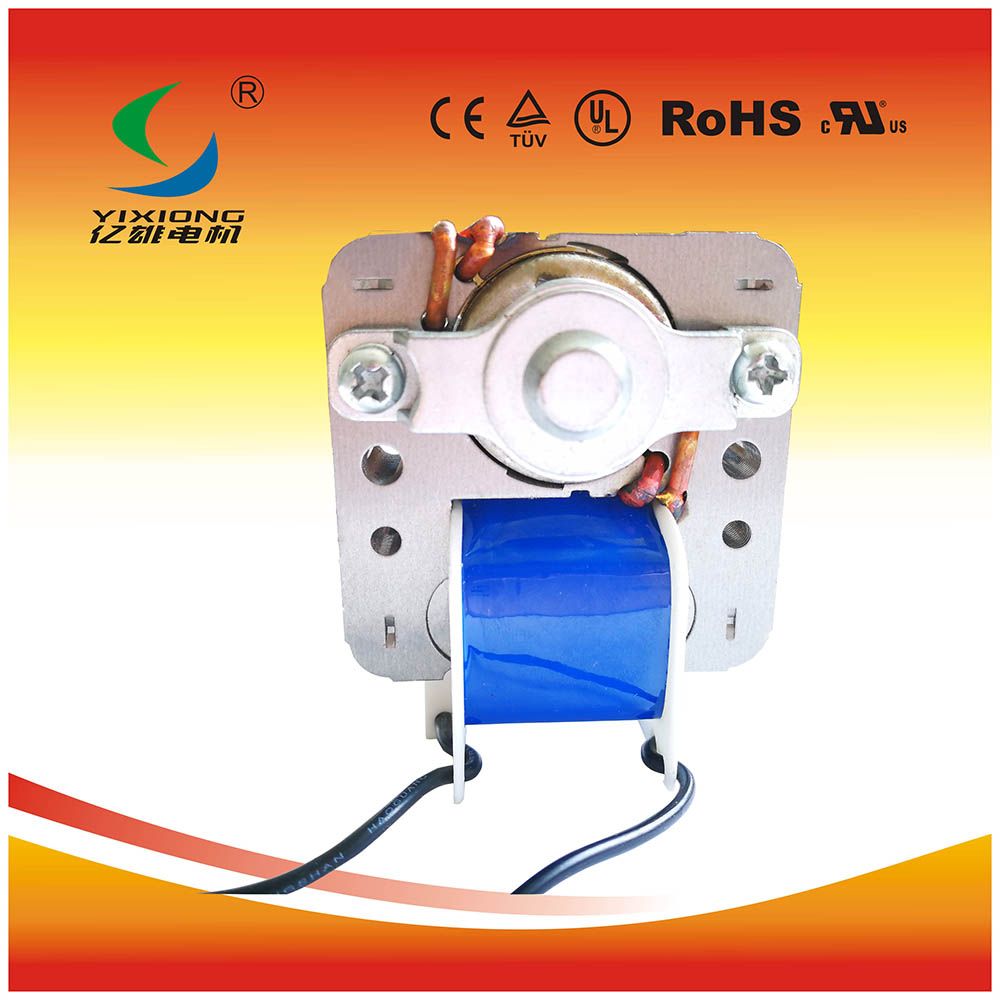

YJ48 Motor Mini Ventilator Motor

Name: YJ48 Motor Mini Ventilator Motor
Brand: all-electronics-online.com
SKU: 838740845
Availability: InStock
Rating: 4.7 (141 reviews)

Price:	US $ 1-6/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Fan Motor Discription :
1. Stator diameter: 48*48 mm, 61.5 * 61.5 mm
2. Shaft diameter: 4, 4.6, 5, 5.5, 6 mm
3. Shaft length: As your request
4. Lead wire: 2*300mm, also can be made according to your demands
5. Number of pole: 2 pole
6. Rotation: CW/CCW
7. Insulation class: E/ B /F /H
Application
1. Fan-heater, Baking Oven, Air-cleaner, Fan, Exhaust fan, Humidifier, Water Dispemser etc
2. It is safty and reliable, low noise, characteristics hard, good starting, long life, etc.
3. This AC motor can be designed and produced according to your request.

Model	Voltage	Frequency	Current	Power	Speed	Class
YJ48-08	110/220V AC	50/60 Hz	0.08 A	6.5 W	2500 RPM	E/B/F/H
YJ48-10	110/220V AC	50/60 Hz	0.10 A	7.5 W	2650 RPM	E/B/F/H
YJ48-12	110/220V AC	50/60 Hz	0.13 A	10.0 W	2800 RPM	E/B/F/H
YJ48-15	110/220V AC	50/60 Hz	0.15 A	13.5W	1300 RPM	E/B/F/H
YJ48-20	110/220V AC	50/60 Hz	0.17 A	23.5 W	2400 RPM	E/B/F/H
YJ48-25	110/220V AC	50/60 Hz	0.18 A	29.5 W	2500 RPM	E/B/F/H

Model	Voltage	Frequency	Current	Power	Speed	Class
YJ61-10	110/220V AC	50/60 Hz	0.18 A	13.0 W	1850 RPM	E/B/F/H
YJ61-13	110/220V AC	50/60 Hz	0.20 A	16.0 W	1800 RPM	E/B/F/H
YJ61-16	110/220V AC	50/60 Hz	0.24 A	25.0 W	2500 RPM	E/B/F/H
YJ61-20	110/220V AC	50/60 Hz	0.28 A	27.0 W	2400 RPM	E/B/F/H
YJ61-25	110/220V AC	50/60 Hz	0.31 A	30.0 W	2480 RPM	E/B/F/H
YJ61-30	110/220V AC	50/60 Hz	0.35 A	32.0 W	2450 RPM	E/B/F/H
YJ61-40	110/220V AC	50/60 Hz	0.43 A	36.0W	2400 RPM	E/B/F/H

Application:

1. This shaded pole motor could be used for Fan-heater, refrigerator, Air-Conditioner, Microwave oven, Blender,
Air-cleaner, Fan, Exhaust fan, Humidifier, Dehumidifier and Medical, Household and industrial appliances;
2. It is safety and reliable, low noise, characteristics hard, good starting, long life, etc.;
2. This AC motor can be designed and produced according to your request.

Delivery terms:

1, T/T in advance will be our popular payment terms.
2, We'd like to send you some samples for your close for your close inspectiong first.
3, We have detailed specifications. If you are interested in it, please write to me or talk me on TM.

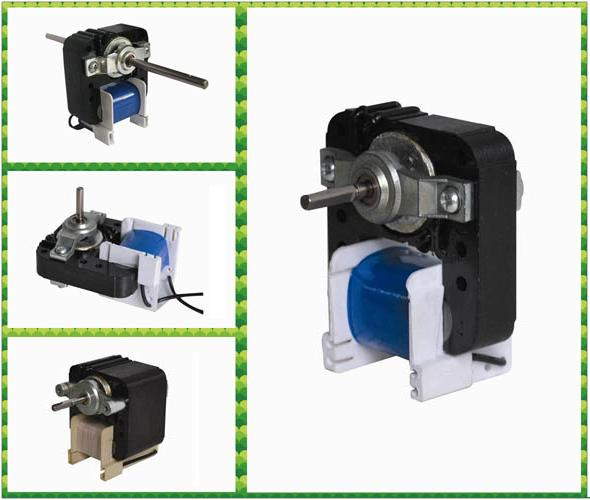

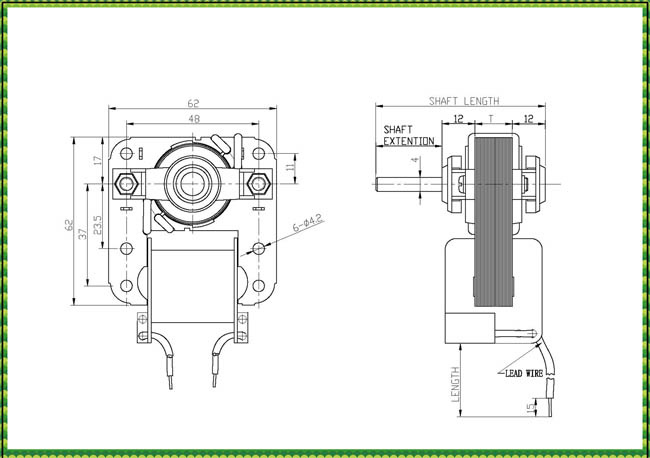

Image and Drawing

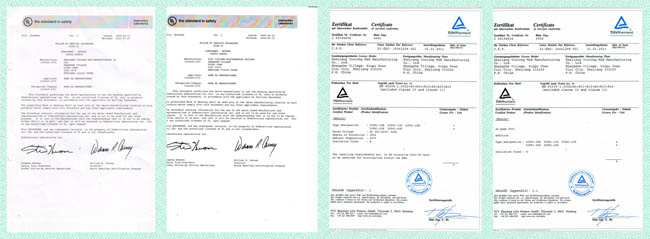

Certificate

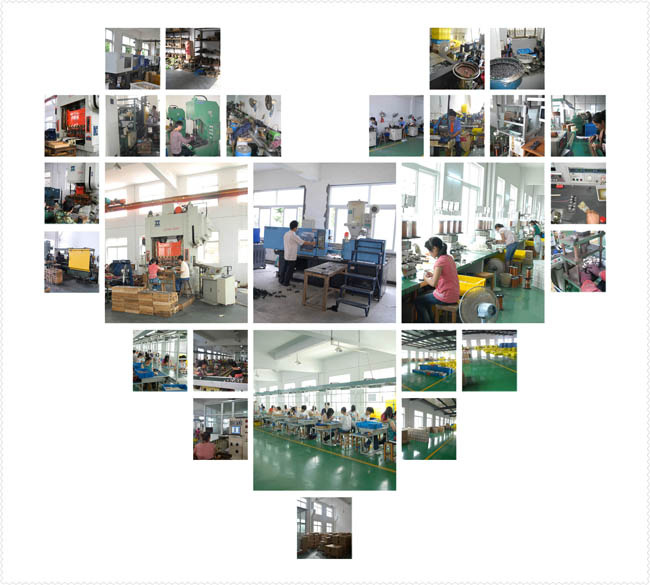

Production

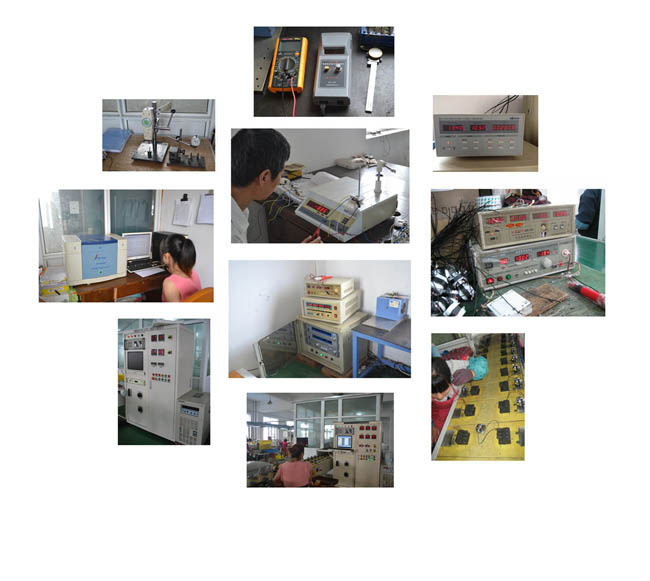

Inspection

Contact us

Prod Model:	YJ48
Supply Voltage:	220-240V 50Hz 100-120Hz 60Hz
Core Material:	Sillicon Sheet
Wire Material:	Copper
Insulation Class:	E / F / H
Structure:	Electromagnetic
Application:	Household Appliance
Certification:	Ce, UL
Brand:	Yixiong

Established in 1990s, Zhejiang Yixiong M&E Manufacturing Co. Ltd is manufacturer specializing in Single Phase Shaded Pole Motor. Our products are widely applied in household appliances, ventilation systems and equipment of condensation etc.

We are located in Cixi, Ningbo, China, which is the second biggest household electrical appliances production base, 50 kilometers east from Ningbo Harbor, adjoining Shanghai by the longest sea-crossing bridge of the world----Hangzhou Bay Bridge in the north, with geographical superiority and easy of access. The area of factory is 20000 sq. M, and there are more 500 employees.

The company operates strictly in accordance with ISO9001-2000 "Quality Control System" from design to sales. Our products are approved CE, TUV, UL etc, and are sold to all parts of country at home, and export to Japan, Korea, America, Russia, Middle East, Europe, some country from Southeast Asia in a large amounts. We win believe in and support from our customer for good quality, reasonable prices, complete hospitality service, and have a well name.

More serve our god, we accept OEM/ODM plan in precision stamping parts, precision injection plastic, precision casting etc.
