Detailed Info

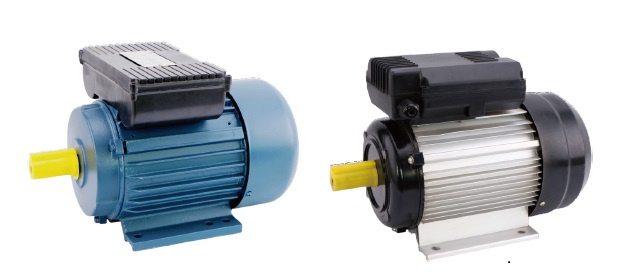

YL series motor is totally enclosed fan-cooled two-value capacitor asynchronous motor, it has a simple structure, safe and reliable operation, easy maintenance and excellent technical and economic indicators and so on. YL series motors for general use motors suitable for driving a variety of small machine tools, transport machinery, agricultural machinery, food machinery.
Working conditions:
YL series motor at ambient temperature does not exceed 40 , not more than 1000 meters above sea conditions, continuous operation at rated power.

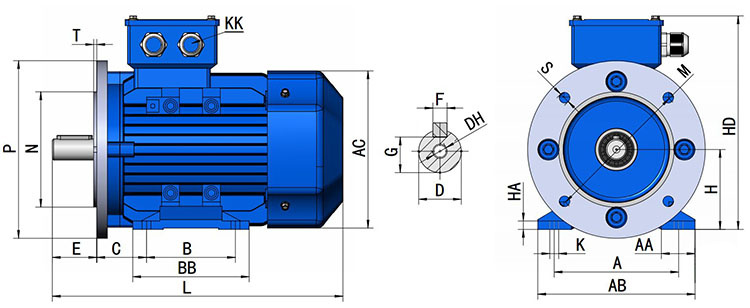

Base center height: 71 ~ 132mm
Rated voltage: 215=240V
Power range: 0.25 ~ 7.5kW
Rated frequency: 50Hz or 60HZ
Duty: S1
Insulation Class: F
Protection: IP54
Cooling: IC 411
- Motor will be 100% copper wise.
- Body and Housing will be cast Iron orAluminum.
- Bearing will be high quality
- High efficiency
- CR800 stator
| single phase electric motor | | | | | |
| Model | Output | Speed | Voltage | stator | frequency | housing | Mounting |
| | kW | r/min | V | | | | |
| YL711-2 | 0.37 | 2860 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YL712-2 | 0.55 | 2860 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YL801-2 | 0.75 | 2860 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YL802-2 | 1.1 | 2860 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YL90S-2 | 1.5 | 2860 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YL90L-2 | 2.2 | 2860 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YL112M-2 | 3 | 2860 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| | | | | | | | |
| YL712-4 | 0.37 | 1450 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YL801-4 | 0.55 | 1450 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YL802-4 | 0.75 | 1450 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YL90S-4 | 1.1 | 1450 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YL90L-4 | 1.5 | 1450 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YL100L1-4 | 2.2 | 1450 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YL100L2-4 | 3 | 1450 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| | | | | | | | |
| YC112M1-2 | 3.7 | 2860 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YC112M2-2 | 4 | 2860 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YC132S1-2 | 5.5 | 2860 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YC132S2-2 | 7.5 | 2860 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YC112M-4 | 3.7 | 1450 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YC112M2-4 | 4 | 1450 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YC132S-4 | 5.5 | 1450 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
| YC132L-4 | 7.5 | 1450 | 215-240 | CR800 | 50/60HZ | CAST Iron | B3 |
FAQ:
Q: What is the payment terms?
A: 30% T/T in advance, 70% before shipment, L/C at sight, Western Union or Paypel
Q: What is your delivery time?
A: Within 25-30 days after receiving deposit.
Q: Do you offer OEM service?
A: Yes. We accept OEM service.
Q: What is your MOQ of this item ?
A: 10PCS per item.
Q: Can we type our brand on it?
A: Yes of course.
Q: Where is your loading port ?
A:Ningbo Port, zhejiang, China.
Q: What is your production capacity?
A: About 200PCS per day.

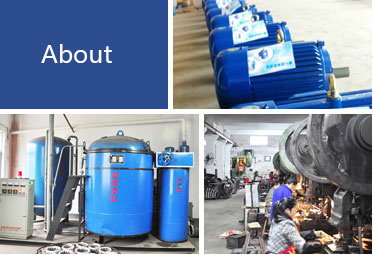

Zhejiang Fanglei Machine & Electric Co., Ltd. is located in Zhejiang, East China Sea in Taizhou. Ointly established the production of small and medium-sized production base for kinds of electric motors. The company focus on R & D and production of the wider use of technology, advanced small and medium-sized electric motors for domestic and foreign markets, the main products are in line with the international IEC standard three-phase asynchronous motors Y series cast iron motor and Y2 series with cast iron and aluminum housing motor

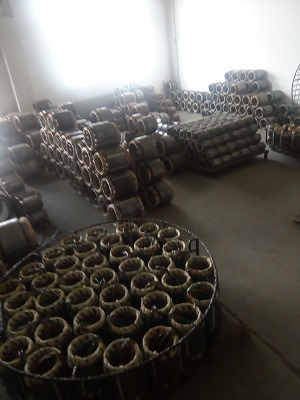

History: 25 years experience of manufacturing stator, motor, water pumps;
Scale: Covers working area of 6, 000 square meters. Have more than 200 employees;
Technology: A group of professional technical engineers and a strong R&D team;
Management: Scientific management and strict quality control system;
Equipments: Advanced automatic production line and test equipment;
Innovation: Continuously diversify products range to satisfy customers'needs, Production capacity: 30, 000 PCS/month;
Marketing network: Europe, Asia, Africa, America, etc;
Certificate: CE, GS, RoHS, IS09001: 2008,
The company established a strong R & D team to continuously optimize the product design and manufacturing processes, improve quality control and advanced production testing equipment, with the characteristics of modern management model, the company strictly in accordance with international standards ISO9001: 2008 quality system
