| Prod Model: |
YR |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Slip Ring High Voltage Motor |
| Protect Feature: |
Enclosed |
| Structure: |
Asynchronous Motor |
| Phase: |
Three Phase |
| Color: |
Grey or Other |
| Shape: |
Linear |
| Scope Of The Center Height: |
H355~H1000 |
| Work Mode: |
S1 |
| Protection Class: |
IP55 |
| Insulation Class: |
F |
| Function: |
Driving |
| Number Of Stator: |
Three-Phase |
| Number Of Poles: |
2, 4, 6, 8, 10, 12 |
| Brand: |
Pinnxun |
| Certification: |
CE, ISO, CCC |
Product Description

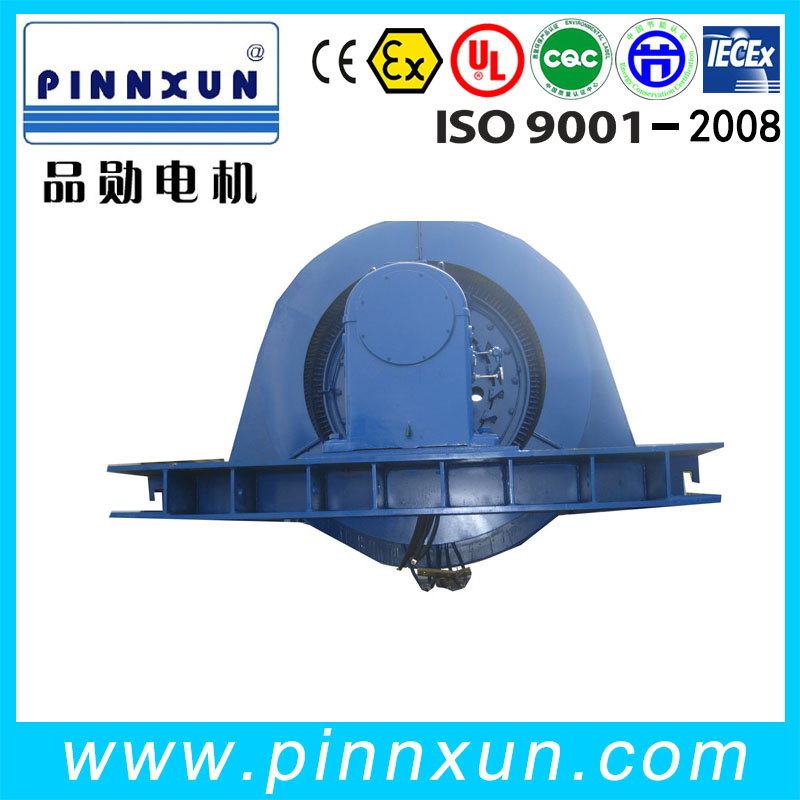

Product: YR(IP23) slip ring electric motor
Feature and usage
YR motor for mill Feature and usage:
YR Series (6kv 10kv)slip ring motor are of wound rotor three phase asynchronous motor (center height from 355mm to 1000mm), which complies with JB/T7594-1994 and JB/T10314.1-2002. The protection degree of the YR motor is of IP23 and cooling method is of IC01
The motor has such advantage as high efficiency, energy saving, low noise, low vibration, light weight and reliable performance. They are easy for installation and maintenance.
General purpose including compressor, Water pump. Crack machine, Cut machine, Transporstation machine and other equipments, It's also used as the primitive drive for the mine mechanical industry, Petroleum &chemistry industry, Power plant and so on.
YR slip ring electric motor Model Explanation
YR slip ring electric motor Motor Performance
Power range: 160kw-5600kw
Frame Size: 355-1000mm
Rated Voltage: 3KV 6KV 10KV
Speed; 3000rpm 1500rpm 1000rpm 750rpm 600rpm
Protection Class: IP23
Cooling type; IC01
Ambient Temperature: -15° C~40° C
Altitude: Not exceed 1000 Meter
Rated Frequency: 50Hz/60Hz
Insulation Class: F
Temprature rise: B
Working Duty: S1(Continuous)
Our Servies
WHY CHOOSE US
WHAT WE DO AT PINNXUN
Stamping of lamination
Rotor die-casting
Winding and inserting - both manual and semi-automatically
Vacuum varnishing
Machining shaft, housing, end shields, etc
Rotor balancin
Painting - both wet paint and powder coating
Motor assembly
Packing
Inspecting spare parts every processing
100% test after each process and final test before packing.
Warranty Terms:
1. Order warranty: We have large production capacity, can ship in a short time.
2. Quality warranty: We test every motor one by one to ensure our quality before we deliver the
Motors.
3. Shipping warranty: We choose the fastest and the most reliable forward agent to deliver our motors.
Delivery terms: Ex-works/FOB, CFR and CIF.
4. Service after sale warranty: Our motors warranty time: 12 months. And We have professional team
Who work on service after sale to help you to solve your technical problem. We will try our best to
Answer all your questions and improve the defect.
5. Replacement warranty: Once you find our motors is defected, we will replace it unconditionally.
|
No. |
Squirrel cage motor |
Y |
YKK |
YKS |
Y2 |
|
Slip ring motor |
YR |
YRKK |
YRKS |
/ |
|
1 |
Structure |
Box-type construction, made up of steel plates welded with each other |
Compact struction |
|
2 |
Cooling method |
IC01 or (IC11, IC21, IC31) |
IC611 or IC616 |
IC81W |
IC411 |
|
3 |
Natural ventilation, with top mounted protection cover |
With top mounted air-air cooler |
With top mounted air-water cooler |
|
|
4 |
Protection type |
IP23 |
IP44 or IP54 |
IP44 or IP54 |
IP54 |
|
5 |
Insulation |
F |
|
6 |
Mounting arrangement |
IMB3 |
|
7 |
Voltage available |
3kv, 3.3kv; 6kv, 6.6kv; 10kv, 11kv |
|
8 |
Frequency available |
50HZ 60HZ 0-100HZ |
