Product: YB2 Explosion proof mining explosion proof motor
YB2 YB3 ATEX IECEX Explosion Proof high effciency Coal Mine mining three phase ac induction asynchronous electric Motor
Feature and usage
YB2 ranges of three-phase induction motors are explosion proof motor obtained by renewal and generation-changing of YB ranges of explosion proof motor . The performances of the products have come up to advanced international standards.
The motors have the advantages of higher efficiency, energy saving, higher locked-rotor torque, lower noise, smaller vibration, safe and reliable operation and beautiful appearance, etc. The outputs, mounting dimensions and their corresponding relationships comply with IEC standards.
YB2 series electric explosion proof motor are designed and manufactured into explosion proof type motor and the explosion proof property conforms to China National Standards: GB3836.1-2000 Electrical Apparatus for Explosive Gas Atmospheres-General Requirements. GB3836.2-2000 Electrical Apparatus for Explosive Gas Atmospheres- Explosion proof Enclosure d and standards IEC79-1, BS4683 and EN50018. ExdI- safe for use in the non-mining surfaces of underground coal mines where the explosive mixtures of methane or coal-dust are present. ExdIIAT4 - safe for use in plants where the explosive mixtures of IIA Class, TI, T2, T3 or T4 are present. ExdIIBT4 - safe for use in plants where the explosive mixtures of IIB Class, TI, T2, T3 or T4 are present. ExdIICT4 - safe for use in plants where the explosive mixtures of IIC Class, TI, T2, T3 or T4 are present.

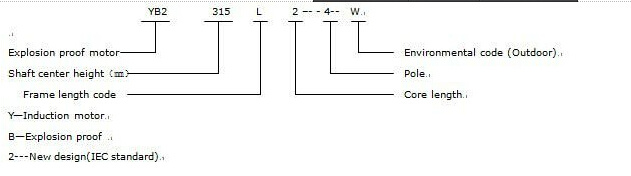

YB2 flame proof mining motor Model Explanation
YB2 flame proof mining motor Motor Performance
Explosion proof mark:EXD1 EXDIIAT4 EXDIIBT4 EXDIICT4
Certificate:IECEX ATEX(for Europe market)
Ambient Temperature: -15°C~40°C
Altitude: not exceed 1000 Meter
Rated Voltage: 380V or any voltage between 220-760V
Rated Frequency: 50Hz/60Hz
Protection Class: IP55
Insulation Class: F/H
Temprature rise: B/F
Cooling Method: IC0141
Working Duty: S1(Continuous)
Humidity: Lower than 90%
Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above

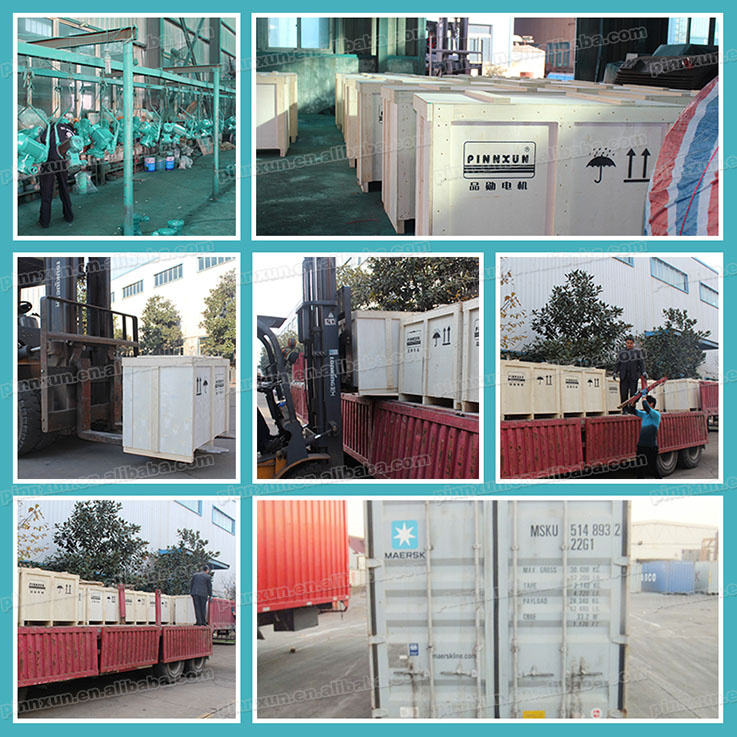

Packing & Shipping
Our Servies
WE ARE READY
Q: Do you offer OEM service?
A: Yes.
Q: What is your payment term?
A: 30% T/T in advance, 70% before delivery. Or irrevocable L/C.
Q: What is your lead time?
A: About 10-45 days after receiving deposit or original L/C.

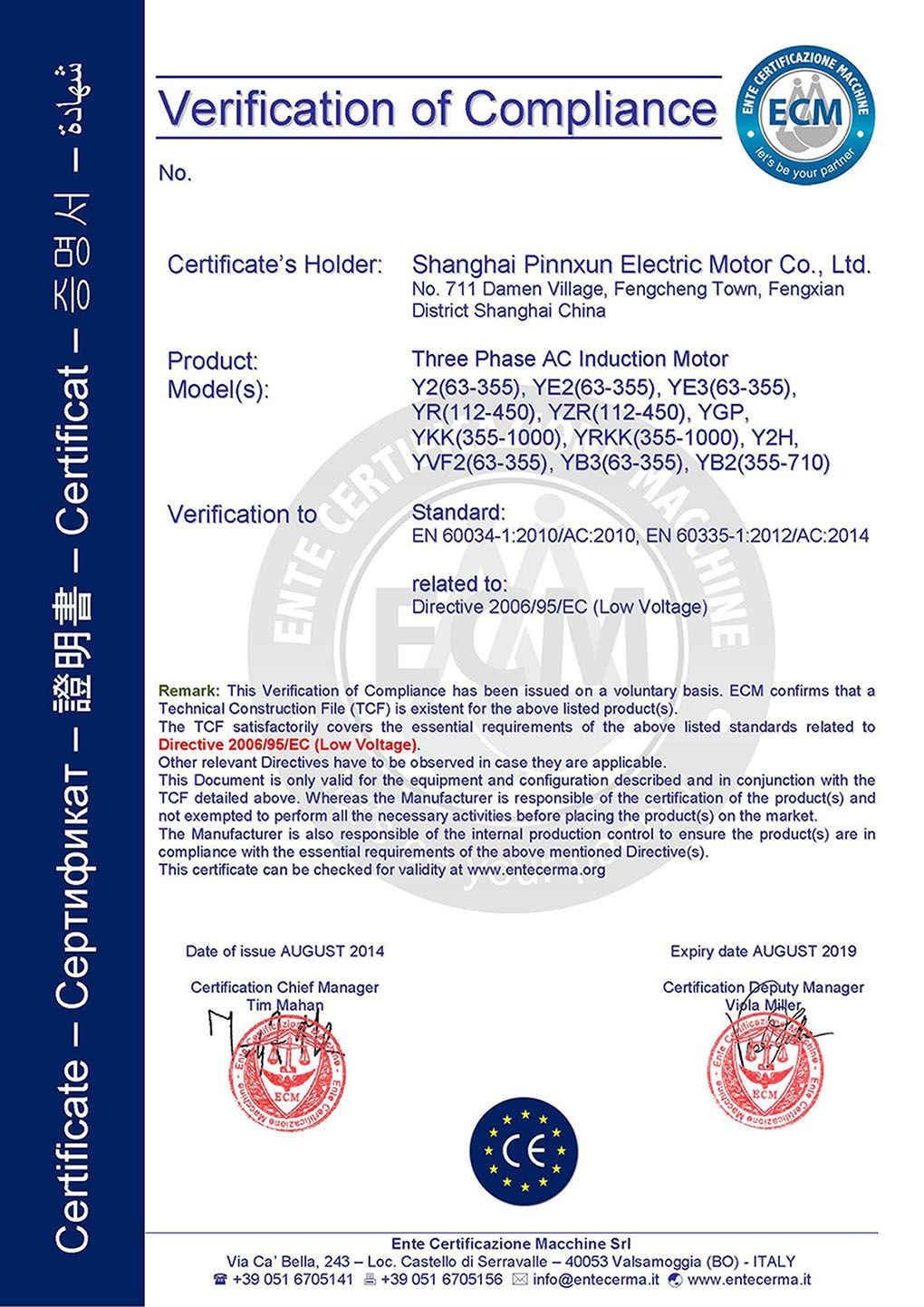

Q: What certifiicate do you have?
A: We have CE, ISO,CCC and so on.
WHY CHOOSE US
WHAT WE DO AT PINNXUN
- Stamping of lamination
- Rotor die-casting
- Winding and inserting - both manual and semi-automatically
- Vacuum varnishing
- Machining shaft, housing, end shields, etc
- Rotor balancing
- Painting - both wet paint and powder coating
- Motor assembly
- Packing
- Inspecting spare parts every processing
- 100% test after each process and final test before packing.
WHAT PINNXUN CAN DO FOR CUSTOMERS
- PINNXUN supplies standard products to customers.
- PINNXUN supplies standard products under customers' brands and packaging, etc
- PINNXUN R&D department develops any new products together with the customers.
| YB2 mining explosion proof motor Structure Description | |
YB2 series ac induction explosion proof motor mounting details:| Schematic diagram | | | | | | mounting type | B3 | B35 | B5 | V1 | | mounting Discribtion | frame with feet,end-shield without flange | frame with feet,end-shield with flange | frame without feet,end-shield with flange | frame without feet,end-shield with flange | | Suitable frame | H63-355 | H63-355 | H63-280 | H180-355 |
YB2 series motors are totally enclosed fan cold(TEFC). 5.bearing type-table 2 table 2| | | | | Horizontal | vertical | | motor frame | DE side | N-DE side | DE side | N-DE side | | 63 | 6201-2RZ/Z2 | 6201-2RZ/Z2 | 6201-2RZ/Z2 | 6201-2RZ/Z2 | | 71 | 6202-2RZ/Z2 | 6202-2RZ/Z2 | 6202-2RZ/Z2 | 6202-2RZ/Z2 | | 80 | 6204-2RZ/Z2 | 6204-2RZ/Z2 | 6204-2RZ/Z2 | 6204-2RZ/Z2 | | 90 | 6205-2RZ/Z2 | 6205-2RZ/Z2 | 6205-2RZ/Z2 | 6205-2RZ/Z2 | | 100 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | | 112 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | | 132 | 6208-2RZ/Z2 | 6208-2RZ/Z2 | 6208-2RZ/Z2 | 6208-2RZ/Z2 | | 160 | 6209-2RZ/Z2 | 6209-2RZ/Z2 | 6209-2RZ/Z2 | 6209-2RZ/Z2 | | 180 | 6211/Z2 | 6211/Z2 | 6211/Z2 | 6211/Z2 | | 200 | 6312/Z2 | 6312/Z2 | 6312/Z2 | 6312/Z2 | | 225(2P) | 6312/Z2 | 6312/Z2 | 6312/Z2 | 6312/Z2 | | 225(4-8P) | 6313/Z2 | 6212/Z2 | 6313/Z2 | 6312/Z2 | | 250(2P) | 6313/Z2/Z2 | 6313/Z1 | 6313/Z2 | 6313/Z1 | | 250(4-8P) | 6314/Z1 | 6213/Z1 | 6314/Z1 | 6313/Z1 | | 280(2P) | 6314/Z1 | 6313/Z1 | 6314/Z1 | 6313/Z1 | | 280(4P) | 6317/Z1 | 6313/Z1 | 6317/Z1 | 6313/Z1 | | 315(2P) | 6317/Z1 | 6317/Z1 | 6317/Z1 | 6317/Z1 | | 315(4-8P) | NU319 | 6319/Z1 | NU319 | 6319/Z1 | | 355(2P) | 6319/Z1 | 6319/Z1 | 6319/Z1 | 6319/Z1 | | 355(4-8P) | NU322 | 6322/Z1 | NU322/Z1 | 6322/Z1 |

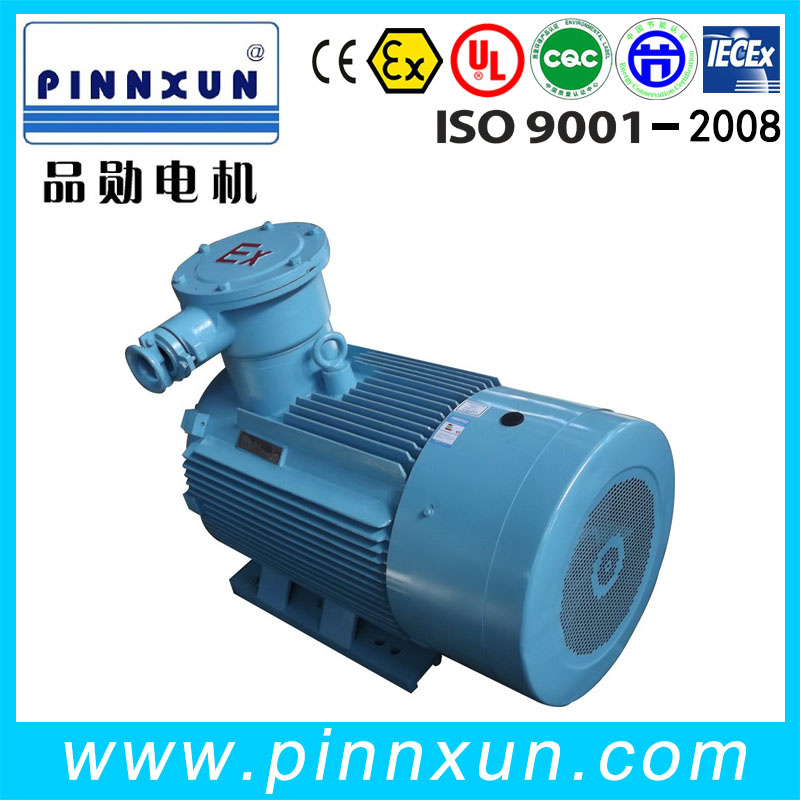

YB2 flame proof mining motor Pictures |
Shanghai Pinnxun Electric Motor Co., Ltd located in the Beautiful scenery, convenient transportation international metropolis, ----Shanghai. Is a modernized large scale enterprise for motor and control system manufacturing, R&D, sales and services. Pinnxun always take good faith, responsibility, carefulness and excellence as our management philosophy, committed to providing customers with superior quality products, perfect solutions and Advisory pre and after sales service.
Pinnxun Motor had passed the ISO9001-2008 quality control system certificate and European Union CE certificate. Company products was designed and manufactured strictly according to IEC and DIN standards of high efficiency, energy saving, economy, environmental protection requirments, Company have sellf-support right to import and export. Motors and had widely export to more than 40 countries including Europe, Australia, Southeast Asia, Middle East, Africa and other countries and regions. Companies continue to introduce advanced production technology, while continuing to improve their management level, To set up a solid foundation for the company' S development.
Products including Low voltage three phase AC motor, high voltage motor, large size synchronous motor, Russia GOST standard motors and DC motor, They are widely use in Electricity, Coal industry, Petro industry, Mining, Metallurgy, Railway industry, Transportation, Chemical, Paper making, Printing-Dyeing, industry, Navigation, Irrigation, Military and other high-tech areas. They are designed precision, long life, low noise, stable performance, low failure rate, high technology characteristics, they had win widely praised by global user in various fields, As our company' S rapid development, we plan to establish multiple business outlets in the nation' S major industrial cities and expand our sale department around the world.
We take Integrity as our fundamental, market as the guide, brand as the honor, quality as our life, provide our clients energy saving, environmental protection, safe, efficiency and first-class products. And quality pre-sale after-sales service, focus on creating "pinnxun "brand,
We warmly welcome customer to contact and visit us, we would like to establish stable and long terms relationships to support your business for mutual benefits.
