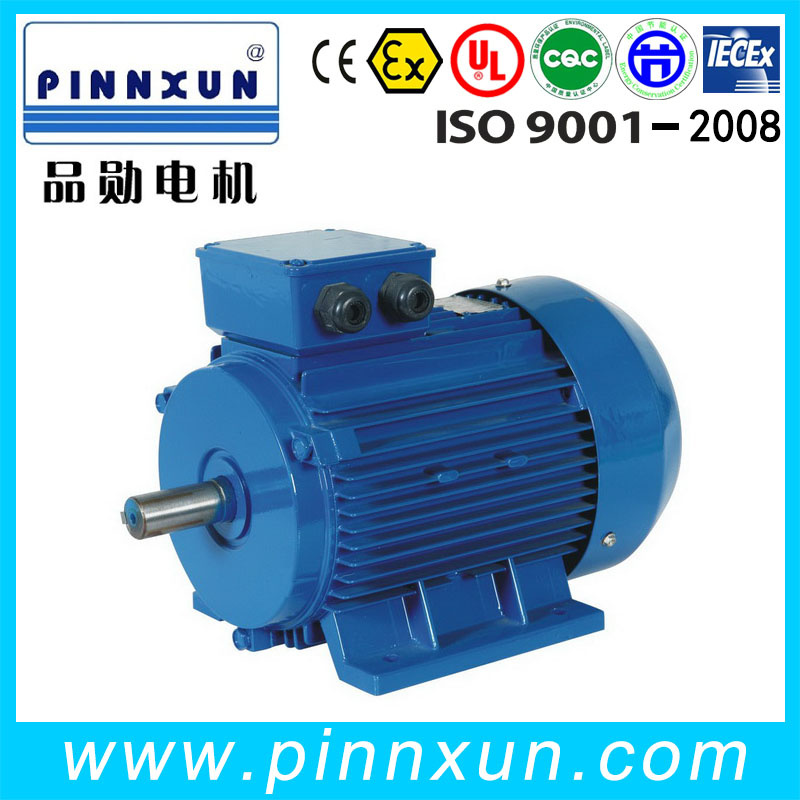

Y2 Cast Iron Asynchronous AC Electric Three Phase Induction Blower Axial Fan Water Pump Air Compressor Gear Box Motor
| Price: |
US $ 75-80/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
Y2 Cast iron asynchronous ac electric Three phase Induction Blower Axial Fan water pump air compressor gear box motor
certificate:IS09001-2008
power:0.12kw-355kw
pole:2 4 6 8 10
speed:3600-600
Product: Y Series(IP54)asynchronous induction motor
Feature and usage:
Y series three phase electric motor is designed in conformity with the relevant requirements of IEC and DIN42673 standards. It's totally enclosed and fan-cooling three-phase squirrel cage induction motors, having outstanding performance, such as high efficiency, energy-saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance, etc.
Y series motors are widely used in many places, where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc.
Motor Performance
Frame sizes: 63-315 2) Rated power: 0.12-200kw
Rated voltage: 220/380v,380/660v
Frequency: 50Hz, 60Hz
Protection class: IP44 ,IP54
Insulation class: B,F
Materials: aluminum Body (FRAME 63-160)
Cast iron body (FRAME 63-355)
EFF: EFF3, EFF2, EFF1
Poles: 2, 4, 6, 8
Cooling method: IC411 (total-enclosed fan-cooled type)
Mounting types: IMB3 ,IMB5,IMB35,IMB34,IMB14
Operating mode: S1
Connection: "Y" type for 3kW and downwards, "D"type for 4kW and upwards
Ambient temperature: -15C < θ < 40C
The altitude should be lower than 1, 000m
Relative humidity: Not higher than 90%
Special motors can be designed according to
Inner packing:
Frame 63-112: Foam boxes
Frame 132-315: Wooden boxes
Certification To Guarantee We are Good In Quality
Ordering Informations
1.Please indicate the motor type,rated output,rated voltage,rated frequency,synchronous speed,Explosion proof Mark,mounting type,rotation direction(view from the shaft extension side)Use of the environment(indoor or outside)If the user havn't point out the rotation and environment,normailly we think is CW roration and used indoor.
2.when user have special requirments,For example:Dispose the stator,bearing explosion proof and bearing temperature sensors,space heater,Plateau use,specical frequency,mounting size change,special output,the user must ,order can be confirm after signing the technical agreement with engneering department .
3.The catalogue is only fpr reference,and there may be variations.
4.This range of motor can also be made into Variable-Frequency motors,the range of frequency of which is 0-100HZ,the output and overall dimensions should be confirm separately.

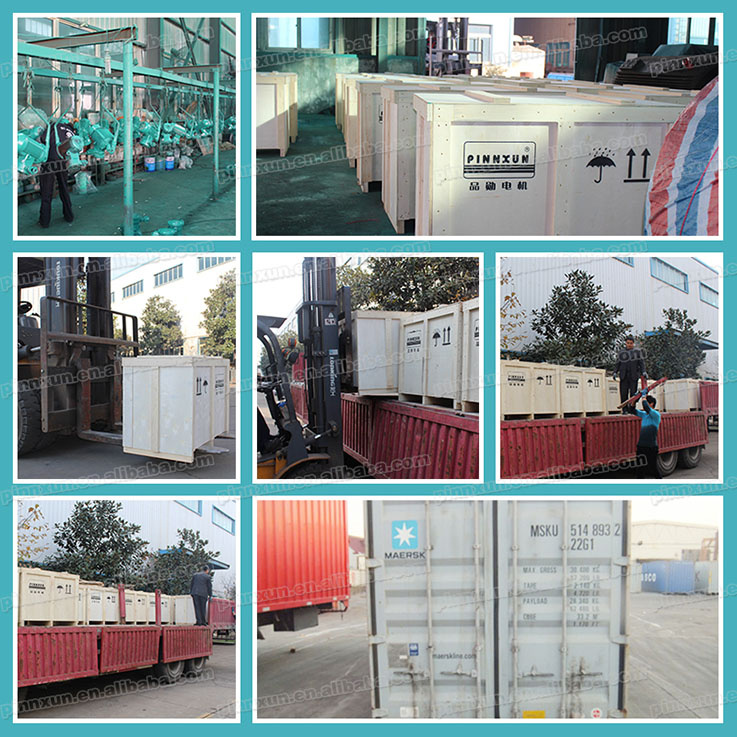

Strong Package Ensure Motor safe enough for Ship or Truck Transportation.
| Motor Performance | |
Ambient Temperature: -15°C~40°C
Altitude: not exceed 1000 Meter
Rated Voltage: 380V or any voltage between 220-760V
Rated Frequency: 50Hz/60Hz
Protection Class: IP44, IP54, IP55
Insulation Class: B/F
Cooling Method: IC0141
Working Duty: S1(Continuous)
Humidity: Lower than 90%
Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above
|
| Structure Description | |
Y2 series ac induction motor mounting details:| Schematic diagram | | | | | | mounting type | B3 | B35 | B5 | V1 | | mounting Discribtion | frame with feet,end-shield without flange | frame with feet,end-shield with flange | frame without feet,end-shield with flange | frame without feet,end-shield with flange | | Suitable frame | H63-355 | H63-355 | H63-280 | H180-355 |
Y2 series motors are totally enclosed fan cold(TEFC). 5.bearing type-table 2 table 2| | | | | Horizontal | vertical | | motor frame | DE side | N-DE side | DE side | N-DE side | | 63 | 6201-2RZ/Z2 | 6201-2RZ/Z2 | 6201-2RZ/Z2 | 6201-2RZ/Z2 | | 71 | 6202-2RZ/Z2 | 6202-2RZ/Z2 | 6202-2RZ/Z2 | 6202-2RZ/Z2 | | 80 | 6204-2RZ/Z2 | 6204-2RZ/Z2 | 6204-2RZ/Z2 | 6204-2RZ/Z2 | | 90 | 6205-2RZ/Z2 | 6205-2RZ/Z2 | 6205-2RZ/Z2 | 6205-2RZ/Z2 | | 100 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | | 112 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | 6206-2RZ/Z2 | | 132 | 6208-2RZ/Z2 | 6208-2RZ/Z2 | 6208-2RZ/Z2 | 6208-2RZ/Z2 | | 160 | 6209-2RZ/Z2 | 6209-2RZ/Z2 | 6209-2RZ/Z2 | 6209-2RZ/Z2 | | 180 | 6211/Z2 | 6211/Z2 | 6211/Z2 | 6211/Z2 | | 200 | 6312/Z2 | 6312/Z2 | 6312/Z2 | 6312/Z2 | | 225(2P) | 6312/Z2 | 6312/Z2 | 6312/Z2 | 6312/Z2 | | 225(4-8P) | 6313/Z2 | 6212/Z2 | 6313/Z2 | 6312/Z2 | | 250(2P) | 6313/Z2/Z2 | 6313/Z1 | 6313/Z2 | 6313/Z1 | | 250(4-8P) | 6314/Z1 | 6213/Z1 | 6314/Z1 | 6313/Z1 | | 280(2P) | 6314/Z1 | 6313/Z1 | 6314/Z1 | 6313/Z1 | | 280(4P) | 6317/Z1 | 6313/Z1 | 6317/Z1 | 6313/Z1 | | 315(2P) | 6317/Z1 | 6317/Z1 | 6317/Z1 | 6317/Z1 | | 315(4-8P) | NU319 | 6319/Z1 | NU319 | 6319/Z1 | | 355(2P) | 6319/Z1 | 6319/Z1 | 6319/Z1 | 6319/Z1 | | 355(4-8P) | NU322 | 6322/Z1 | NU322/Z1 | 6322/Z1 |
|
| Prod Model: |
Y2-200L1-2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
50Hz |
| Protection: |
IP55 |
| Insulation Class: |
F |
| Voltage: |
as User Requirment |
| Wire: |
100% Copper Wire |
| Temperature Rise: |
B |
| Delivery: |
in 15days |
| Warranty: |
One Year |
| Usage: |
Air Compressor Motor |
| Output Power: |
30kw |
| Number Of Stator: |
Three-Phase |
| Function: |
Driving |
| Certification: |
ISO9001 CE CCC |
| Brand: |
Pinnxun |
Shanghai Pinnxun Electric Motor Co., Ltd located in the Beautiful scenery, convenient transportation international metropolis, ----Shanghai. Is a modernized large scale enterprise for motor and control system manufacturing, R&D, sales and services. Pinnxun always take good faith, responsibility, carefulness and excellence as our management philosophy, committed to providing customers with superior quality products, perfect solutions and Advisory pre and after sales service.
Pinnxun Motor had passed the ISO9001-2008 quality control system certificate and European Union CE certificate. Company products was designed and manufactured strictly according to IEC and DIN standards of high efficiency, energy saving, economy, environmental protection requirments, Company have sellf-support right to import and export. Motors and had widely export to more than 40 countries including Europe, Australia, Southeast Asia, Middle East, Africa and other countries and regions. Companies continue to introduce advanced production technology, while continuing to improve their management level, To set up a solid foundation for the company' S development.
Products including Low voltage three phase AC motor, high voltage motor, large size synchronous motor, Russia GOST standard motors and DC motor, They are widely use in Electricity, Coal industry, Petro industry, Mining, Metallurgy, Railway industry, Transportation, Chemical, Paper making, Printing-Dyeing, industry, Navigation, Irrigation, Military and other high-tech areas. They are designed precision, long life, low noise, stable performance, low failure rate, high technology characteristics, they had win widely praised by global user in various fields, As our company' S rapid development, we plan to establish multiple business outlets in the nation' S major industrial cities and expand our sale department around the world.
We take Integrity as our fundamental, market as the guide, brand as the honor, quality as our life, provide our clients energy saving, environmental protection, safe, efficiency and first-class products. And quality pre-sale after-sales service, focus on creating "pinnxun "brand,
We warmly welcome customer to contact and visit us, we would like to establish stable and long terms relationships to support your business for mutual benefits.
