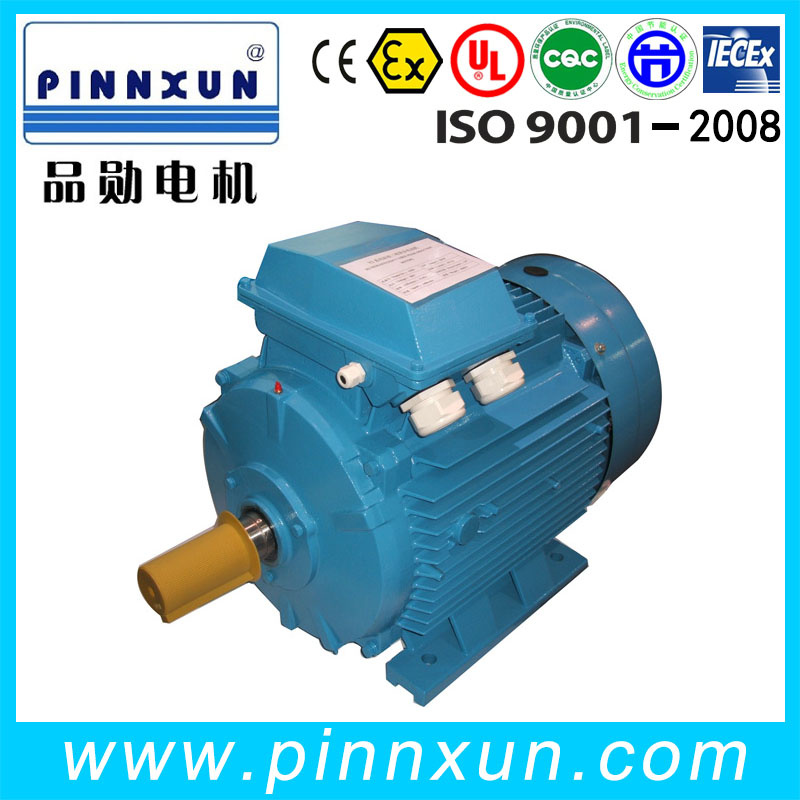

YE2 YE3(IE2 IE3) High efficiency motor
IE2 IE3 high efficiency asynchronous ac electric Three phase Induction water pump air compressor gear box squirrel cage motor
Feature and usage
YX3 series high efficiency three phase motors is high efficiency energy-saving motor.Efficiency index of motor reachedGB18613'middle-small motor efficiency limited value and efficiency grade'grade 2 efficiency standard,according to IE2/EFF1 efficiency index of IEC standard.Our production advance in domestic and reached advanced level in international.We are on top of the name list that can get the CHINA certification for energy conservation product.
YX3 series three phase electric motors have a lot of advantages including high efficiency, energy saving, large starting torque, excellent performance, low noise, low vibration, high reliability, easy operation & servicing etc. While the mounting dimension and rated output power of YX3 series electric motors are in conformity with IEC standard.
YX3 Series motors are widely used as drive mechanism of various machineries, such as pumps, compressors, machining equipments, transportation system, agricultural mechanism, and food processing mechanism etc. Its operating conditions are the same as Y2 series three phase electric motors.

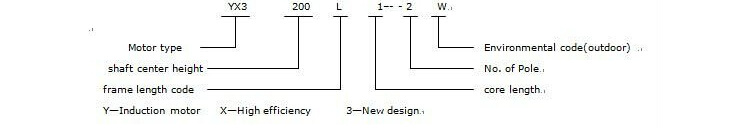

Model Explanation
Power range:0.12-315KW
Rated Voltage: 380V 400V 440V 690V
Speed;3000rpm 1500rpm 1000rpm 750rpm 600rpm
Protection Class: IP55
Ambient Temperature: -15°C~40°C
Altitude: not exceed 1000 Meter
Rated Frequency: 50Hz/60Hz
Insulation Class: F
Temprature rise: B
Working Duty: S1(Continuous)
Connection: Star-connection for up to 3kW; Delta-connection for 4kW and above
Company Information
Packing & ShippingOur Servies
WE ARE READY
Q: Do you offer OEM service?
A: Yes.
Q: What is your payment term?
A: 30% T/T in advance, 70% before delivery. Or irrevocable L/C.
Q: What is your lead time?
A: About 10-45 days after receiving deposit or original L/C.
Q: What certifiicate do you have?

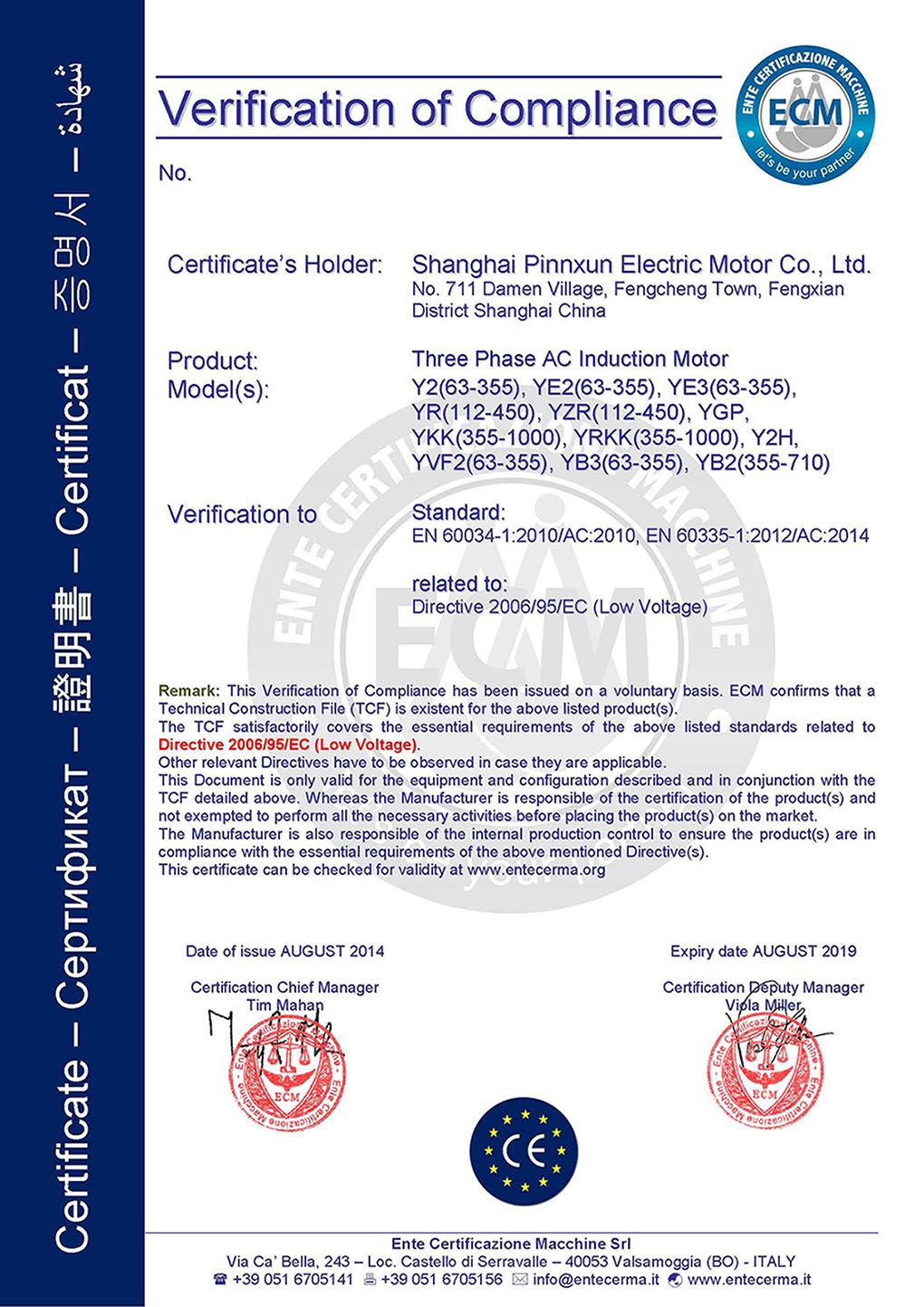

A: We have CE, ISO,CCC and so on.
WHY CHOOSE US
WHAT WE DO AT PINNXUN

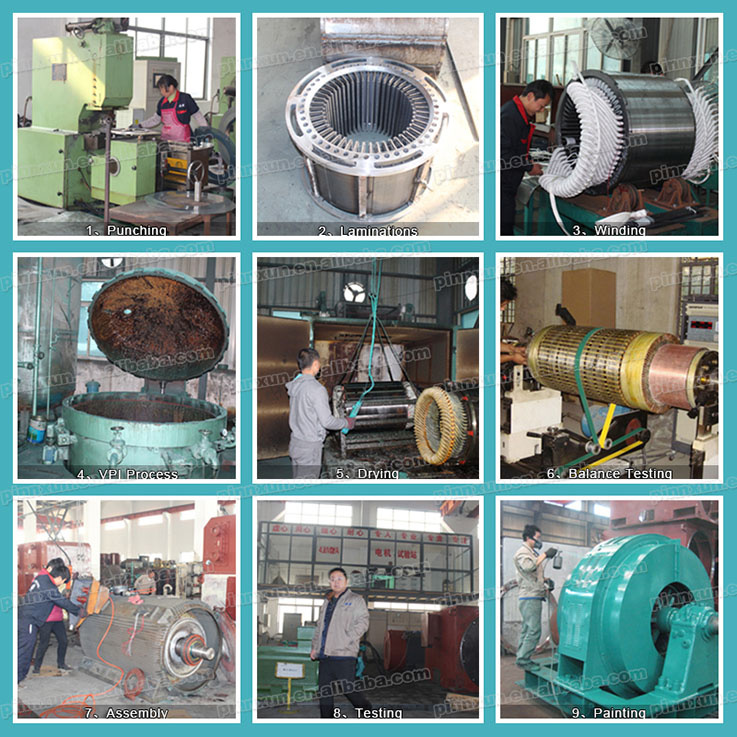

- Stamping of lamination
