Yttw Flexible Fireproof Fire Resistant Cable
| Price: |
US $ 0.8-30/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T |
Standards:
JG/T313-2011,BS6387-2013,GB12666,IEC60331, IEC60502, BS7870-5
APPLICATION :
Fire extinguishing system
Shopping mall, department store, hospital, school, stadium, exhibition center, train station, airport, subway, commercial buildings, hotels, places with dense population, iron and steel enterprises, High building..
High temperature places, such as Steel,glass workshop
Flammable and explosive places,such as petrochemical,chemical,hosptical,Nuclear power and water industry
enterprise.
Ships and warships

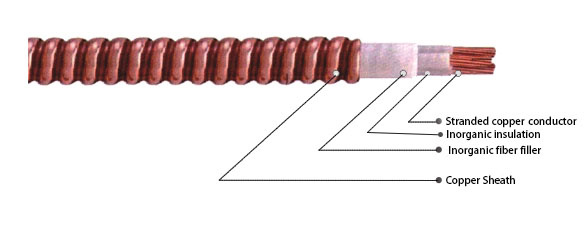

Structure:

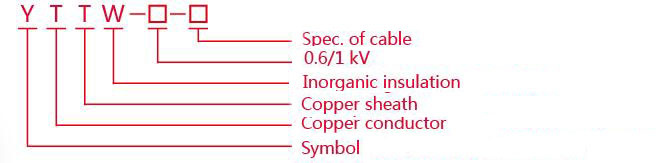

Model of fireproof Cable
Test Method for Fire resistance:
| Test Item | BS6387-2013 | GB/T19216 | IEC60331 |
| Refractory Test | A Class 650ºC 3 hours
B Class 750ºC 3 hours
C Class 950ºC 3 hours
S Class 950ºC 20Mins | B Class 750ºC-800ºC 90Mins | 750ºC 3Hours |
| Spray Test | W Class 650ºC 15Mins | N/A | |
| Impact Test | X Class 650ºC 15Mins
Y Class 750ºC 15Mins
Z Class 950ºC 15Mins | N/A | |
Character:
High temperature and fire resistance,can bear 950ºC burning for 3 hours.
Continous length can reach 2000M
Same fire proof class for joint
Multi-core available
High Overload capacity
Flexible
Easy Installation
enviorment protection
Moisture and Radiation Resistance,no electromagnetic interference when energized
Specification:
| Model | Description | Voltage | Core | Nom.Cross sectional area mm2 |
| YTTW | Strand Copper conductor,inorganic insulation copper sheath flexible fireproof cable | 450/750V | 1-4 | 1-300 |
| YTTWV | Strand Copper conductor,inorganic insulation copper sheath PVC Outer sheath flexible fireproof cable |
| DW-YTTWY | Strand Copper conductor,inorganic insulation copper sheath LSFH Outer sheath flexible fireproof cable |
| Prod Model: |
YTTW/YTTWV/DW-YTTWY |
| Rated Voltage: |
500/750kv |
| Refer Standard: |
BS6387-2013,GB12666 |
| Core: |
1-4 |
| Type: |
Insulated |
| Conductor Type: |
Stranded |
| Conductor Material: |
Copper |
| Certification: |
CCC |
| Application: |
Flame Retardant |
| Sheath Material: |
Copper |
| Insulation Material: |
Inorganic |
| Brand: |
Jl |
Jiangsu Jinling Special cable Co., Ltd. Was founded in 1998. It is a comprehensive cable enterprise integrating research, development, production, sales and service. The company is located in nanjing, jiangsu province, the industrial concentration area, with convenient transportation. The registered trademark of the company is "Yong Heng", which covers an area of 30000 square meters, with a building area of 80, 000 square meters and annual production capacity of USD 190 million. The company has 159 employees, including 48 professional and technical talents.
The company is a high-tech manufacturing enterprise with high technical content, complete quality management system and advanced inspection methods. The company has the domestic first-class production line and testing equipment, the technical force is strong. Main products are: Medium and low Voltage power cables, control cables, instrument cables, Aluminum Alloy cable, bare conductor, Aerial bundled cable, electrical wire, compensation cable, high temperature resistant cable, fire resistant cable, fire retardant cable, wind cable, Marine cable, anti-corrosion, waterproof cable., are widely used in electric power, metallurgy, petroleum, chemical industry, automobile, papermaking, coal mine, shipbuilding, ports, lifting, building materials, pharmaceutical and other industries. Company strictly according to GB, IEC, CE, As, UL, VDS standards, and pass ISO9001 certification, to provide customers with a variety of specifications of wire and cable.
Excellent quality, perfect management and first-class service is our permanent puisuit.
