Single Core 600/1000V XLPE Insulation LSZH Sheath Fire Resistant Cables
| Price: |
US $ 0.8-90/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
WDZ-BY |
| Rated Voltage: |
0.6/1kv |
| Refer Standard: |
IEC 60502-1,BS 8573 |
| Core: |
1 |
| Type: |
Insulated |
| Conductor Type: |
Solid |
| Conductor Material: |
Copper |
| Insulation Material: |
XLPE |
| Certification: |
CCC |
| Application: |
Flame Retardant |
| Sheath Material: |
LSZH |
| Brand: |
Jl |
Product Description
Single Core XLPE Insulation LSZH Sheath Fire Resistant Cables Standards:
IEC 60228, IEC 60502-1,BS 8573
Single Core XLPE Insulation LSZH Sheath Fire Resistant Cables FIRE PERFORMANCE:
Flame Retardance (Single Vertical Wire Test) IEC60332-1
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) IEC60332-3
Halogen Free IEC 60754-2
Minimum Smoke Emission IEC 61034-2
Spark Test BS 6387
Single Core XLPE Insulation LSZH Sheath Fire Resistant Cables APPLICATION :
These XLPE insulated and LSZH sheathed cables are generally used for fi xed installation.
Suitable for building wiring, especially in areas where smoke and fume emissions may
cause a potential threat to life.
Single Core XLPE Insulation LSZH Sheath Fire Resistant Cables VOLTAGE Rating:
600/1000V

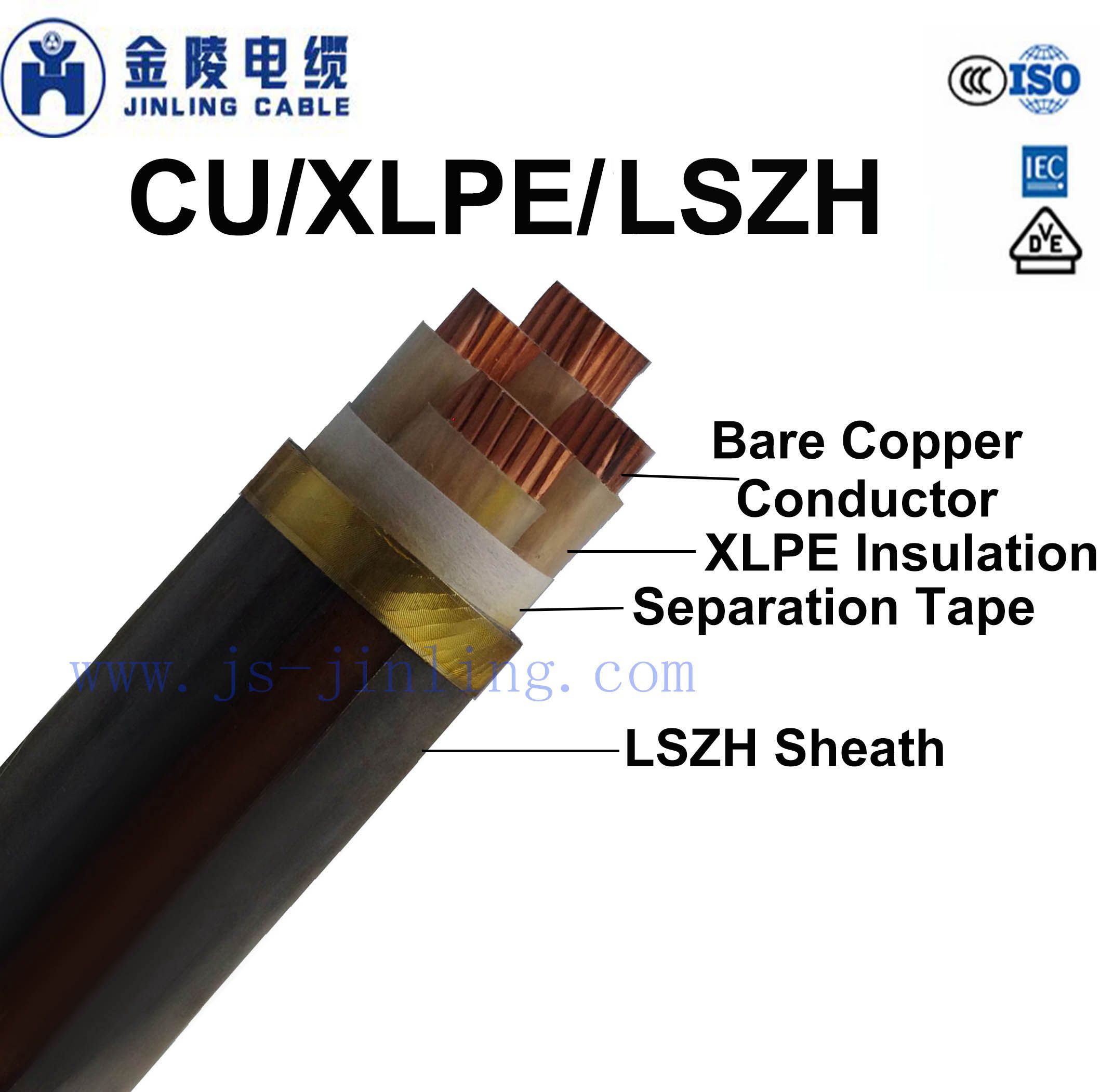

CABLE CONSTRUCTION:
Conductor: Annealed copper conductor, strand according to IEC 60228 class 2.
Insulation: Cross-linked polyethylene (XLPE) XLPE
Inner Covering option:The laid up cores may be coverd by an optional separating tape.
Outer Sheath: Thermoplastic LSZH
Outer Sheath option: UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti
termite properties can be offered as option.
Single Core XLPE Insulation LSZH Sheath Fire Resistant Cables Physical AND THERMAL PROPERTIES
Maximum temperature range during operation (XLPE): 90°C
Maximum short circuit temperature (5 Seconds): 250°C
Minimum bending radius:
Circular copper conductors(up to 25mm2): 4 x Overall Diameter
Circular copper conductors(above 25mm2): 6 x Overall Diameter
Shaped copper conductors: 8 x Overall Diameter
CONSTRUCTION PARAMETERS:
| Conductor | Nominal Insulation Thickness | Nominal Inner Covering Thickness | Nominal Sheath Thickness |
| No. of CoresxCross Section | Class of Conductor |
| No.x mm2 | mm | mm | mm |
| 1x1.5 | 2 | 0.7 | 0.4 | 1.4 |
| 1x2.5 | 2 | 0.7 | 0.4 | 1.4 |
| 1x4.0 | 2 | 0.7 | 0.4 | 1.4 |
| 1x6.0 | 2 | 0.7 | 0.4 | 1.4 |
| 1x10 | 2 | 0.7 | 0.4 | 1.4 |
| 1x16 | 2 | 0.7 | 0.4 | 1.4 |
| 1x25 | 2 | 0.9 | 0.4 | 1.4 |
| 1x35 | 2 | 0.9 | 0.4 | 1.4 |
| 1x50 | 2 | 1 | 0.6 | 1.4 |
| 1x70 | 2 | 1.1 | 0.6 | 1.4 |
| 1x95 | 2 | 1.1 | 0.6 | 1.5 |
| 1x120 | 2 | 1.2 | 0.8 | 1.5 |
| 1x150 | 2 | 1.4 | 0.8 | 1.6 |
| 1x185 | 2 | 1.6 | 0.8 | 1.6 |
| 1x240 | 2 | 1.7 | 1 | 1.7 |
| 1x300 | 2 | 1.8 | 1 | 1.8 |
| 1x400 | 2 | 2 | 1.2 | 1.9 |
| 1x500 | 2 | 2.2 | 1.2 | 2 |
| 1x630 | 2 | 2.4 | 1.4 | 2.2 |
| 1x800 | 2 | 2.6 | 1.6 | 2.3 |
| 1x1000 | 2 | 2.8 | 1.6 | 2.4 |
