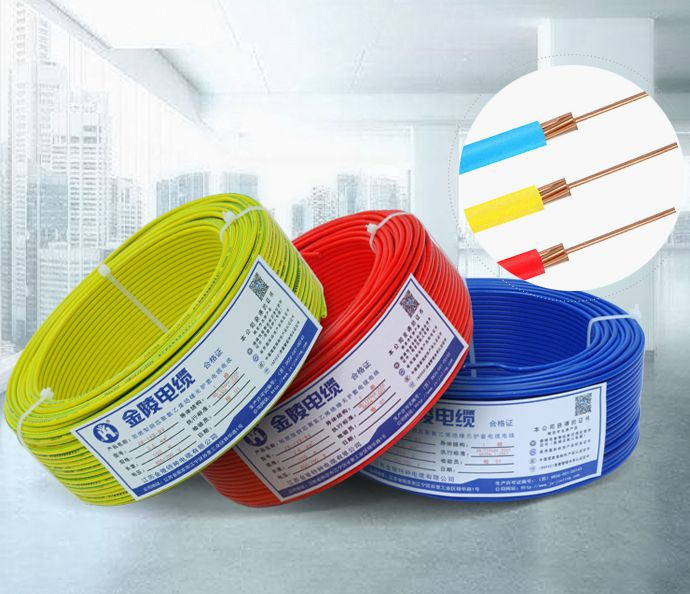

PVC Insulated Electrical Cable Wire
| Price: |
US $ 0.5-30/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
PVC Insulated Electrical Cable Wire STANDARD:
BS6004 IEC 60227
PVC Insulated Electrical Cable Wire Application range:
The products is suitable for powerplant,fixed wire or flexible connection for electrical application with rated voltage of 450/750V and below.
PVC Insulated Electrical Cable WireTechnical Data:
Rated Voltage : 450/750 ,300/500V and 300/300V
Test voltage: 3000V/2000V/1200V
Max working temperature of the conductor:
60227 IEC 07(BV-90): 90°C
60227 IEC 08(RV90): 90°C
60227 IEC 57 (RVV-90):90°C
60227 IEC 56 (RVV-90):90°C
RVP 90: 90°C
Other Model:70°CMinimum bending radius:
Up to 10mm²: 3xoverall diameter
10mm² to 25mm²: 4xoverall diameter
Above 25mm²: 6xoverall diameter
| Description | Model
Type | Rated
Voltage
(Volt) | No. of Core | Cross section of conductor
(mm2) | Application
Main application
|
| Single core solid conductor non-sheathed cable for general purpose | 60227 IEC 01 (BV) | 450/750 | 1 | 1.5-400 | Used for fixed installation in air or wire conduit |
| Sing-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 70ºC | 60227 IEC 05 (BV) | 300/500 | 1 | 0.5-1.0 |
| Sing-core non-sheathed cable with solid conductor for internal wiring for a conductor temperature of 90ºC | 60227 IEC 07 (BV-90) | 300/500 | 1 | 0.5-2.5 | Used fox fixed installation in air or wire conduit at high temperature circumstances |
| Light duty PVC sheathed cable | 60227 IEC 10 (BVV) | 300/500 | 2,3,4,5 | 1.5-35 | Used for fixed installation in air or wire conduit in case of high mechanical protection and wet circumstances |
| Copper core PVC insulated PVC sheathed flat type cable | BVVB | 300/500 | 2,3 | 0.75-10 |
| Single core flexible conductor non-sheathed cable for general purpose | 60227 IEC 02 (RV) | 450/750 | 1 | 1.5-240 | Mainly used for medium or light duty movable electrical appliances, instruments, household appliances ,power, lighting system and so on in flexing application. |
| Sing-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 70ºC | 60227 IEC 06 (RV) | 300/500 | 1 | 0.5-1.0 |
| Light duty PVC-sheathed flexible cord | 60227 IEC 52 (RVV) | 300/300 | 2,3 | 0.75-2.5 |
| Flat type non-sheathed flexible cord | 60227 IEC 42(RVB) | 300/300 | 2 | 0.75-2.5 |
| Copper core PVC insulated stranding cords for connecting | RVS | 300/300 | 2 | 0.31-2.51 |
| Ordinary PVC-sheathed flexible cord | 60227 IEC 53 (RVV) | 300/500 | 2,3-24 | 0.5-2.5 | Mainly used for medium or light duty movable electrical appliances, instruments, household appliances, power, lighting system and so on in fixing and heat resistant application. |
| Light duty PVC-sheathed flexible cord for a conductor temperature of 90ºC | 60227 IEC 56 (RVV-90) | 300/300 | 2,3 | 0.5-0.75 |
| Ordinary PVC-sheathed flexible cord for a conductor temperature of 90ºC | 60227 IEC 57 (RVV-90) | 300/500 | 2,3-24 | 0.75-2.5 |
| Sing-core non-sheathed cable with flexible conductor for internal wiring for a conductor temperature of 90ºC | 60227 IEC 08 (RV-90) | 300/500 | 1 | 0.5-2.5 |
| Copper core PVC-sheathed flexible cables | BVR | 450/750 | 1 | 2.5-70 | Fixed installation in flexible application |
| Oil-proof PVC sheathed screened flexible cable | 60227 IEC 74(RVVYP) | 300/500 | 2-60 | 0.5-2.5 | It is used as the connecting line of various electrical appliances, instruments and automatic devices in harsh environments (such as acid, alkali and oil-water low temperature conditions) |
| Oil-proof PVC sheathed non-screened flexible cable | 60227 IEC 75(RVVY) | 300/500 | 2-60 | 0.5-2.5 |
| Copper conductor PVC insulated cable | BV | 300/500 | 1 | 0.75-1 | |
| Aluminum conductor PVC insulated cable | BLV | 450/750 | 1 | 2.5-630 | |
| Copper conductor PVC insulated flexible cable | BVR | 450/750 | 1 | 2.5-240 | |
| Copper conductor PVC insulated and sheathed round cable | BVV | 300/500 | 1 | 0.75-10 | |
| Aluminum conductor PVC insulated flexible cable | BLVV | 300/500 | 1 | 2.5-10 | |
| Copper conductor PVC insulted and sheathed flat cable | BVVB | 300/500 | 2,3 | 0.75-10 | |
| Aluminum conductor insulted and sheathed flat cable | BLVVB | 300/500 | 2,3 | 2.5-10 | |
| Copper conductor PVC insulted screened flexible cord | RVP | 300/300 | 1,2 | 0.08-6 | |
| Copper conductor PVC insulted screened flexible cord for a conductor temperature of 90ºC | RVP-90 | 300/300 | 1,2 | 0.08-6 | |
| Copper conductor PVC insulted and sheathed screened flexible cord | RVVP | 300/300 | 1,2-24 | 0.3-6 | |
We can also manufacturer Losh,XLPE,flame retardant,fire resistance,corrosion resistant wire base on customs demand.

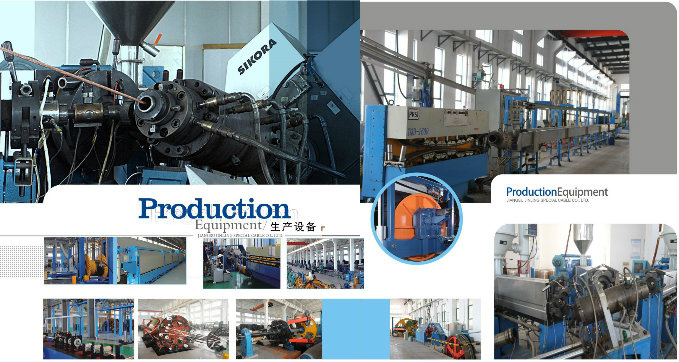

Production Equipment:

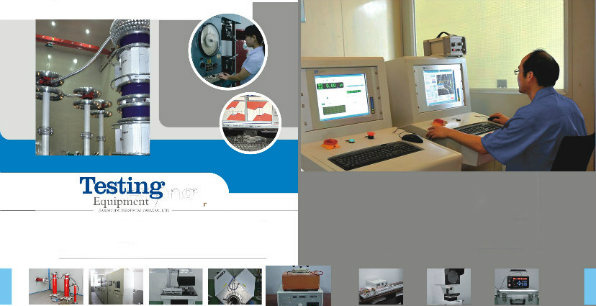

Test equipment
| Prod Model: |
BV, BLVV, BLV, RVP-90 |
| Insulation Colour: |
Green, Black, White, Yellow, Red, Grey |
| Type: |
Insulated |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Solid or Fine |
| Application: |
Powerplant,Fixed Wire or Flexible Connection |
| Conductor Material: |
Copper or Aluminum |
| Material Shape: |
Round or Flat Wire |
| Range Of Application: |
Powerplant,Fixed Wire or Flexible Connection |
| Brand: |
Jl |
Jiangsu Jinling Special cable Co., Ltd. Was founded in 1998. It is a comprehensive cable enterprise integrating research, development, production, sales and service. The company is located in nanjing, jiangsu province, the industrial concentration area, with convenient transportation. The registered trademark of the company is "Yong Heng", which covers an area of 30000 square meters, with a building area of 80, 000 square meters and annual production capacity of USD 190 million. The company has 159 employees, including 48 professional and technical talents.
The company is a high-tech manufacturing enterprise with high technical content, complete quality management system and advanced inspection methods. The company has the domestic first-class production line and testing equipment, the technical force is strong. Main products are: Medium and low Voltage power cables, control cables, instrument cables, Aluminum Alloy cable, bare conductor, Aerial bundled cable, electrical wire, compensation cable, high temperature resistant cable, fire resistant cable, fire retardant cable, wind cable, Marine cable, anti-corrosion, waterproof cable., are widely used in electric power, metallurgy, petroleum, chemical industry, automobile, papermaking, coal mine, shipbuilding, ports, lifting, building materials, pharmaceutical and other industries. Company strictly according to GB, IEC, CE, As, UL, VDS standards, and pass ISO9001 certification, to provide customers with a variety of specifications of wire and cable.
Excellent quality, perfect management and first-class service is our permanent puisuit.
