N2xy 0.6/1kv Low Voltage XLPE Insulated Power Cable IEC 60520-1
| Price: |
US $ 0.3-80/Meter |
| Min Order: |
500/Meter |
| Pay Type: |
L/C,T/T |

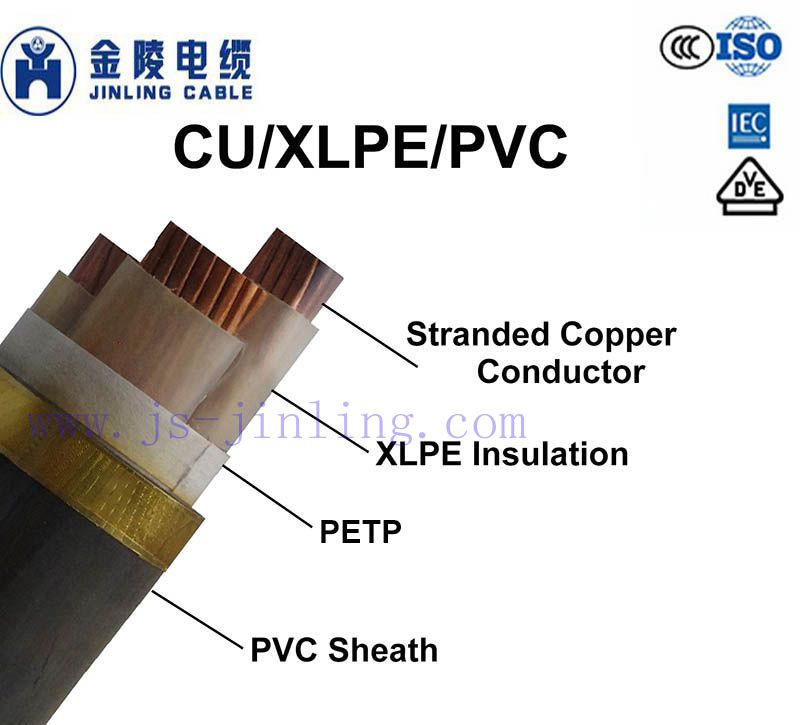

N2XY 0.6/1kv Low Voltage XLPE Insulated Power Cable Construction:
Solid or Stranded Copper Conductor, XLPE Insulation, PVC SheathedN2XY 0.6/1kv Low Voltage XLPE Insulated Power Cable Application:Power distribution cables in power stations, industrial installations and switchgears. For fi xed installation underground, in interior premises, cable ducts, in the open air, in the ground or concrete, in water - as permitted by the local building regulations - if no risk of any mechanical damage is to be expected.
N2XY 0.6/1kv Low Voltage XLPE Insulated Power Cable Technical Data:Conductor:.solid Conductor, Class 1 or Strand Copper Conductor, Class 2
Rated voltage: 0,6/1 kV
Test voltage: 4KV
Max. conductor temperature: +90 °C
Max. short-circuit temperature: +250 °
Temperature range for handling: -30 up to +90 °C
Min. temperature for laying and manipulation: -5 °C

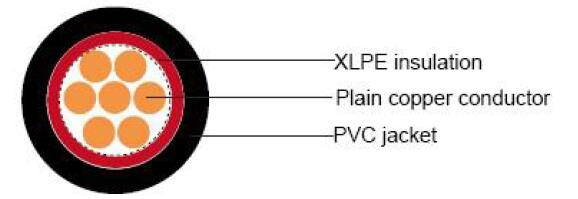

Insulation resistance: 20 MΩ x kmCable Parameter:Single core
Nominal Cross
Section | Diameter of Conductor
(Approx.) | Nominal Insulation
Thickness | Nominal Sheath
Thickness | Overall Diameter
(Approx.) |
| mm² | mm | mm | mm | mm |
| 1x1.5 | 1.4 | 0.7 | 1.4 | 5.6 |
| 1x2.5 | 1.8 | 0.7 | 1.4 | 6 |
| 1x4 | 2.3 | 0.7 | 1.4 | 6.5 |
| 1x6 | 2.8 | 0.7 | 1.4 | 7 |
| 1x10 | 3.6 | 0.7 | 1.4 | 7.8 |
| 1x16 | 4.5 | 0.7 | 1.4 | 8.7 |
| 1x25 | 5.6 | 0.9 | 1.4 | 10.2 |
| 1x35 | 6.7 | 0.9 | 1.4 | 11.3 |
| 1x50 | 8 | 1 | 1.4 | 12.8 |
| 1x70 | 9.4 | 1.1 | 1.4 | 14.4 |
| 1x95 | 11 | 1.1 | 1.5 | 16.1 |
| 1x120 | 12.4 | 1.2 | 1.5 | 17.8 |
| 1x150 | 13.8 | 1.4 | 1.6 | 19.8 |
| 1x185 | 15.3 | 1.6 | 1.6 | 21.8 |
| 1x240 | 17.5 | 1.7 | 1.7 | 24.4 |
| 1x300 | 19.5 | 1.8 | 1.8 | 26.7 |
| 1x400 | 22.6 | 2 | 1.9 | 30.5 |
| 1x500 | 25.2 | 2.2 | 2 | 33.7 |
| 1x630 | 28.3 | 2.4 | 2.2 | 37.4 |
| 1x800 | 31.9 | 2.6 | 2.3 | 41.7 |

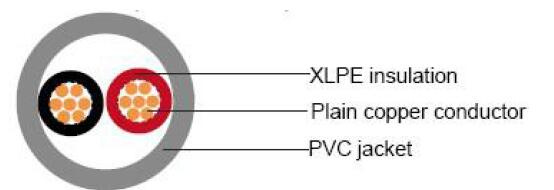

Two Cores
Nominal Cross
Section | Diameter of Conductor
(Approx.) | Nominal Insulation
Thickness | Nominal Sheath
Thickness | Overall Diameter
(Approx.) |
| mm² | mm | mm | mm | mm |
| 2x1.5 | 1.4 | 0.7 | 1.8 | 9.2 |
| 2x2.5 | 1.8 | 0.7 | 1.8 | 10 |
| 2x4 | 2.3 | 0.7 | 1.8 | 11 |
| 2x6 | 2.8 | 0.7 | 1.8 | 12 |
| 2x10 | 3.6 | 0.7 | 1.8 | 13.6 |
| 2x16 | 4.5 | 0.7 | 1.8 | 15.4 |
| 2x25 | 5.6 | 0.9 | 1.8 | 18.4 |
| 2x35 | 6.7 | 0.9 | 1.8 | 20.6 |
| 2x50 | 8 | 1 | 1.8 | 23.6 |
| 2x70 | 9.4 | 1.1 | 1.8 | 26.8 |
| 2x95 | 11 | 1.1 | 1.9 | 30.2 |
| 2x120 | 12.4 | 1.2 | 2 | 33.7 |
| 2x150 | 13.8 | 1.4 | 2.2 | 37.5 |
| 2x185 | 15.3 | 1.6 | 2.3 | 41.6 |
| 2x240 | 17.5 | 1.7 | 2.5 | 46.7 |
| 2x300 | 19.5 | 1.8 | 2.6 | 51.4 |
| 2x400 | 22.6 | 2 | 2.9 | 58.9 |

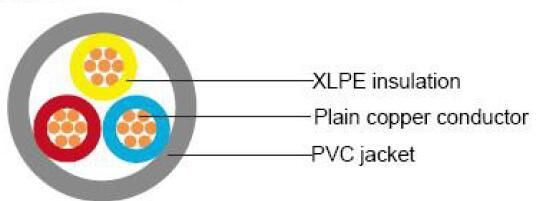

Three Cores
Nominal Cross
Section | Diameter of Conductor
(Approx.) | Nominal Insulation
Thickness | Nominal Sheath
Thickness | Overall Diameter
(Approx.) |
| mm² | mm | mm | mm | mm |
| 3x1.5 | 1.4 | 0.7 | 1.8 | 9.6 |
| 3x2.5 | 1.8 | 0.7 | 1.8 | 10.5 |
| 3x4 | 2.3 | 0.7 | 1.8 | 11.6 |
| 3x6 | 2.8 | 0.7 | 1.8 | 12.6 |
| 3x10 | 3.6 | 0.7 | 1.8 | 14.4 |
| 3x16 | 4.5 | 0.7 | 1.8 | 16.3 |
| 3x25 | 5.6 | 0.9 | 1.8 | 19.5 |
| 3x35 | 6.7 | 0.9 | 1.8 | 21.9 |
| 3x50 | 8 | 1 | 1.8 | 25.1 |
| 3x70 | 9.4 | 1.1 | 1.9 | 28.7 |
| 3x95 | 11 | 1.1 | 2 | 32.4 |
| 3x120 | 12.4 | 1.2 | 2.1 | 36.1 |
| 3x150 | 13.8 | 1.4 | 2.3 | 40.3 |
| 3x185 | 15.3 | 1.6 | 2.4 | 44.6 |
| 3x240 | 17.5 | 1.7 | 2.6 | 50.2 |
| 3x300 | 19.5 | 1.8 | 2.7 | 55.2 |
| 3x400 | 22.6 | 2 | 3 | 63.3 |

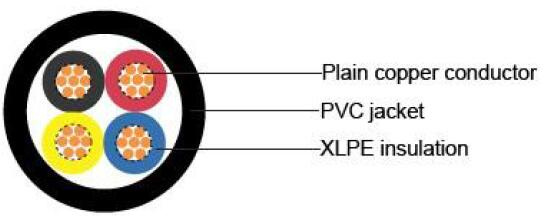

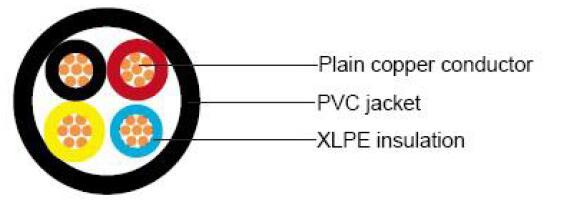

Four Cores
Nominal Cross
Section | Diameter of Conductor
(Approx.) | Nominal Insulation
Thickness | Nominal Sheath
Thickness | Overall Diameter
(Approx.) |
| mm² | (3)mm | (1)mm | (3)mm | (1)mm | mm | mm |
| 3x16/10 | 4.5 | 3.6 | 0.7 | 0.7 | 1.8 | 17.5 |
| 3x25/16 | 5.6 | 4.5 | 0.9 | 0.7 | 1.8 | 21.2 |
| 3x35/16 | 6.7 | 4.5 | 0.9 | 0.7 | 1.8 | 23.8 |
| 3x50/25 | 8 | 5.6 | 1 | 0.9 | 1.8 | 27.5 |
| 3x70/35 | 9.4 | 6.7 | 1.1 | 0.9 | 2 | 31.7 |
| 3x95/50 | 11 | 8 | 1.1 | 1 | 2.1 | 35.8 |
| 3x120/70 | 12.4 | 9.4 | 1.2 | 1.1 | 2.3 | 39.9 |
| 3x150/70 | 13.8 | 9.4 | 1.4 | 1.1 | 2.4 | 44.6 |
| 3x185/95 | 15.3 | 11 | 1.6 | 1.1 | 2.6 | 49.5 |
| 3x240/120 | 17.5 | 12.4 | 1.7 | 1.2 | 2.8 | 55.7 |
| 3x300/150 | 19.5 | 13.8 | 1.8 | 1.4 | 3 | 61.4 |
| 3x400/185 | 22.6 | 15.3 | 2 | 1.6 | 3.2 | 70.4 |
Five Cores
Nominal Cross
Section | Diameter of Conductor
(Approx.) | Nominal Insulation
Thickness | Nominal Sheath
Thickness | Overall Diameter
(Approx.) |
| mm² | mm | mm | mm | mm |
| 4x1.5 | 1.4 | 0.7 | 1.8 | 10.4 |
| 4x2.5 | 1.8 | 0.7 | 1.8 | 11.3 |
| 4x4 | 2.3 | 0.7 | 1.8 | 12.5 |
| 4x6 | 2.8 | 0.7 | 1.8 | 13.7 |
| 4x10 | 3.6 | 0.7 | 1.8 | 15.7 |
| 4x16 | 4.5 | 0.7 | 1.8 | 17.8 |
| 4x25 | 5.6 | 0.9 | 1.8 | 21.5 |
| 4x35 | 6.7 | 0.9 | 1.8 | 24.1 |
| 4x50 | 8 | 1 | 1.8 | 27.8 |
| 4x70 | 9.4 | 1.1 | 2 | 32 |
| 4x95 | 11 | 1.1 | 2.1 | 36.1 |
| 4x120 | 12.4 | 1.2 | 2.3 | 40.2 |
| 4x150 | 13.8 | 1.4 | 2.4 | 44.9 |
| 4x185 | 15.3 | 1.6 | 2.6 | 49.8 |
| 4x240 | 17.5 | 1.7 | 2.8 | 56 |
| 4x300 | 19.5 | 1.8 | 3 | 61.7 |
| 4x400 | 22.6 | 2 | 3.2 | 70.7 |
| Prod Model: |
N2XY |
| Rated Voltage: |
0.6/1 Kv |
| Number Of Core: |
1-5 |
| Refer Standard: |
IEC 60502-1 |
| Application: |
Power Station |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
DC & AC |
| Insulation Material: |
XLPE |
| Certification: |
CE |
| Wire Core Material: |
Copper |
| Model: |
N2xy |
| Brand: |
Jl |
